Frame set

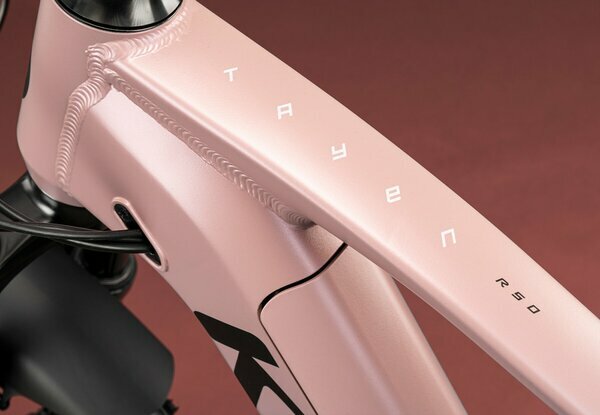

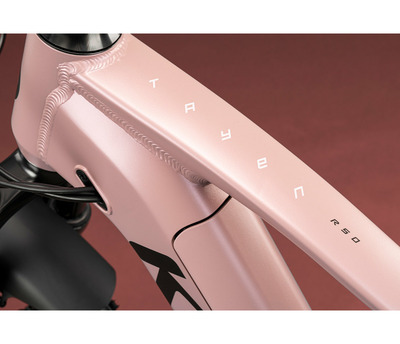

frame KELLYS TAYEN R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5" tapered HT, 12x148 mm Boost thru axle
fork SR SUNTOUR Raidon 34 LOR DS (27.5") Boost, 120 mm, air / 15 mm thru axle
frame size S
Drive
motor PANASONIC GX Ultimate, 95 Nm, 36 V
battery KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
switch unit PANASONIC

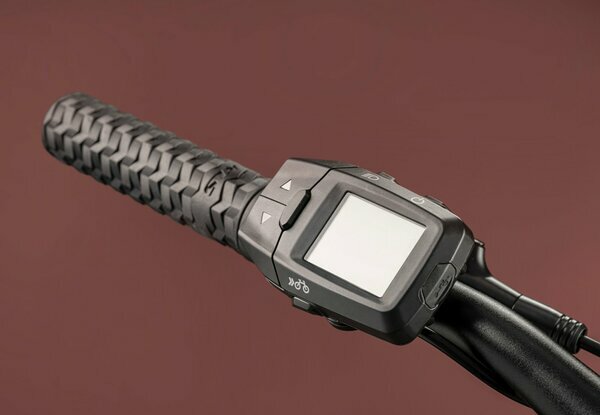

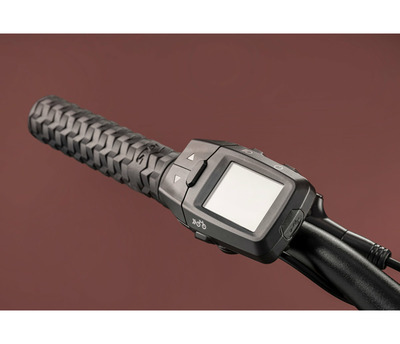

computer display PANASONIC Bluetooth® 5.0 navigation Side Color Display
crankset MIRANDA Delta (36T) - length 170 mm
rear derailleur SHIMANO Cues U6000 (direct mount)
shifters SHIMANO Cues SL-U6000-10 Rapidfire Plus
speed 10
cassette sprocket SHIMANO Linkglide CS-LG300-10 (11-48T)
chain SHIMANO Linkglide CN-LG500
pedals plastic
Brakes
brakes SHIMANO MT200 Hydraulic Disc
brake levers SHIMANO BL-MT200
brake rotors 180 mm front / 180 mm rear
Wheels
hubs SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Valor 3 Disc 584x30 (32 holes)
spokes stainless steel black
tyres SCHWALBE Nobby Nic Performance 65-584 (27.5"x2.60) ADDIX, folding
thru axle SR SUNTOUR 15x110 mm front / NOVATEC 12x181 mm rear
Cockpit
head parts FSA 1.5 semi-integrated
stem KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / lenght 45 mm
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
grips KLS Poison OneLockon
seat post KLS Active - diam 30.9 mm / length 350 mm

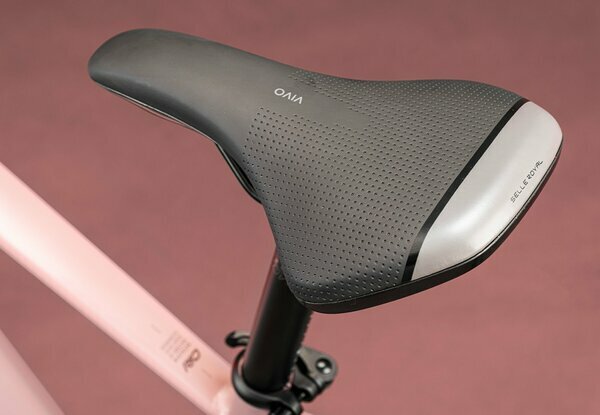

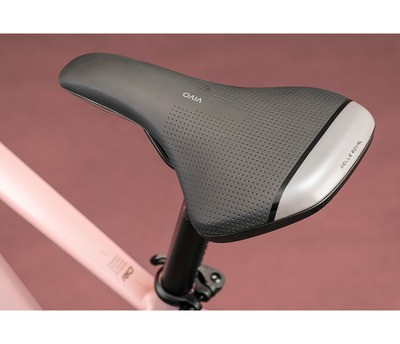

saddle SELLE ROYAL Vivo
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
