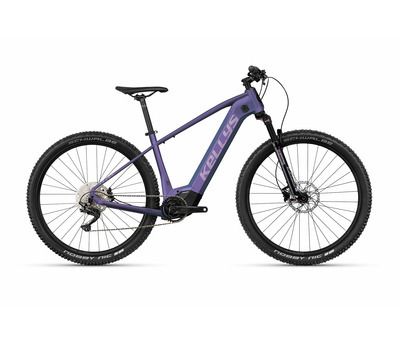

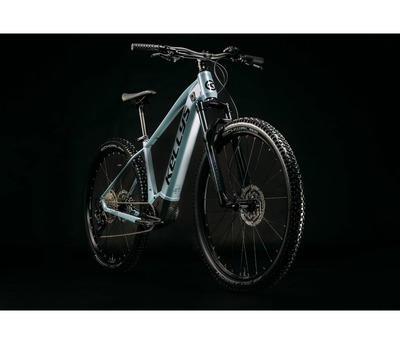

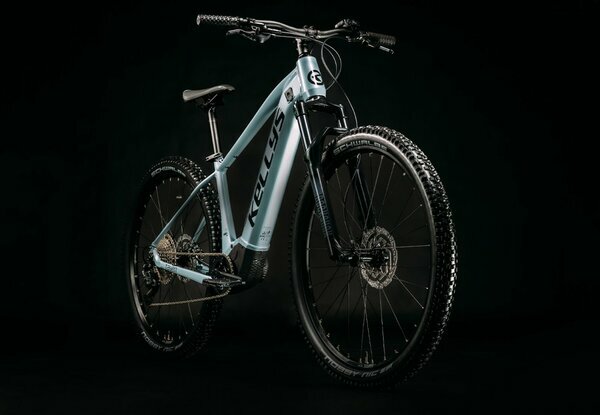

TAYEN R50
P MAGIC PINK 27.5" 725Wh

Women's mountain e-bike

Search for a dealer

Frame set

frame frame

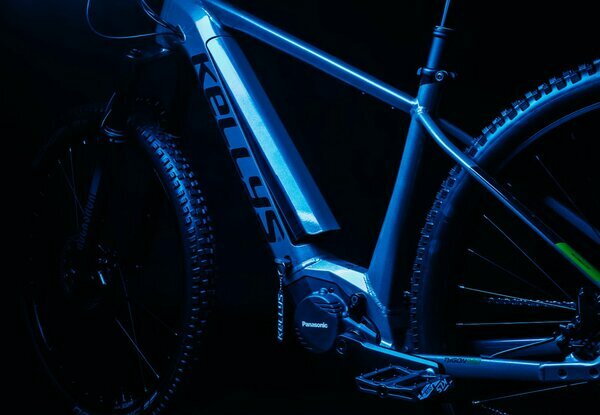

KELLYS TAYEN R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5" tapered HT, 12x148 mm Boost thru axle
fork fork
SR SUNTOUR Raidon 34 LOR DS (27.5") Boost, 120 mm, air / 15 mm thru axle
frame size frame size
S

Drive

motor motor

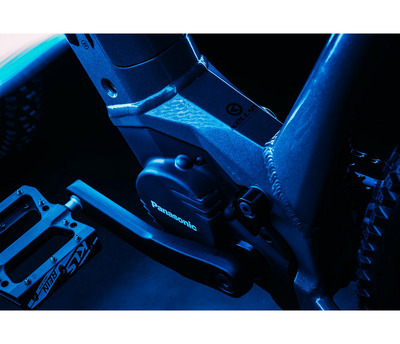

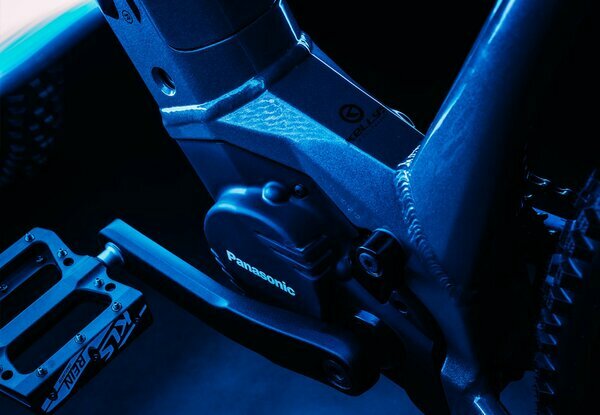

PANASONIC GX Ultimate, 95 Nm, 36 V
battery battery

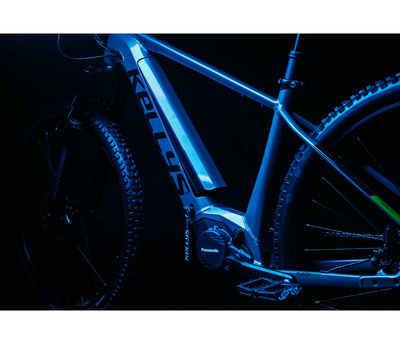

KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
switch unit switch unit
PANASONIC
computer display computer display

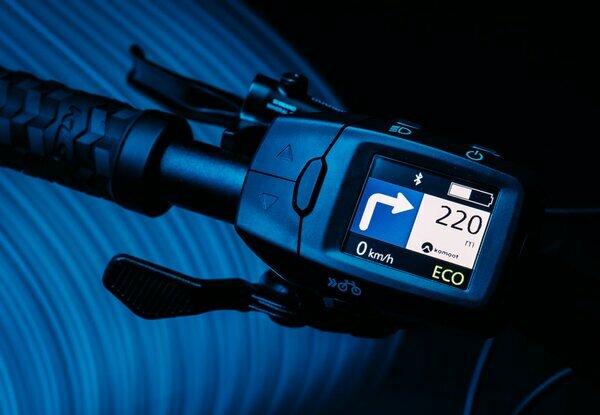

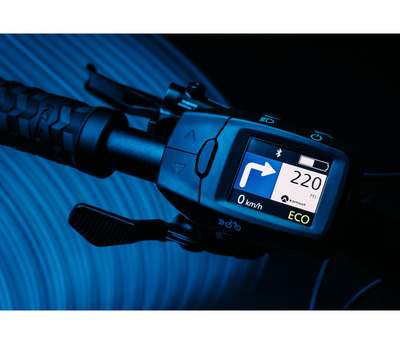

PANASONIC Bluetooth® 5.0 navigation Side Color Display
crankset crankset
MIRANDA Delta (36T) - length 170 mm
rear derailleur rear derailleur
SHIMANO Cues U6000 (direct mount)
shifters shifters
SHIMANO Cues SL-U6000-10 Rapidfire Plus
speed speed
10
cassette sprocket cassette sprocket
SHIMANO Linkglide CS-LG300-10 (11-48T)
chain chain
SHIMANO Linkglide CN-LG500
pedals pedals
plastic

Brakes

brakes brakes
SHIMANO MT200 Hydraulic Disc
brake levers brake levers
SHIMANO BL-MT200
brake rotors brake rotors
180 mm front / 180 mm rear

Wheels

hubs hubs
SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims rims
KLS Valor 3 Disc 584x30 (32 holes)
spokes spokes
stainless steel black
tyres tyres
SCHWALBE Nobby Nic Performance 65-584 (27.5"x2.60) ADDIX, folding
thru axle thru axle
SR SUNTOUR 15x110 mm front / NOVATEC 12x181 mm rear

Cockpit

head parts head parts
FSA 1.5 semi-integrated
stem stem
KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / lenght 45 mm
handlebar handlebar

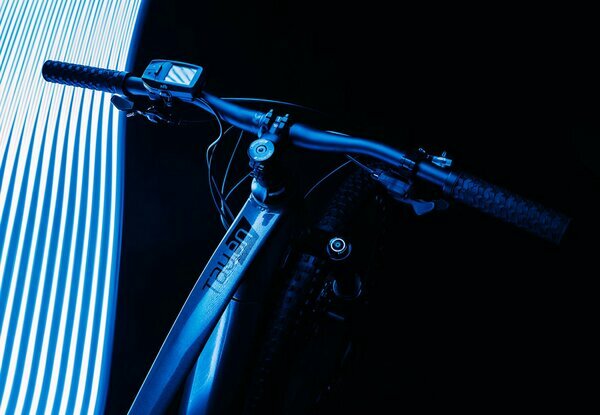

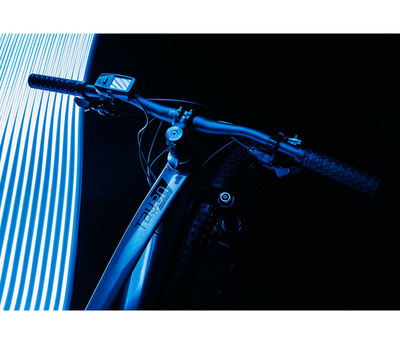

KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
grips grips
KLS Poison OneLockon
seat post seat post
KLS Active - diam 30.9 mm / length 350 mm
saddle saddle
SELLE ROYAL Vivo

Veľkosť rámu TAYEN R50 P MAGIC PINK 27.5" 725Wh

Geometria TAYEN R50 P MAGIC PINK 27.5" 725Wh

We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
