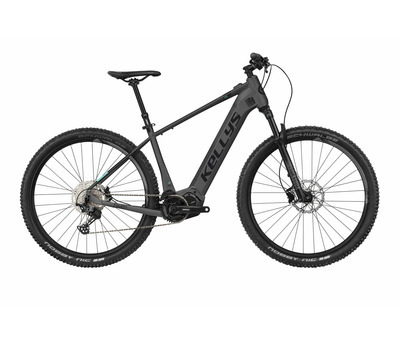

TAYEN R90 SH 29" 725 Wh
Women's mountain e-bike
Frame set
frame KELLYS TAYEN R series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT, 12x148 mm Boost thru axle / Made in EU
fork ROCK SHOX Recon GOLD RL (29) Boost, 120 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle
frame size M / L
Drive
motor SHIMANO STEPS E7000, 36 V
battery KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
computer display SHIMANO SC-E5000 cycle computer with assist switch
crankset SHIMANO E6100 (36T) - length 170 mm
rear derailleur SHIMANO SLX M7100 (direct mount)
shifters SHIMANO Deore SL-M6100-IR Rapidfire Plus (I-Spec EV)
speed 12
cassette sprocket SHIMANO CS-M6100-12 (10-51T)
chain SHIMANO CN-M6100
Brakes
brakes SHIMANO Deore MT410 Hydraulic Disc
brake levers SHIMANO Deore BL-M4100
brake rotors 180 mm front / 180 mm rear
Wheels
hubs SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Valor 3 Disc 622x30 (32 holes)
spokes stainless steel black
tyres SCHWALBE Nobby Nic Performance 60-622 (29x2.40) ADDIX
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / NOVATEC 12x148 mm rear
Cockpit
head parts FSA 1.5 semi-integrated
stem KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / lenght 45 mm
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
grips KLS Poison OneLockon
seat post EXAform JAG1 Remote Telescopic - diam 30.9 mm / length 485 mm, travel 150 mm
saddle SELLE ROYAL Vivo
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
