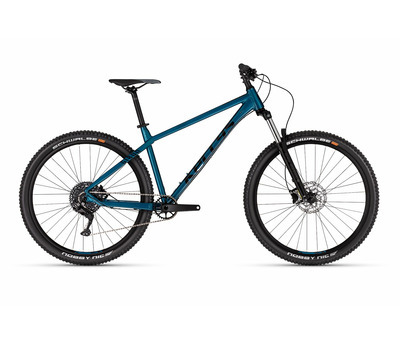

GIBON 10 29"
Trail bike
Frame set
frame KELLYS Dynamic Trail 29, tapered HT, internal routing, 12x148 mm Boost thru axle
fork SR SUNTOUR XCM34 (29) Boost, 130 mm, coil spring / 15 mm thru axle
frame size M / L
Drive
crankset SAMOX (32T) - length 175 mm
rear derailleur SHIMANO Deore M5120 (direct mount)
shifters SHIMANO Deore M4100-R Rapidfire Plus
speed 10
cassette sprocket SUNRACE MS2-10 (11-46T)
chain KMC X10 EL (110 links)
b.b.parts SAMOX cartridge
pedals KLS Flat - plastic platform
Brakes
brakes SHIMANO MT200 Hydraulic Disc
brake levers SHIMANO BL-MT200
brake rotors 180 mm front / 180 mm rear
Wheels
hubs SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Draft Disc 622x21 (32 holes)
spokes stainless steel black
tyres SCHWALBE Nobby Nic Performance 60-622 (29x2.35) ADDIX
thru axle SR SUNTOUR 15x110 mm front / NOVATEC 12x170 mm rear
Cockpit
head parts 1.5 integrated
stem KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / lenght 45 mm
handlebar KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / šírka 760 mm
grips kraton
seat post KLS Active - diam 30.9 mm / length 400 mm
saddle KLS Avenger
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
