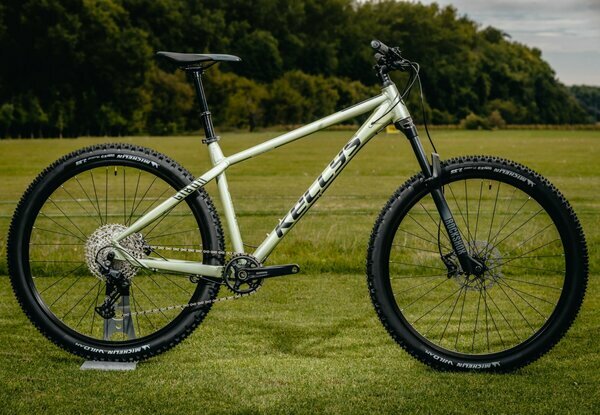

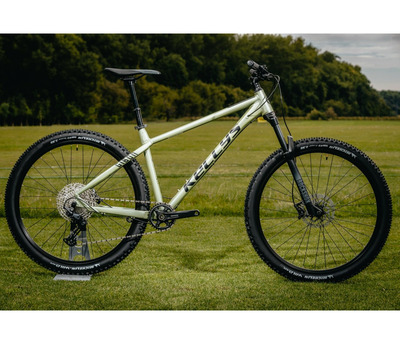

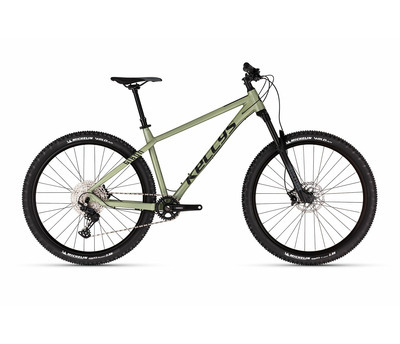

GIBON 30 29"
Trail bike
Frame set

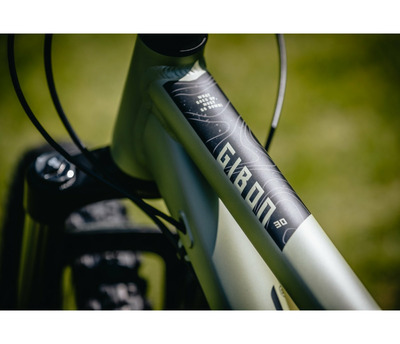

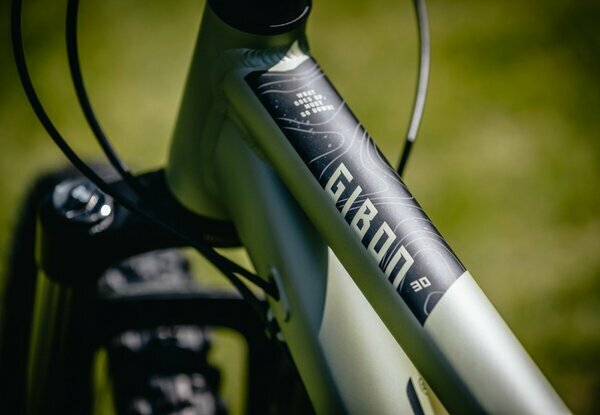

frame KELLYS Dynamic Trail 29, tapered HT, internal routing, 12x148 mm Boost thru axle
fork ROCK SHOX Recon Silver RL (29) Boost, 140 mm, Solo Air / Motion Control / Maxle Stealth 15 mm thru axle
frame size M / L

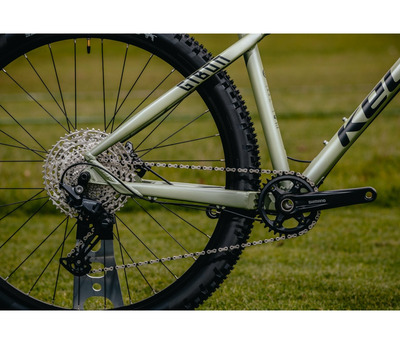

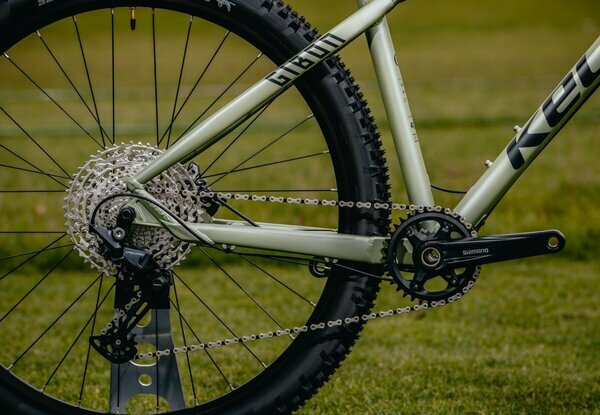

Drive
crankset SHIMANO Deore MT510-1 (32T) - length 175 mm
rear derailleur SHIMANO Deore M6100 (direct mount)
shifters SHIMANO Deore M6100-R Rapidfire Plus
speed 12
cassette sprocket SHIMANO CS-M6100-12 (10-51T)
chain KMC X12 (114 links)
b.b.parts SRAM DUB PressFit
pedals KLS Flat - plastic platform
Brakes
brakes SHIMANO Deore MT410 Hydraulic Disc
brake levers SHIMANO Deore BL-M4100
brake rotors 180 mm front / 180 mm rear
Wheels
hubs SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Valor 3 Disc 622x30 (32 holes)
spokes stainless steel black
tyres MICHELIN Wild AM Competition Line 60-622 (29"x2.35) Tubeless Ready or KENDA Amrak 61-622 (29"x2.40)
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / NOVATEC 12x148 mm rear

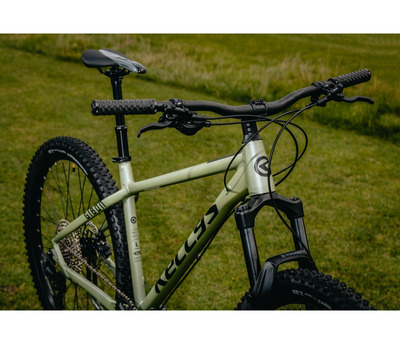

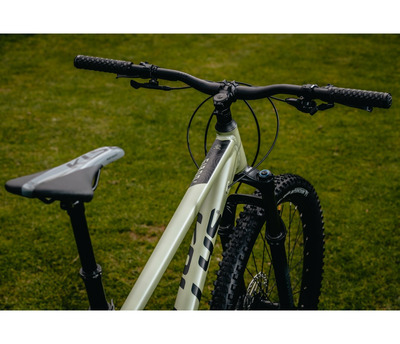

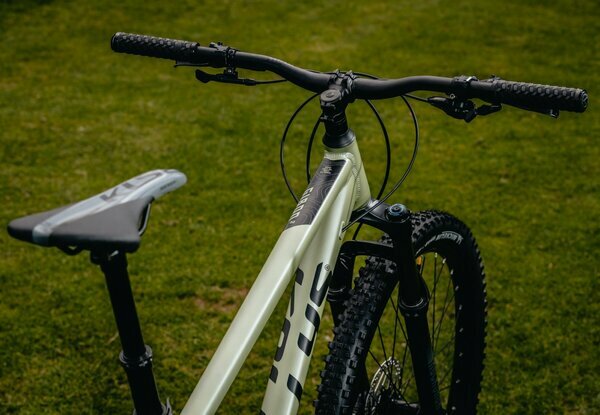

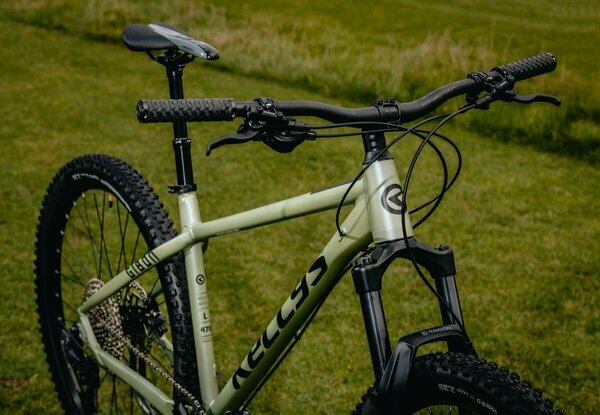

Cockpit
head parts 1.5 integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
handlebar KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / šírka 760 mm
grips KLS Poison
seat post KS Rage-i Remote Telescopic - diam 30.9 mm / length 442 mm, travel 150 mm
saddle KLS Avenger
