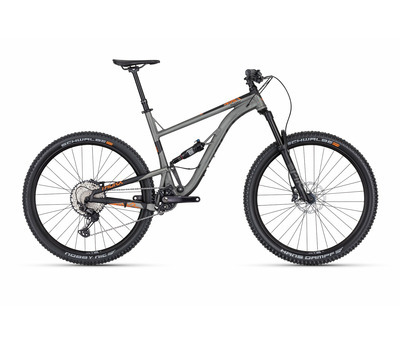

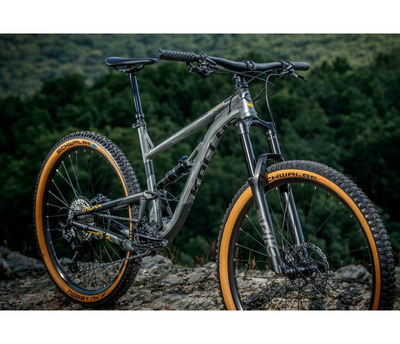

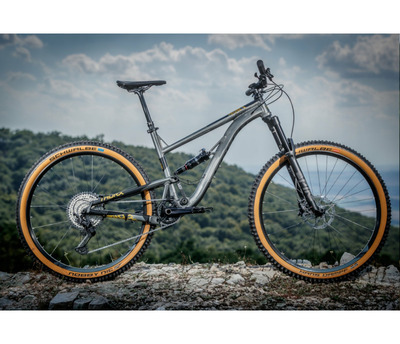

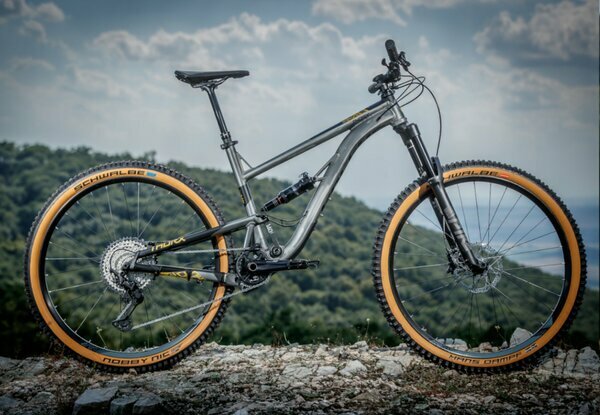

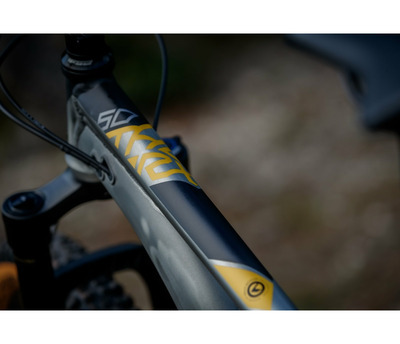

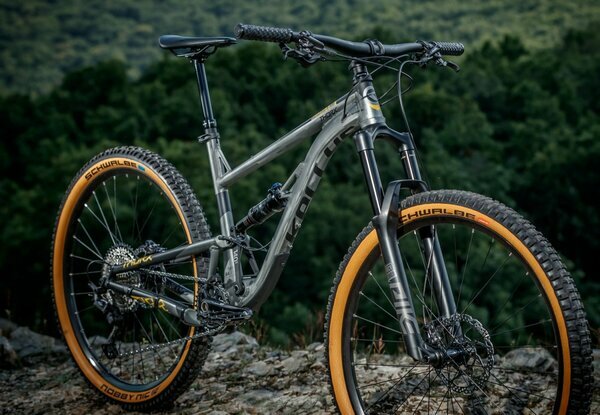

THORX 50 29"
Full-suspension trail bike
Frame set
frame KELLYS Allmountain 29 / Think Link® suspension system, 140 mm rear travel, tapered HT, internal routing, 12x148 mm Boost thru axle
fork ROCK SHOX Pike Select (29) Boost, 150 mm, DebonAir / Charger RC / Maxle Stealth 15 mm thru axle
rear shock ROCK SHOX Deluxe Ultimate RCT, DebonAir (210x55 mm)
frame size M / L
Drive

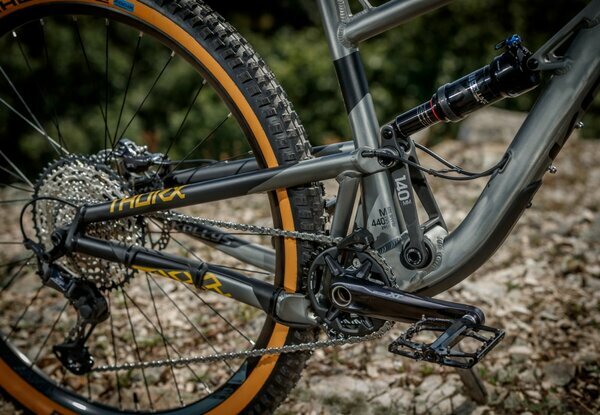

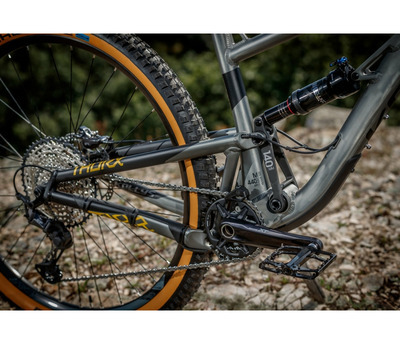

crankset SHIMANO Deore XT M8120-1 Hollowtech II (32T) - length 175 mm
rear derailleur SHIMANO Deore XT M8100 (direct mount)
front derailleur
chain guide MOZARTT HXR, ISCG 05
shifters SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
speed 12
cassette sprocket SHIMANO CS-M7100-12 (10-51T)
chain SHIMANO CN-M6100 (114 links)
b.b.parts SHIMANO Press-Fit BB71-41A
pedals KLS Master
Brakes
brakes SHIMANO Deore XT M8100 Hydraulic Disc
brake levers SHIMANO Deore XT BL-M8100
brake rotors 180 mm front / 180 mm rear
Wheels
hubs SHIMANO SLX M7110-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Valor 2 Disc 622x27 (32 holes)
spokes stainless steel black
tyres SCHWALBE Hans Dampf Evo Super Trail 60-622 (29x2.35) Tubeless Easy, ADDIX Soft, folding, front / SCHWALBE Nobby Nic Evo Super Terrain 60-622 (29x2.35) Tubeless Easy, ADDIX SpeedGrip, folding, rear
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear

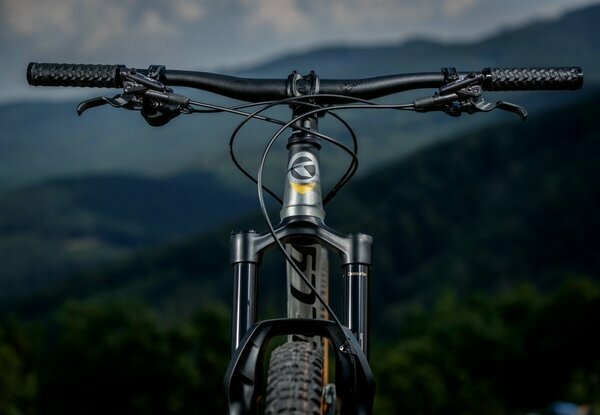

Cockpit
head parts FSA 1.5 integrated
stem RACE FACE Ride 35 - diam 28.6 mm / bar bore 35 mm / 6° / length 50 mm

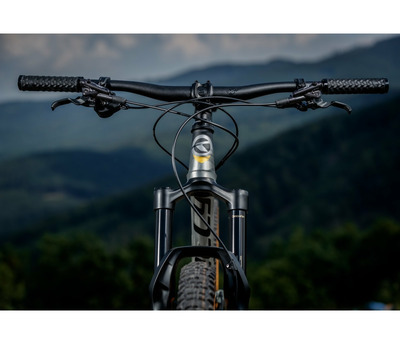

handlebar RACE FACE Ride 35 RiseBar - diam 35 mm / rise 20 mm / width 760 mm
grips KLS Poison
seat post KS e20-i Remote Telescopic - diam 30.9 mm / length 474 mm, travel 150 mm
saddle fi’zi:k Taiga, S-alloy rails
