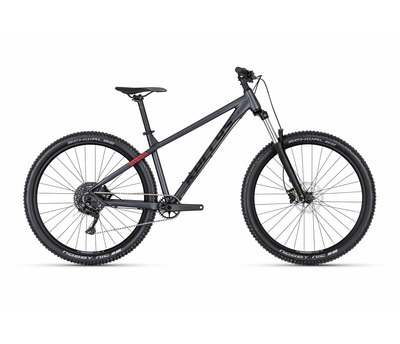

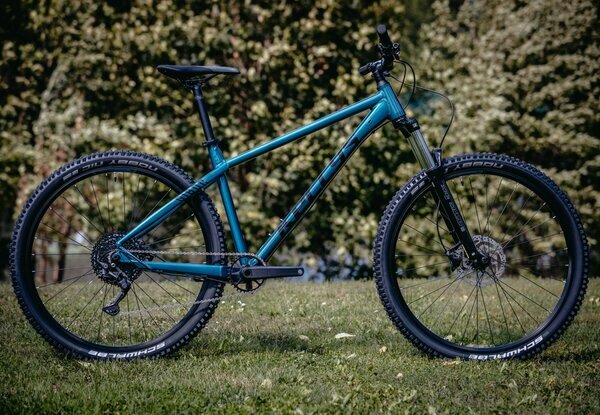

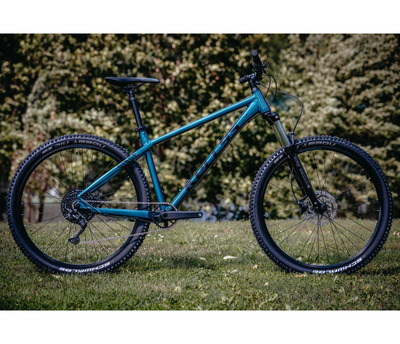

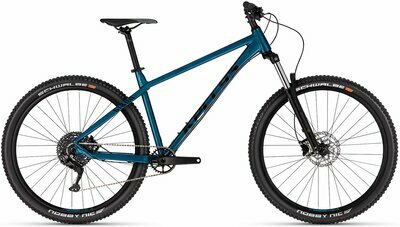

GIBON 10 29"
Trail bike
Frame set

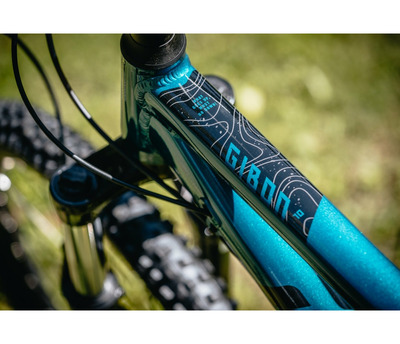

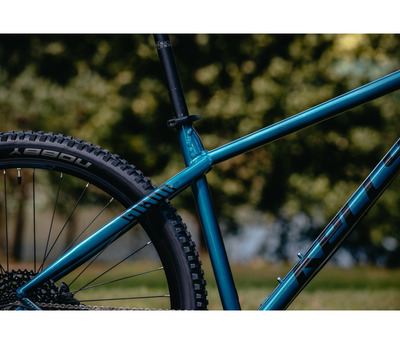

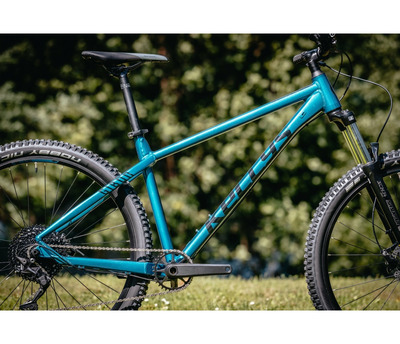

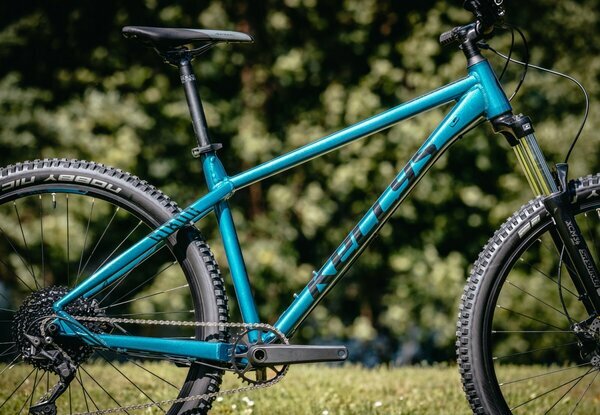

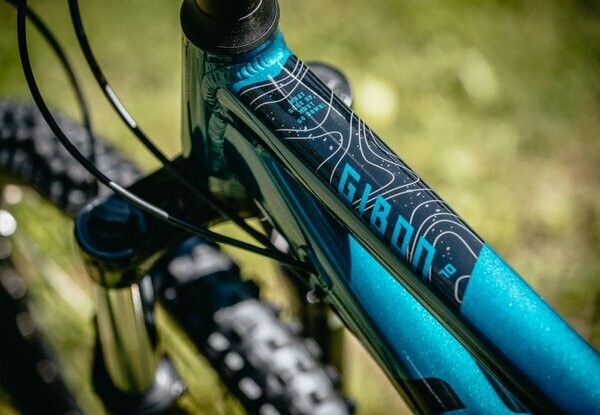

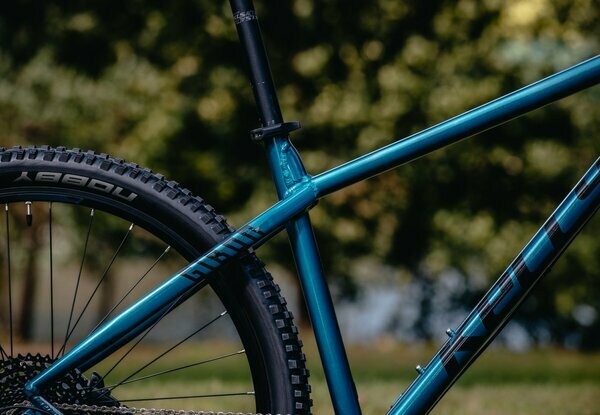

frame KELLYS Dynamic Trail 29, tapered HT, internal routing, 12x148 mm Boost thru axle
fork SR SUNTOUR XCM34 DS (29) Boost, 130 mm, coil spring / 15 mm thru axle
frame size M / L

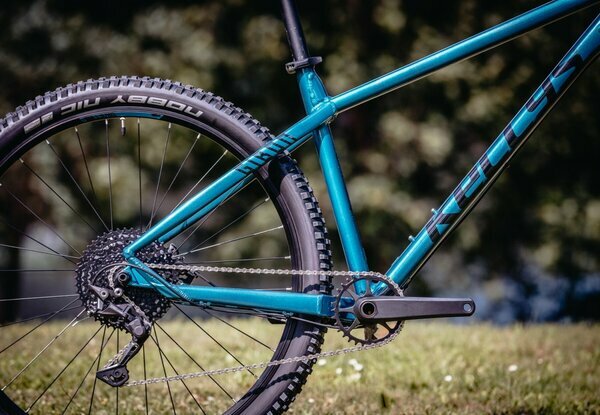

Drive
crankset SHIMANO Cues U4000-1 (32T) - length 175 mm

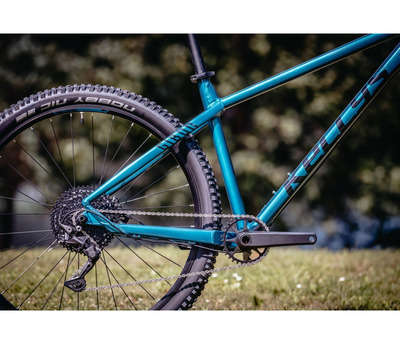

rear derailleur SHIMANO Cues U4000 (direct mount)
shifters SHIMANO Cues SL-U4000-9 Rapidfire Plus
speed 9
cassette sprocket SHIMANO Linkglide CS-LG300-9 (11-46T)
chain SHIMANO Linkglide CN-LG500 (110 links)
b.b.parts cartridge (122 mm)
pedals KLS Flat - plastic platform
Brakes
brakes SHIMANO MT200 hydraulic disc
brake levers SHIMANO BL-MT200
brake rotors 180 mm front / 180 mm rear
Wheels
hubs SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Draft Disc 622x21 (32 holes)
spokes stainless steel black
tyres SCHWALBE Nobby Nic Performance 60-622 (29x2.35) ADDIX
thru axle SR SUNTOUR 15x110 mm front / NOVATEC 12x170 mm rear
Cockpit
head parts 1.5 integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
handlebar KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / šírka 760 mm
grips kraton
seat post KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
saddle KLS Avenger
