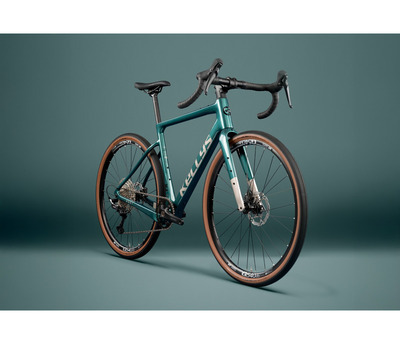

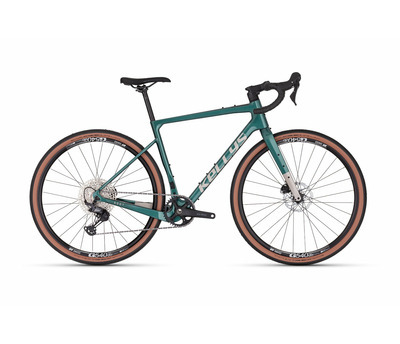

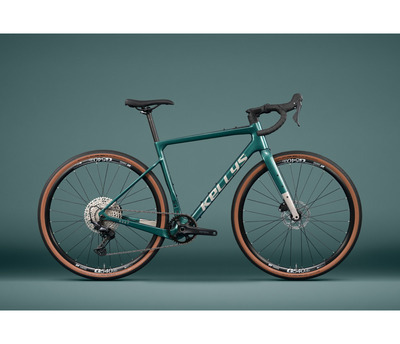

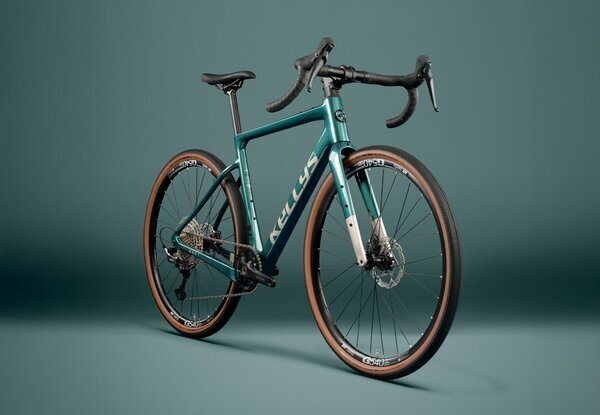

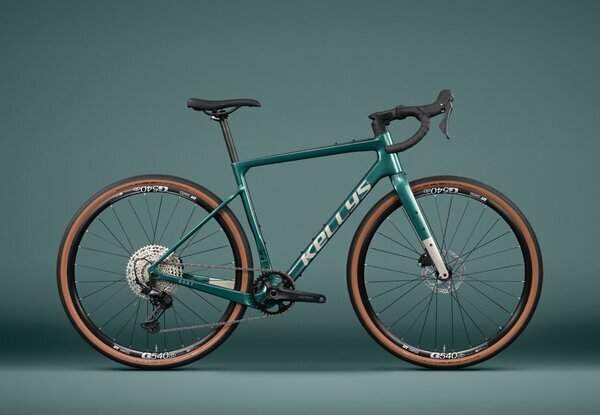

SOOT X90 EMERALD GREEN
Gravel bike
Frame set

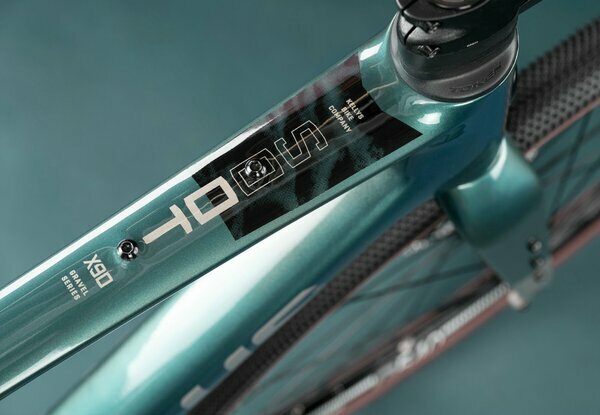

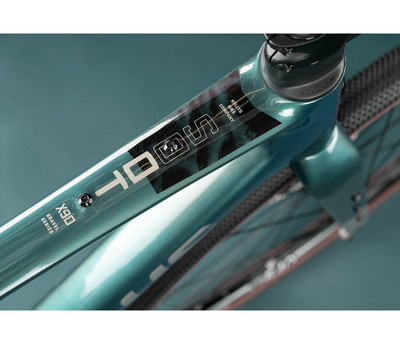

frame KELLYS Gravel Concept Carbon Disc / tapered HT, flat mount, internal routing / 12 mm thru axle
fork KELLYS Carbon Disc, 1.5 tapered steerer / flat mount disc brake / internal routing / 12 mm thru axle
frame size S / M / L
Drive

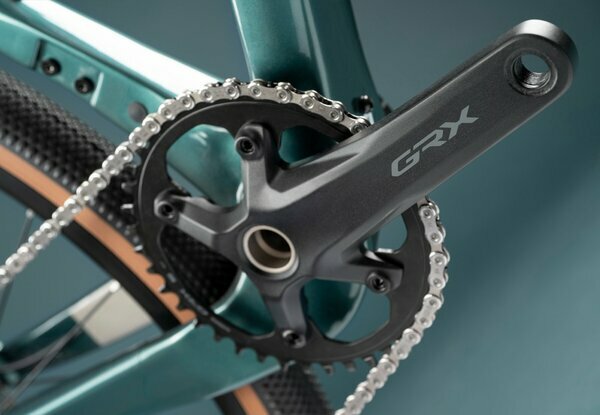

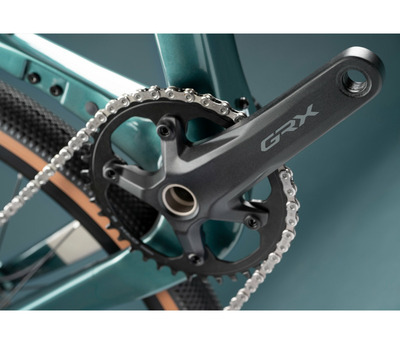

crankset SHIMANO GRX RX610-1 (40T) - length 172.5 mm (S - M), 175 mm (L)
rear derailleur SHIMANO GRX RX822 (direct mount)
shifters SHIMANO GRX ST-RX610-R Dual Control / BL-RX610-L
speed 12
cassette sprocket SHIMANO Deore CS-M6100-12 (10-51T)
chain SHIMANO CN-M7100 (114 links)
b.b.parts SHIMANO Press-Fit BB-RS500-PB
Brakes
brakes SHIMANO GRX RX400 Hydraulic Disc
brake levers SHIMANO GRX ST-RX610-R Dual Control / BL-RX610-L
brake rotors 160 mm front / 160 mm rear
Wheels
hubs KT Disc Center Lock (28 holes)
wheel set DT SWISS G 540 Disc 700Cx24 (28 holes)
tyres SCHWALBE G-One Allround 40-622 (700x38C) RaceGuard, ADDIX, folding
thru axle 12x120 mm front / 12x172 mm rear
Cockpit

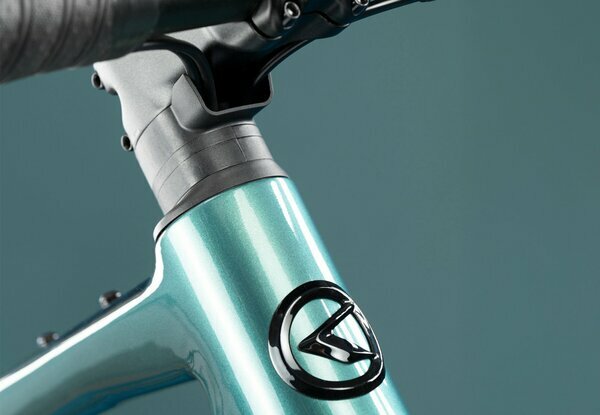

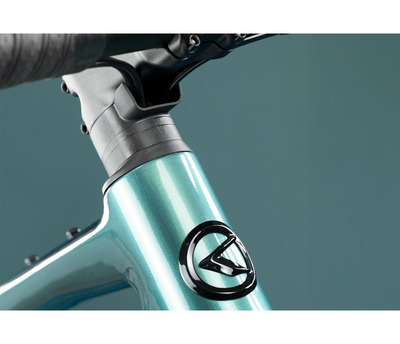

head parts TOKEN A-BOX Aero integrated cable routing system
stem PROMAX - for internal cable routing, compatible with A-BOX head set / diam 28.6 mm / bar bore 31.8 mm / 6° / length 80 mm (S ), 90 mm (M), 100 mm (L)
handlebar GravelBar - double butted / diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
grips KLS bar tape
seat post KLS Active Road - diam 27.2 mm / length 400 mm
saddle WTB Volt
