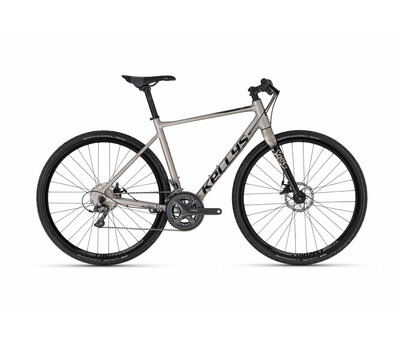

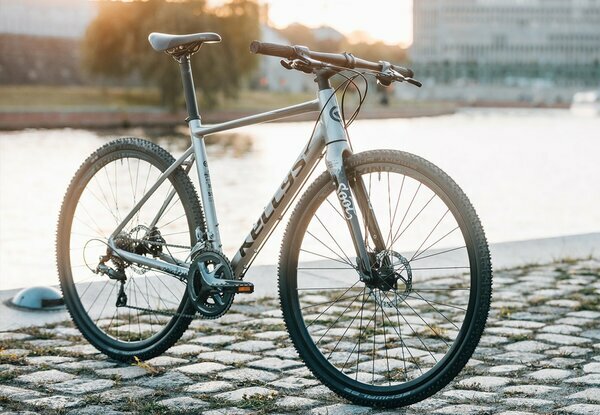

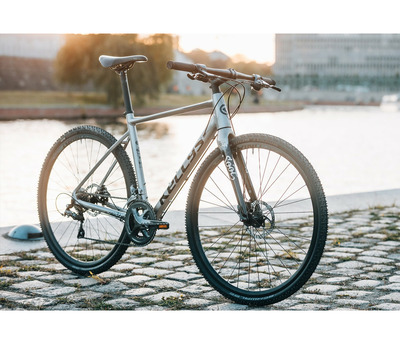

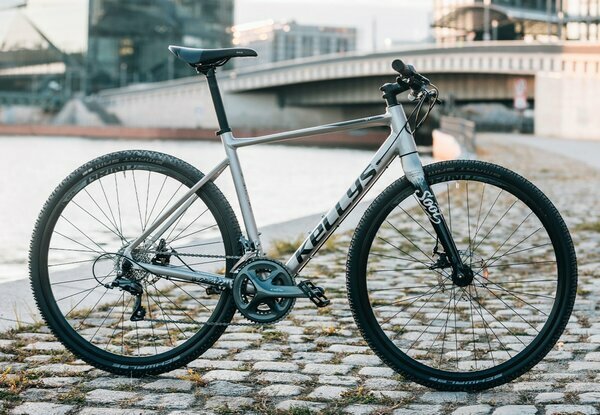

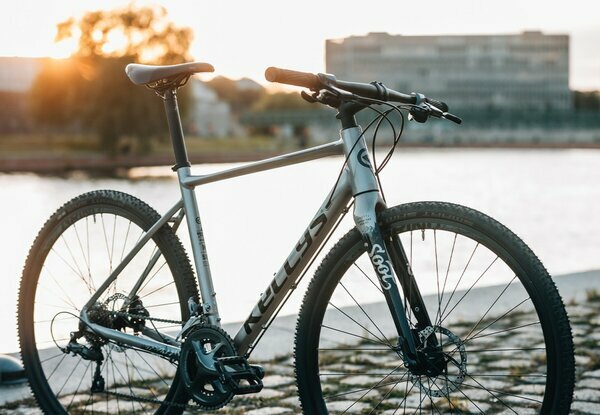

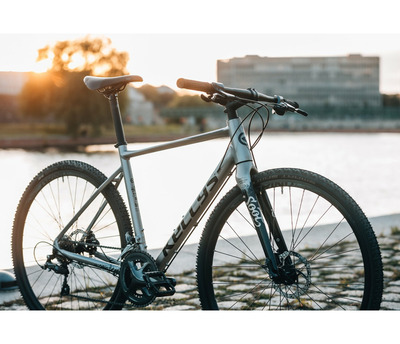

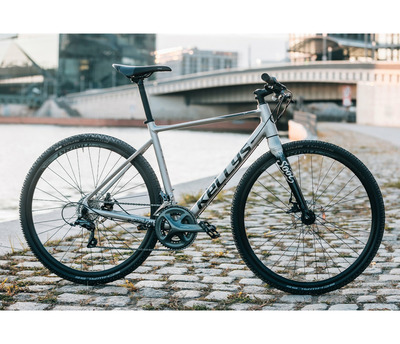

SOOT 20
Gravel bike
Frame set

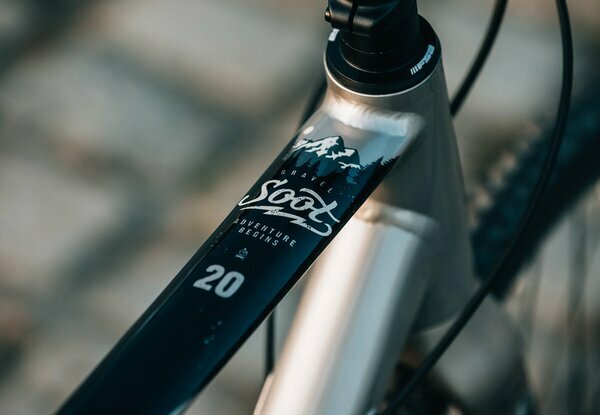

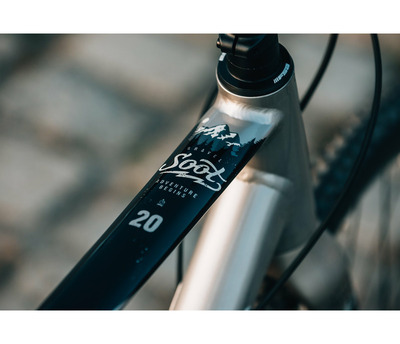

frame KELLYS Gravel Concept - Aluminium alloy Disc, flat mount, tapered HT, internal routing, 12x142 mm thru axle
fork KELLYS Carbon Disc - 1.5 tapered steerer, flat mount disc brake, 12x100 mm thru axle
frame size S / M / L
Drive
crankset SHIMANO Claris R2000 (50x34T) - length 170 mm (S - M), 175 mm (L)
rear derailleur SHIMANO Claris R2000 (direct mount)
front derailleur
SHIMANO Claris R2000 (braze on)
shifters SHIMANO Claris SL-R2000 Rapidfire Plus (for FlatBar)
speed 16
cassette sprocket SHIMANO CS-HG50-8 (11-32T)
chain KMC Z8 (112 links)
b.b.parts SHIMANO BB-RS500
Brakes
brakes TEKTRO Spyre Mechanical Disc
brake levers SHIMANO Claris BL-R2000
brake rotors 160 mm front / 160 mm rear
Wheels
hubs NOVATEC Disc (32 holes)
rims KELLYS Grind Disc 622x17 (32 holes / eyelets)
spokes stainless steel black

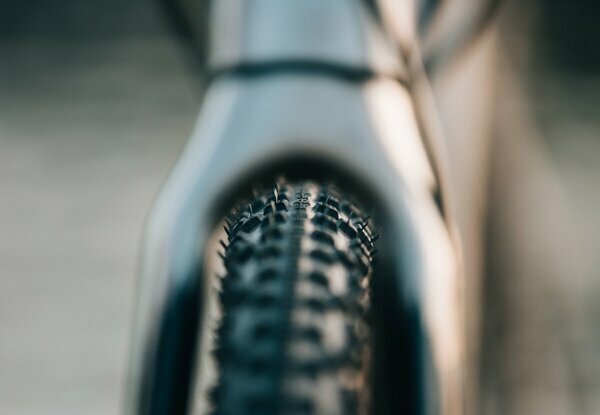

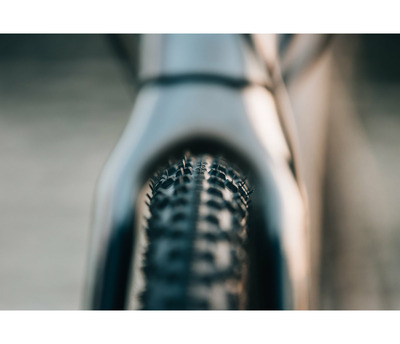

tyres SCHWALBE Smart Sam Performance 42-622 (700x40C) ADDIX
thru axle Mr.control 12x118 mm front / NOVATEC 12x162 mm rear
Cockpit
head parts FSA 1.5 semi-integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / 7° / length 70 mm (S ), 90 mm (M), 110 mm (L)
handlebar KLS Advanced FlatBar - diam 31.8 mm / width 720 mm
grips KLS Token 2Density
seat post KLS Active Road - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
saddle KLS SlipStream cr-mo rails
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
