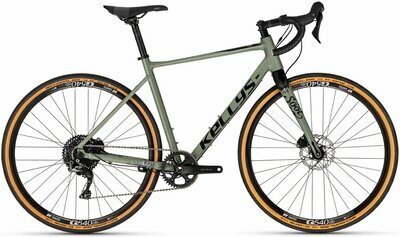

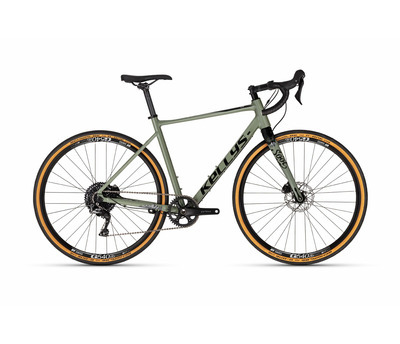

SOOT 70
weight kg
10,7 (M)
Frame set
frame KELLYS Gravel Concept Aluminium alloy Disc / tapered HT, flat mount, internal routing / 12 mm thru axle
fork KELLYS Carbon Disc, 1.5 tapered steerer / flat mount disc brake / 12 mm thru axle
frame size S / M / L / XL
Drive
crankset SHIMANO GRX RX600-1 (40T) - length 172.5 mm (S - M), 175 mm (L - XL)
rear derailleur SHIMANO GRX RX812 (direct mount)
shifters SHIMANO GRX BL-RX600 / ST-RX600 Dual Control
speed 11
cassette sprocket SUNRACE CSMS7 (11-42T)
chain KMC X11 EL (112 links)
b.b.parts SHIMANO BB-RS500
Brakes
brakes SHIMANO GRX RX400 Hydraulic Disc
brake levers SHIMANO GRX BL-RX600 / ST-RX600 Dual Control
brake rotors 160 mm front / 160 mm rear
Wheels
hubs NOVATEC Disc (32 holes)
rims DT SWISS G 540 Disc 700Cx24 (32 holes)
spokes stainless steel black
tyres SCHWALBE G-One Allround 40-622 (700x38C) RaceGuard, folding
thru axle Mr.control 12x118 mm front / NOVATEC 12x172 mm rear
Cockpit
head parts FSA 1.5 semi-integrated
stem KLS Active Road - diam 28.6 mm / bar bore 31.8 mm / 6° / length 90 mm (S), 100 mm (M), 110 mm (L), 120 mm (XL)
handlebar GravelBar - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L), 460 mm (XL)
grips KLS bar tape
seat post KLS Active Road - diam 30.9 mm / length 350 mm (S), 400 mm (M - XL)
saddle WTB Volt
