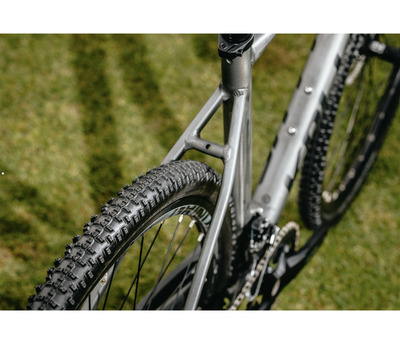

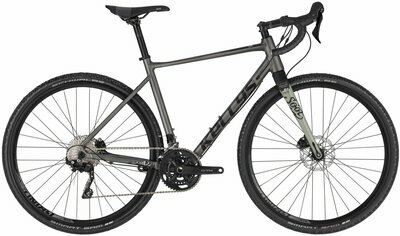

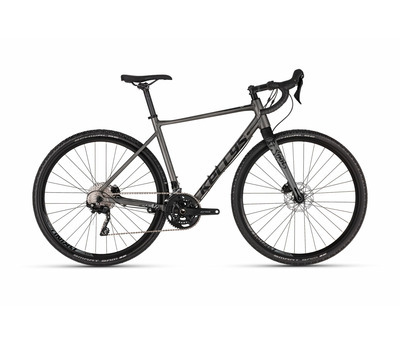

SOOT 50
Gravel bike
Frame set

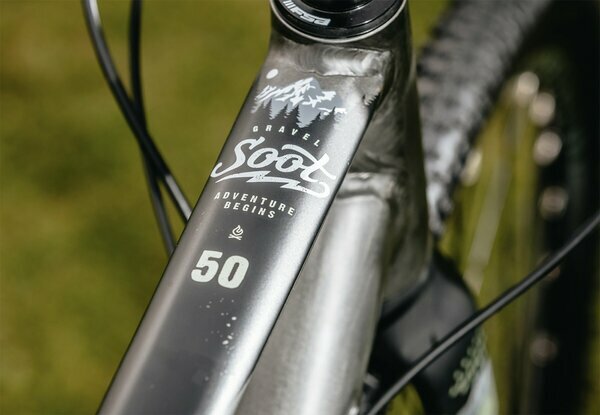

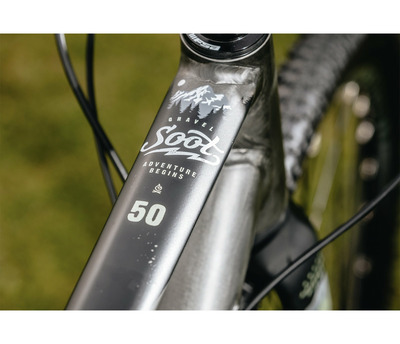

frame KELLYS Gravel Concept Aluminium alloy Disc / tapered HT, flat mount, internal routing / 12 mm thru axle
fork KELLYS Carbon Disc, 1.5 tapered steerer / flat mount disc brake / 12 mm thru axle
frame size S / M / L
Drive

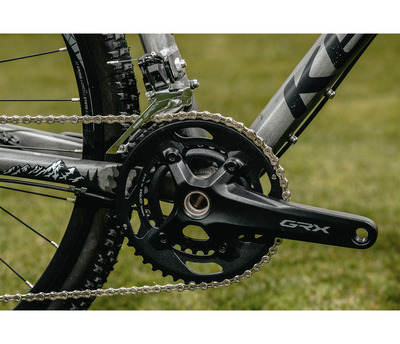

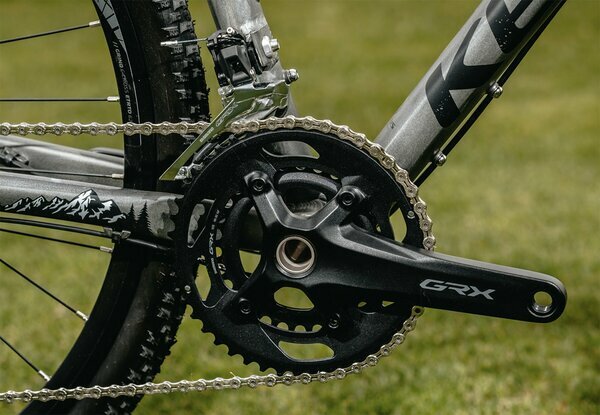

crankset SHIMANO GRX RX600-10 (46x30T) - length 172.5 mm (S - M), 175 mm (L)

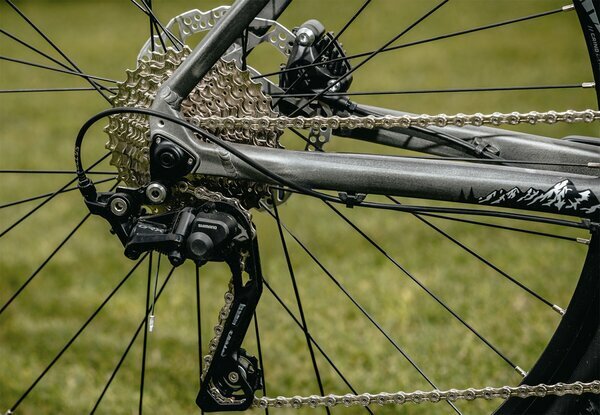

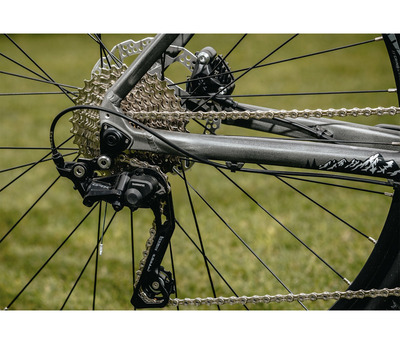

rear derailleur SHIMANO GRX RX400 (direct mount)
front derailleur
SHIMANO GRX RX400 (braze on)
shifters SHIMANO GRX ST-RX400 Dual Control
speed 20
cassette sprocket SHIMANO CS-HG500-10 (11-34T)
chain KMC X10 EL
b.b.parts SHIMANO BB-RS500
Brakes
brakes SHIMANO GRX RX400 Hydraulic Disc
brake levers SHIMANO GRX ST-RX400
brake rotors 160 mm front / 160 mm rear
Wheels
hubs NOVATEC Disc (32 holes)
rims KELLYS Grind Disc 622x17 (32 holes / eyelets)
spokes stainless steel black
tyres SCHWALBE Smart Sam Performance 42-622 (700x40C) ADDIX
thru axle Mr.control 12x118 mm front / NOVATEC 12x172 mm rear

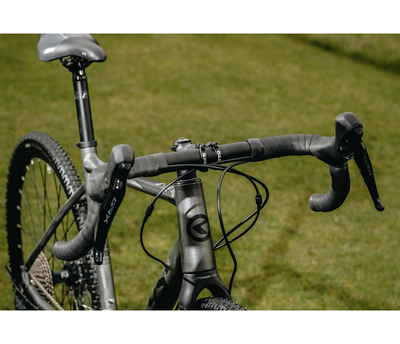

Cockpit
head parts FSA 1.5 semi-integrated

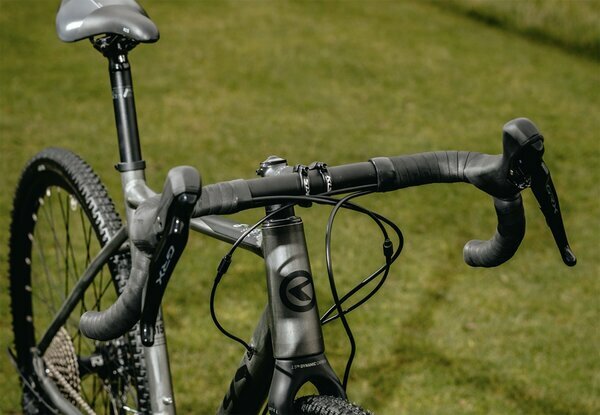

stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / 6° / length 90 mm (S ), 100 mm (M), 110 mm (L)
handlebar GravelBar - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
grips KLS bar tape
seat post KLS Active Road - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
saddle WTB Volt
