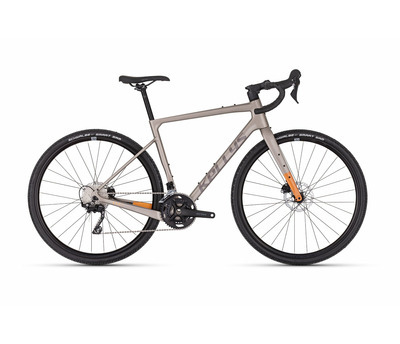

SOOT X80 DESERT BROWN
Gravel bike
Frame set
frame KELLYS Gravel Concept Carbon Disc / tapered HT, flat mount, internal routing / 12 mm thru axle
fork KELLYS Carbon Disc, 1.5 tapered steerer / flat mount disc brake / internal routing / 12 mm thru axle
frame size S / M / L
Drive
crankset SHIMANO GRX RX600-10 (46x30T) - length 172.5 mm (S - M), 175 mm (L)
rear derailleur SHIMANO GRX RX400 (direct mount)
front derailleur
SHIMANO GRX RX400 (braze on)
shifters SHIMANO GRX ST-RX400 Dual Control
speed 20
cassette sprocket SHIMANO CS-HG500-10 (11-34T)
chain KMC X10 EL (112 links)
b.b.parts SHIMANO Press-Fit BB-RS500-PB
Brakes
brakes SHIMANO GRX RX400 Hydraulic Disc
brake levers SHIMANO GRX ST-RX400 Dual Control
brake rotors 160 mm front / 160 mm rear
Wheels
hubs NOVATEC Disc Center Lock (28 holes)
rims KLS Grind 25 SL Disc 622x25 (28 holes)
spokes stainless steel black
tyres SCHWALBE Smart Sam Performance 42-622 (700x40C) ADDIX
thru axle 12x120 mm front / 12x172 mm rear
Cockpit
head parts TOKEN A-BOX Aero integrated cable routing system
stem PROMAX - for internal cable routing, compatible with A-BOX head set / diam 28.6 mm / bar bore 31.8 mm / length 80 mm (S ), 90 mm (M), 100 mm (L)
handlebar GravelBar - double butted / diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
grips KLS bar tape
seat post KLS Active Road - diam 27.2 mm / length 400 mm
saddle WTB Volt
weight 10,7 (M)
