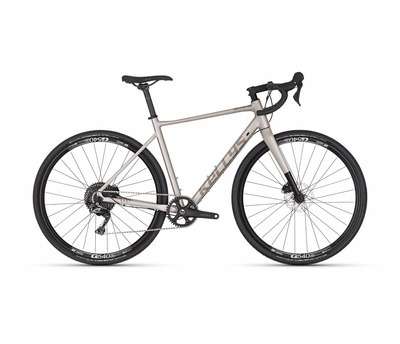

SOOT X70 SAND
Gravel bike
Frame set
frame KELLYS Gravel Concept Aluminium alloy Disc / tapered HT, flat mount disc brake, internal routing / 12 mm thru axle
fork KELLYS Carbon Disc, 1.5 tapered steerer / flat mount disc brake / internal routing / 12 mm thru axle
frame size S / M / L / XL
Drive
crankset SHIMANO GRX RX600-1 (40T) - length 172.5 mm (S - M), 175 mm (L - XL)
rear derailleur SHIMANO GRX RX812 (direct mount)
shifters SHIMANO GRX ST-RX600-R Dual Control / BL-RX600-L
speed 11
cassette sprocket SUNRACE CSMS7-11 (11-42T)
chain KMC X11 EL (112 links)
b.b.parts SHIMANO BB-RS500
Brakes
brakes SHIMANO GRX RX400 Hydraulic Disc
brake levers SHIMANO GRX ST-RX600-R Dual Control / BL-RX600-L
brake rotors 160 mm front / 160 mm rear
Wheels
hubs NOVATEC Disc Center Lock (28 holes)
rims DT SWISS G 540 Disc 700Cx24 (28 holes)
spokes stainless steel black
tyres SCHWALBE G-One Allround 40-622 (700x38C) RaceGuard, ADDIX, folding
thru axle 12x118 mm front / 12x162 mm rear
Cockpit
head parts FSA 1.5 semi-integrated
stem KLS Active Road - diam 28.6 mm / bar bore 31.8 mm / 6° / length 90 mm (S), 100 mm (M), 110 mm (L), 120 mm (XL)
handlebar GravelBar - double butted, diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L), 460 mm (XL)
grips KLS bar tape
seat post KLS Active Road - diam 30.9 mm / length 350 mm (S), 400 mm (M - XL)
saddle WTB Volt
weight 10,7 (M)
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
