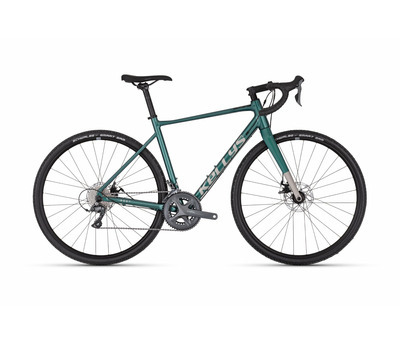

SOOT X30 EMERALD GREEN
Gravel bike
Frame set
frame KELLYS Gravel Concept Aluminium alloy Disc / tapered HT, flat mount disc brake, internal routing / 12 mm thru axle
fork KELLYS Carbon Disc, 1.5 tapered steerer / flat mount disc brake / internal routing / 12 mm thru axle
frame size S / M / L / XL
Drive
crankset SHIMANO Claris R2000 (50x34T) - length 170 mm (S - M), 175 mm (L)
rear derailleur SHIMANO Claris R2000 (direct mount)
front derailleur
SHIMANO Claris R2000 (braze on)
shifters SHIMANO Claris ST-R2000 Dual Control
speed 16
cassette sprocket SHIMANO CS-HG50-8 (11-32T)
chain KMC Z8 (112 links)
b.b.parts SHIMANO BB-RS500
Brakes
brakes TEKTRO Spyre Mechanical Disc
brake levers SHIMANO Claris ST-R2000 Dual Control
brake rotors 160 mm front / 160 mm rear
Wheels
hubs NOVATEC Disc Center Lock (28 holes)
rims KLS Grind 25 Disc 622x25 (28 holes)
spokes stainless steel black
tyres SCHWALBE Smart Sam Performance 42-622 (700x40C) ADDIX
thru axle 12x118 mm front / 12x162 mm rear
Cockpit
head parts FSA 1.5 semi-integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / 6° / length 90 mm (S), 100 mm (M), 110 mm (L), 120 mm (XL)
handlebar GravelBar - double butted, diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L), 460 mm (XL)
grips KLS bar tape
seat post KLS Active Road - diam 30.9 mm / length 350 mm (S), 400 mm (M - XL)
saddle WTB Volt
