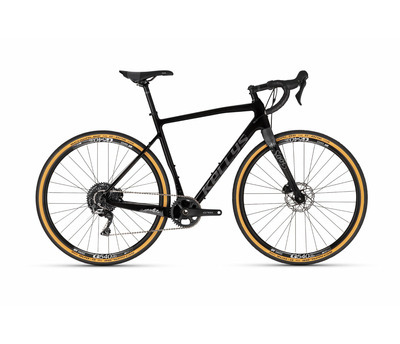

SOOT 90
Gravel bike
Frame set
frame KELLYS Gravel Concept - Carbon Disc, flat mount, tapered HT, internal routing, 12x142 mm thru axle
fork KELLYS Carbon Disc - 1.5 tapered steerer, flat mount disc brake, 12x100 mm thru axle
frame size S / M / L
Drive
crankset SHIMANO GRX RX600-1 (40T) - length 172.5 mm (S - M), 175 mm (L)
rear derailleur SHIMANO GRX RX812 (direct mount)
shifters SHIMANO GRX BL-RX600 / ST-RX600 Dual Control
speed 11
cassette sprocket SunRace CSMS7 (11-42T)
chain KMC X11 EL (110 links)
b.b.parts SHIMANO Press-Fit BB-RS500-PB
Brakes
brakes SHIMANO GRX RX400 Hydraulic Disc
brake levers SHIMANO GRX BL-RX600 / ST-RX600 Dual Control
brake rotors 160 mm front / 160 mm rear
Wheels
hubs NOVATEC Disc (32 holes)
wheel set DT SWISS G 540 Disc 700Cx24 (32 holes)
tyres SCHWALBE G-One Allround 40-622 (700x38C) RaceGuard, folding
thru axle Mr.control 12x118 mm front / NOVATEC 12x172 mm rear
Cockpit
head parts FSA 1.5 semi-integrated
stem KLS Active Road - diam 28.6 mm / bar bore 31.8 mm / 6° / length 90 mm (S), 100 mm (M), 110 mm (L)
handlebar GravelBar - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
grips KLS bar tape
seat post KLS Active Road - diam 27.2 mm / length 350 mm (S), 400 mm (M - L)
saddle KLS SlipStream cr-mo rails
