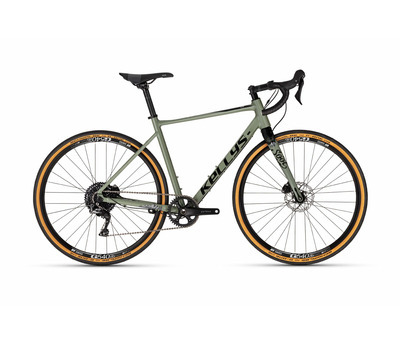

SOOT 70
Gravel bike
Frame set
frame
KELLYS Gravel Concept - Aluminium alloy Disc, flat mount, tapered HT, internal routing, 12x142 mm thru axle
fork
KELLYS Carbon Disc - 1.5 tapered steerer, flat mount disc brake, 12x100 mm thru axle
frame size
S / M / L / XL
Drive
crankset
SHIMANO GRX RX600-1 (40T) - length 172.5 mm (S - M), 175 mm (L - XL)
rear derailleur
SHIMANO GRX RX812 (direct mount)
shifters
SHIMANO GRX BL-RX600 / ST-RX600 Dual Control
speed
11
cassette sprocket
SUNRACE CSMS7 (11-42T)
chain
KMC X11 EL
b.b.parts
SHIMANO BB-RS500
Brakes
brakes
SHIMANO GRX RX400 Hydraulic Disc
brake levers
SHIMANO GRX BL-RX600 / ST-RX600 Dual Control
brake rotors
160 mm front / 160 mm rear
Wheels
hubs
NOVATEC Disc (32 holes)
rims
DT SWISS G 540 Disc 700Cx24 (32 holes)
spokes
stainless steel black
tyres
SCHWALBE G-One Allround 40-622 (700x38C) RaceGuard, folding
thru axle
Mr.control 12x118 mm front / NOVATEC 12x162 mm rear
Cockpit
head parts
FSA 1.5 semi-integrated
stem
KLS Active Road - diam 28.6 mm / bar bore 31.8 mm / 6° / length 90 mm (S), 100 mm (M), 110 mm (L), 120 mm (XL)
handlebar
GravelBar - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L), 460 mm (XL)
grips
KLS bar tape
seat post
KLS Active Road - diam 30.9 mm / length 350 mm (S), 400 mm (M - XL)
saddle
KLS SlipStream cr-mo rails
