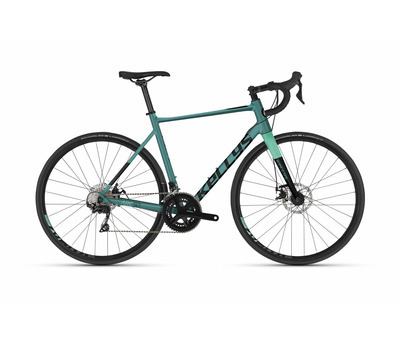

ARC 50
Road bike
Frame set
frame
KELLYS Endurance Concept Aluminium alloy Disc / 1.5" tapered HT, flat mount, internal routing
fork
KELLYS Carbon Disc / 1.5" tapered steerer, post mount disc brake
frame size
S / M / L
Drive
crankset
SHIMANO RS510 (50x34T) - length 172.5 mm (S - M), 175 mm (L)
rear derailleur
SHIMANO 105 R7000 (direct mount)
front derailleur
SHIMANO 105 R7000 (brazed-on mount)
shifters
SHIMANO 105 ST-R7000 Dual Control
speed
22
cassette sprocket
SHIMANO CS-R7000-11 (11-32T)
chain
KMC X11 EL
b.b.parts
SHIMANO BB-RS500
Brakes
brakes
TEKTRO Spyre Mechanical Disc
brake levers
SHIMANO 105 ST-R7000 Dual Control
brake rotors
160 mm front / 160 mm rear
Wheels
hubs
NOVATEC Disc (28 holes)
rims
KELLYS Spark Disc 622x15 (28 holes / eyelets)
spokes
stainless steel black
tyres
SCHWALBE Lugano 25-622 (700x25C) K-Guard, Silica
Cockpit
head parts
FSA 1.5" semi-integrated
stem
KLS Active Road - diam 28.6 mm / bar bore 31.8 mm / 6° / length 70 mm (S), 90 mm (M), 110 mm (L)
handlebar
KLS Expert Road - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
grips
KLS bar tape
seat post
KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
saddle
WTB Volt
weight
10.36 kg (M)
The weight corresponds to the most common model specification in size M. The actual weight of your bike may vary.
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
