Frame set

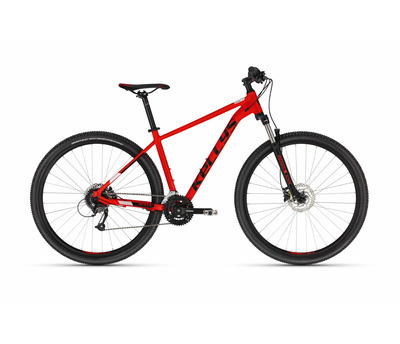

frame KELLYS Alutec RRC 29 - Race Ready Concept
fork SR SUNTOUR XCM HLO (29), 100 mm, coil / Speed Lockout
frame size M / L
Drive
crankset SHIMANO TY501 (42x34x24T) - length 175 mm
rear derailleur SHIMANO Altus M310 (direct mount)
front derailleur
SHIMANO TY700 (34.9 mm)
shifters SHIMANO SL-M310 Rapidfire Plus
speed 24
cassette sprocket SHIMANO CS-HG200-8 (11-32T)
chain KMC Z8 (110 links)
b.b.parts cartridge (122 mm)
pedals alloy
Brakes
brakes SHIMANO MT200 Hydraulic Disc or KLS 1600 Hydraulic Disc
brake levers SHIMANO BL-MT200 or KLS 1600
brake rotors 160 mm front / 160 mm rear
Wheels
hubs KT Disc / SHIMANO TX505 Disc Center Lock or KT Disc Center Lock (32 holes)
rims KLS Draft Disc 622x21 (32 holes)
spokes steel
tyres IMPAC Ridgepac or INNOVA 54-622 (29x2.10)
Cockpit
head parts semi-integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm (M), 90 mm (L)
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width680 mm
grips KLS Advancer
seat post KLS Active - diam 30.9 mm / length 300 mm (M), 350 mm (L)
saddle KLS Sentinel 2
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
