Frame set
frame

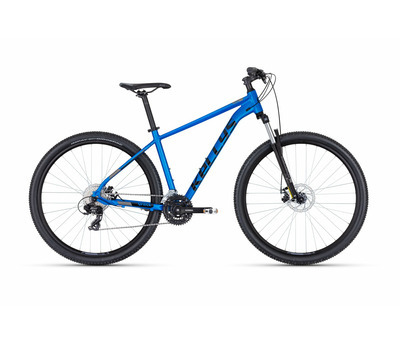

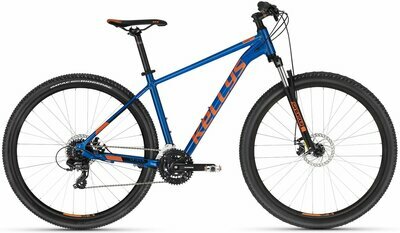

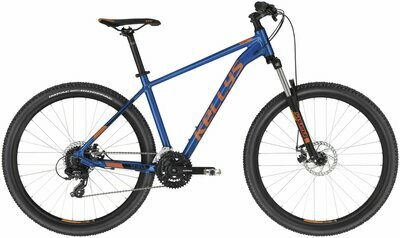

KELLYS Alutec RRC 27.5" - Race Ready Concept
fork
SR SUNTOUR XCE28 DS (27.5"), 100 mm, coil spring
frame size
S / M
Drive
crankset
SHIMANO TY301 (42x34x24T) - length 170 mm (S), 175 mm (M)
rear derailleur
SHIMANO TX800 (direct mount)
front derailleur
SHIMANO TY600 (34.9 mm)
shifters
SHIMANO ST-EF500-8 EZ-fire Plus
speed
24
cassette sprocket
SHIMANO CS-HG200-8 (12-32T)
chain
KMC Z8
b.b.parts
cartridge (122 mm)
pedals
alloy
Brakes
brakes
Mechanical Disc
brake levers
SHIMANO ST-EF510 EZ-fire Plus
brake rotors
160 mm front / 160 mm rear
Wheels
hubs
KLS Firework Disc (32 holes)
rims
KLS Draft Disc 584x21 (32 holes)
spokes
steel
tyres
IMPAC Ridgepac or WTB Nano 54-584 (27.5"x2.10)
Cockpit
head parts
semi-integrated
stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm
handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 660 mm (S), 680 mm (M)
grips
KLS Advancer
seat post
KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M)
saddle
KLS Sentinel 2
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
