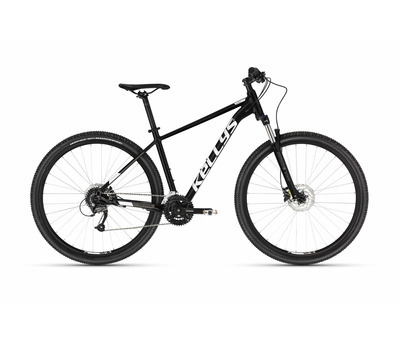

Frame set

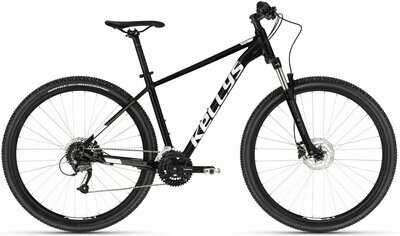

frame KELLYS Alutec RRC 29" - Race Ready Concept
fork SR SUNTOUR XCM32 NLO DS (29"), 100 mm, coil / Speed Lockout
frame size M / L / XL
Drive
crankset SHIMANO TY501 (42x34x24T) - length 175 mm
rear derailleur SHIMANO Altus M310 (direct mount)
front derailleur
SHIMANO TY600 (34.9 mm)
shifters SHIMANO SL-M315 Rapidfire Plus
speed 24
cassette sprocket SHIMANO CS-HG200-8 (12-32T)
chain KMC Z8 (112 links)
b.b.parts cartridge (122 mm)
pedals alloy
Brakes
brakes SHIMANO MT200 Hydraulic Disc
brake levers SHIMANO BL-MT200
brake rotors 160 mm front / 160 mm rear
Wheels
hubs SHIMANO TX505 Disc Center Lock (32 holes)
rims KLS Draft Disc 622x21 (32 holes)
spokes steel
tyres IMPAC Ridgepac or WTB Nano 54-622 (29"x2.10)
Cockpit
head parts semi-integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm (M), 90 mm (L - XL)
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width680 mm
grips KLS Advancer
seat post KLS Active - diam 30.9 mm / length 400 mm
saddle KLS Sentinel 2
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
