Frame set

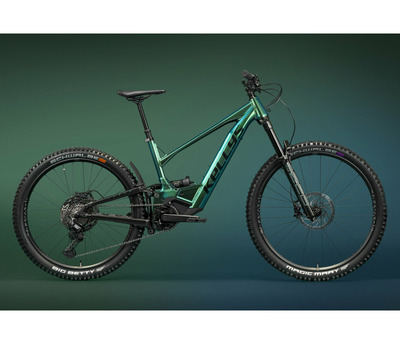

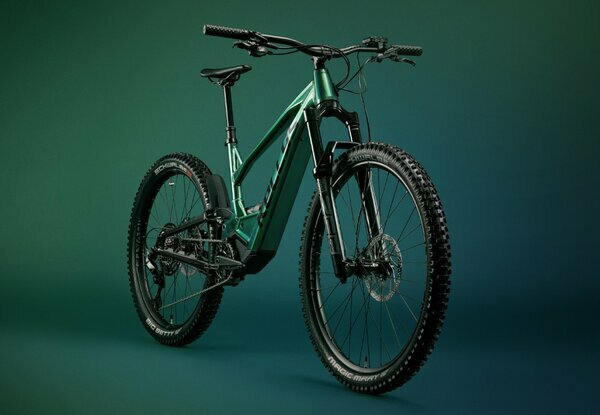

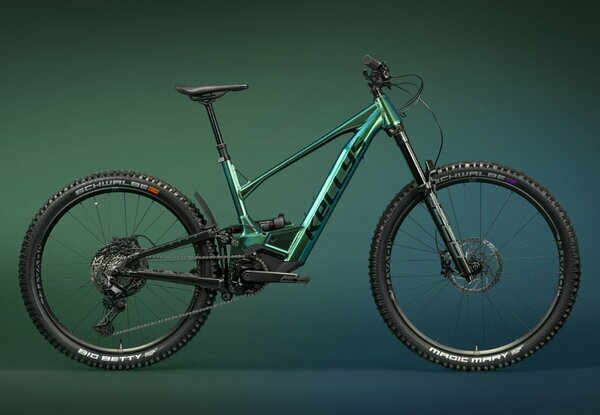

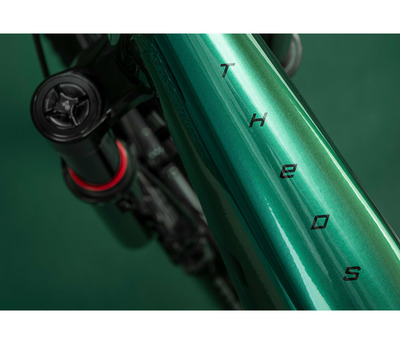

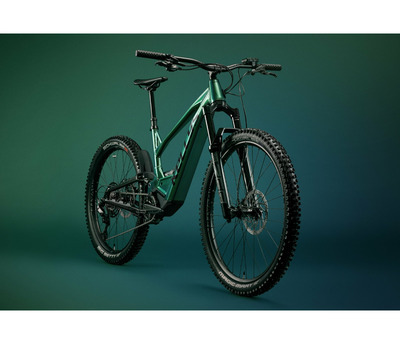

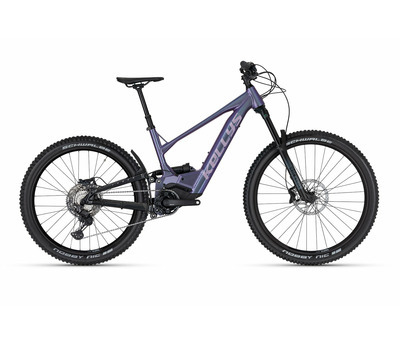

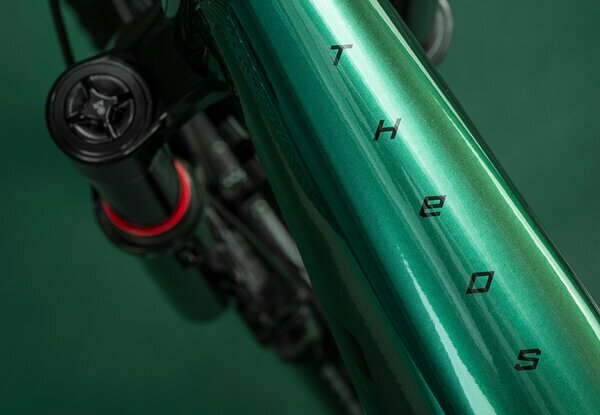

frame KELLYS THEOS R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / Think Link® suspension system, 130 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29" / 27.5"+ wheelset, 12x148 mm Boost thru axle
fork ROCK SHOX 35 Silver TK (29") Boost, 150 mm, Solo Air / TurnKey / Maxle Stealth 15 mm thru axle
rear shock ROCK SHOX Deluxe Select R, DebonAir+ (210x55 mm)
frame size S
Drive

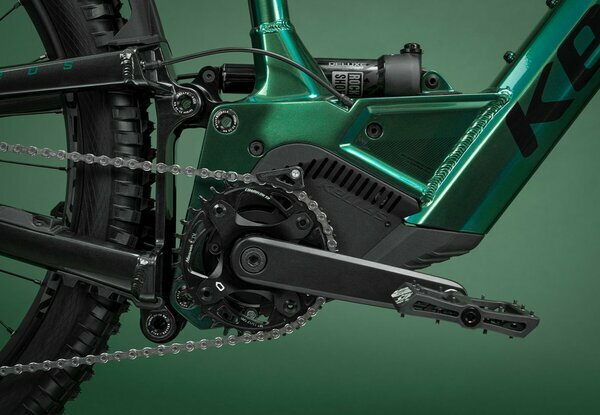

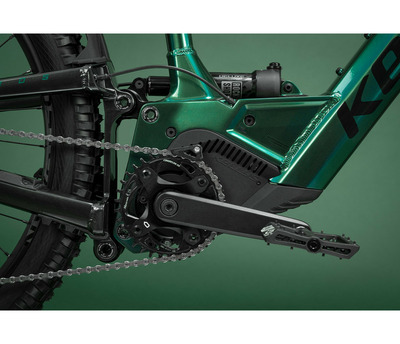

motor PANASONIC GX Ultimate, 95 Nm, 36 V
battery KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by KELLYS-BMZ
switch unit PANASONIC

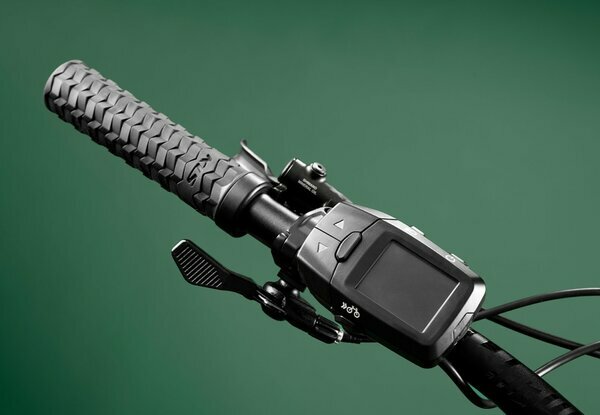

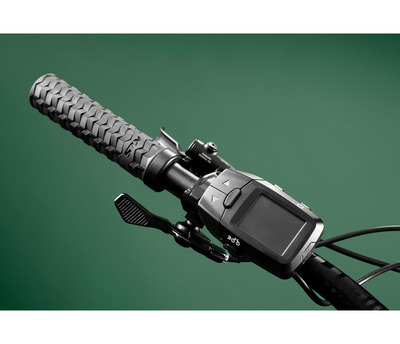

computer display PANASONIC Bluetooth® 5.0 navigation Side Color Display
crankset MIRANDA Miranda (34T) - length 170 mm
rear derailleur SHIMANO Cues U6000 (direct mount)
shifters SHIMANO Cues SL-U6000-10 Rapidfire Plus
speed 10
cassette sprocket SHIMANO Linkglide CS-LG400-10 (11-48T)
chain SHIMANO Linkglide CN-LG500 (122 links)
Brakes
brakes SHIMANO MT420 / MT410 Hydraulic Disc
brake levers SHIMANO Deore BL-M4100
brake rotors SHIMANO RT30 203 mm front / SHIMANO EM300 203 mm rear
Wheels
hubs SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Valor 3 Disc (622x30 front / 584x30 rear / 32 holes)
spokes stainless steel black
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / Mr. Control 12x177 mm rear
rear tyre SCHWALBE Nobby Nic Performance 65-584 (27.5"x2.60) Tubeless Easy, ADDIX, folding
front tyre SCHWALBE Nobby Nic Performance 60-622 (29"x2.35) Tubeless Easy, ADDIX, folding
Cockpit
head parts ACROS 1.8 tapered semi-integrated
stem KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm
handlebar KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / width 780 mm
grips KLS Poison OneLockon
seat post LIMOTEC A1 Remote Telescopic - diam 30.9 mm / length 445 mm, travel 150 mm
saddle fi’zi:k Taiga, S-alloy rails
