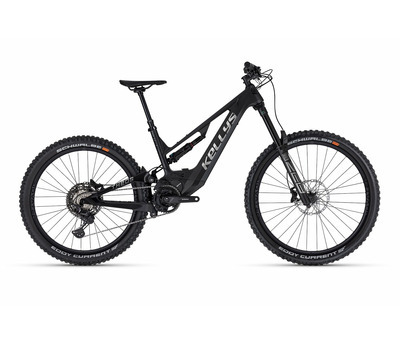

THEOS F70 SH 29/27.5" 820 Wh
Frame set
frame KELLYS THEOS F100 Carbon-Aramid Composite / Designed & manufactured in EUROPE / Think Link® suspension system, 140 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29/27.5"+ wheelset, 12x148 mm Boost thru axle
fork ROCK SHOX Zeb Select+ (29) Boost, 180 mm, DebonAir+ / Charger 3 RC2 / Maxle Stealth 15 mm thru axle
rear shock ROCK SHOX Super Deluxe Select+ RT, DebonAir+ / Open-Threshold (230x65 mm)
frame size M / L
Drive
motor SHIMANO EP801, 85 Nm, 36 V
battery KELLYS Re-Charge K1 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by Kellys-BMZ
switch unit SHIMANO SW-EN800-L for assist
computer display Shimano SC-EN500 cycle computer with assist switch
crankset SHIMANO EM600 / CRE70-B (34T) - length 170 mm
rear derailleur SHIMANO Deore XT Linkglide M8130 (direct mount)
shifters SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
speed 11
cassette sprocket SHIMANO Linkglide CS-LG600-11 (11-50T)
chain SHIMANO Linkglide CN-LG500
Brakes
brakes SHIMANO Deore XT M8120 Hydraulic Disc
brake levers SHIMANO Deore XT BL-M8100
brake rotors SHIMANO RT64 220 mm front / EM300 203 mm rear
Wheels
wheel set NOVATEC M30 622x30 front / NOVATEC M35 584x35 Center Lock rear (15x110 mm / 12x148 mm)
tyres SCHWALBE Eddy Current Evo Super Trail 62-622 (29x2.40) Tubeless Easy, ADDIX Soft, folding front / SCHWALBE Eddy Current Evo Super Gravity 65-584 (27.5x2.60) Tubeless Easy, ADDIX Soft, folding rear
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear
Cockpit
head parts ACROS 1.8 tapered semi-integrated
stem RACE FACE Aeffect R 35 - diam 28.6 mm / bar bore 35 mm / 0° / length 50 mm
handlebar RACE FACE Chester 35 RiseBar - diam 35 mm / rise 35 mm / width 780 mm
grips KLS Poison
seat post KS Rage-i Remote Telescopic - diam 30.9 mm / length 442 mm, travel 150 mm (M) / length 495 mm, travel 170 mm (L)
saddle fi’zi:k Taiga, S-alloy rails
