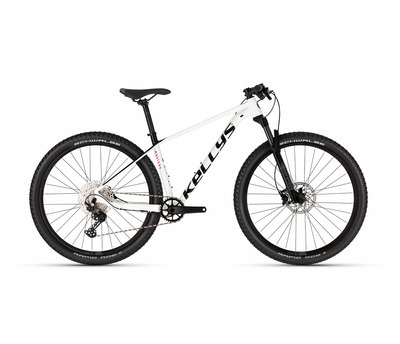

MYSTERY 30 29"
Rahmensatz
Rahmen KELLYS Dynamic RRC 29 KLC, tapered HT, internal routing, 12x148 mm Boost thru axle
Gabel ROCK SHOX Recon Silver RL (29) Boost, 100 mm, Solo Air / Motion Control / OneLoc Remote Lockout / Maxle Lite 15 mm thru axle
Rahmengrössen M / L
Drive
Kurbelgarnitur SAMOX (32T) - length 170 mm (M), 175 mm (L)
Schaltwerk SHIMANO Deore M6100 (direct mount)
Schalthebel SHIMANO Deore SL-M6100-IR Rapidfire Plus (I-Spec EV)
Gänge 12
Kassetenzahnkranz SHIMANO Deore CS-M6100-12 (10-51T)
Kette KMC X12 (114 links)
Innenlager SAMOX cartridge
Pedale Kunststoff
Freins
Bremsen SHIMANO Deore MT410 Hydraulic Disc
Bremshebel SHIMANO Deore BL-M4100
Bremsscheiben 180 mm front / 160 mm rear
Räder
Naben SHIMANO MT400-B / MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Felgen KLS Cartel Disc 622x21 (32 holes)
Speichen stainless steel black
Reifen SCHWALBE Rapid Rob 57-622 (29x2.25) K-Guard or MICHELIN Country Race’r 54-622 (29x2.10)
Steckachse ROCK SHOX Maxle Lite 15x110 mm front / NOVATEC 12x170 mm rear
Cockpit
Steuersatz FSA 1.5 integrated
Vorbau KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / length 70 mm
Lenker KLS Advanced FlatBar - diam 31.8 mm / width 740 mm
Griffe KLS Advancer 2Density
Sattelstütze KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
Sattel SELLE ROYAL Vivo
