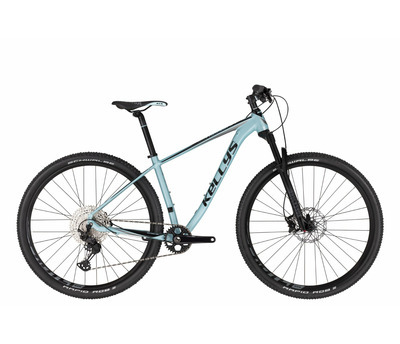

MYSTERY 90
Rahmensatz
Rahmen KELLYS Dynamic KLC Lite 29, LSG, tapered HT, internal routing, 12x148 mm Boost thru axle
Gabel ROCK SHOX Recon GOLD RL (29) Boost, 100 mm, DebonAir / Motion Control / OneLoc Remote Lockout / Maxle Lite 15 mm thru axle
Rahmengrössen S / M / L
Drive
Kurbelgarnitur SHIMANO Deore XT M8100-1 Hollowtech II (34T) - length 170 mm (S), 175 mm (M - L)
Schaltwerk SHIMANO Deore XT M8100 (direct mount)
Schalthebel SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
Gänge 12
Kassetenzahnkranz SHIMANO (021) CS-M6100-12 (10-51T)
Kette KMC X12 (114 links)
Innenlager SRAM DUB PressFit
Pedale Kunststoff
Freins
Bremsen SHIMANO Deore (021) MT410 Hydraulic Disc
Bremshebel SHIMANO Deore (021) BL-M4100
Bremsscheiben 180 mm front / 160 mm rear
Räder
Naben SHIMANO MT400-B / MT510-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Felgen KLS MadMax Disc 622x18 (32 holes)
Speichen stainless steel black
Reifen SCHWALBE Rapid Rob 54-622 (29x2.10)
Steckachse ROCK SHOX Maxle Stealth 15x110 mm front / NOVATEC 12x148 mm rear
Cockpit
Steuersatz FSA 1.5 integrated
Vorbau KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / length 70 mm (S), 80 mm (M - L)
Lenker KLS Advanced RiseBar - diam 31.8 mm / rise 15 mm / width 640 mm (S - M), 660 mm (L)
Griffe KLS Token 3Density
Sattelstütze KLS Advanced - diam 30.9 mm / length 350 mm (S - M), 400 mm (L)
Sattel KLS Diversa
