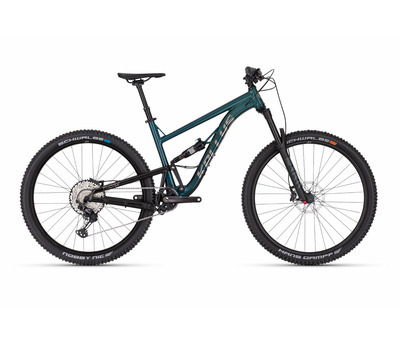

THORX 50 EMERALD GREEN 29"
Rahmensatz
Rahmen KELLYS Allmountain 29" / Think Link® suspension system, 140 mm rear travel, tapered HT, internal routing, 12x148 mm Boost thru axle
Gabel ROCK SHOX Yari RC (29") Boost, 150 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle
Dämpfer ROCK SHOX Deluxe Ultimate RCT, DebonAir+ / Open-Threshold (210x55 mm)
Rahmengrössen M / L
Drive
Kurbelgarnitur SHIMANO Deore XT M8120-1 Hollowtech II (32T) - length 175 mm
Schaltwerk SHIMANO Deore XT M8100 (direct mount)
Umwerfer
chain guide Mozartt HXR, ISCG 05
Schalthebel SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
Gänge 12
Kassetenzahnkranz SHIMANO CS-M7100-12 (10-51T)
Kette SHIMANO CN-M6100 (114 links)
Innenlager SHIMANO Press-Fit BB71-41A
Pedale KLS Master
Freins
Bremsen SHIMANO Deore XT M8100 Hydraulic Disc
Bremshebel SHIMANO Deore XT BL-M8100
Bremsscheiben 180 mm front / 180 mm rear
Räder
Naben SHIMANO SLX M7110-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Felgen KLS Segador 27 SL Disc 622x27 (32 holes)
Speichen stainless steel black
Steckachse ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear
Vorderradreifen SCHWALBE Hans Dampf Evo Super Trail 60-622 (29"x2.35) Tubeless Easy, ADDIX Soft, folding
Hinterradreifen SCHWALBE Nobby Nic Evo Super Trail 60-622 (29"x2.35) Tubeless Easy, ADDIX SpeedGrip, folding
Cockpit
Steuersatz FSA 1.5 integrated
Vorbau RACE FACE Ride 35 - diam 28.6 mm / bar bore 35 mm / 6° / length 50 mm
Lenker RACE FACE Ride 35 RiseBar - diam 35 mm / rise 20 mm / width 760 mm
Griffe KLS Poison
Sattelstütze KS Rage-i Remote Telescopic - diam 30.9 mm / length 495 mm, travel 170 mm
Sattel fi’zi:k Taiga, S-alloy rails
