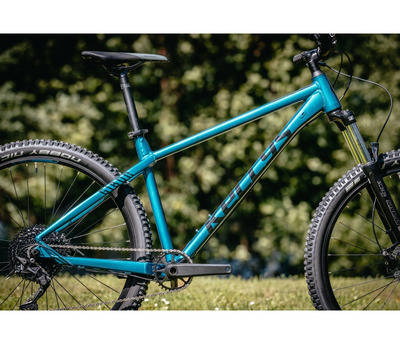

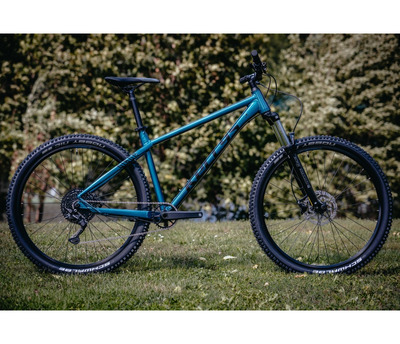

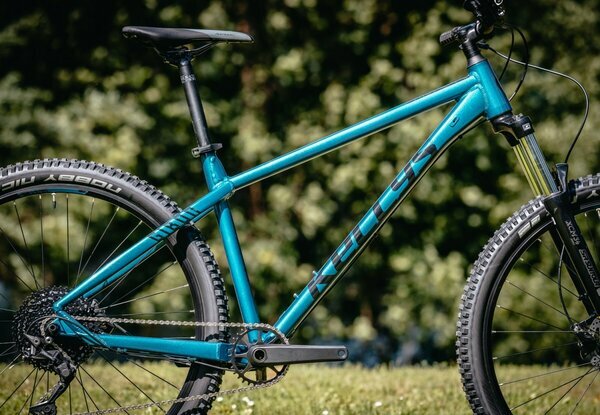

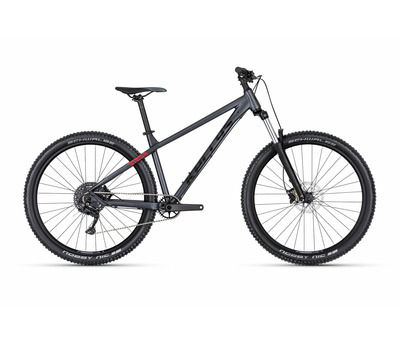

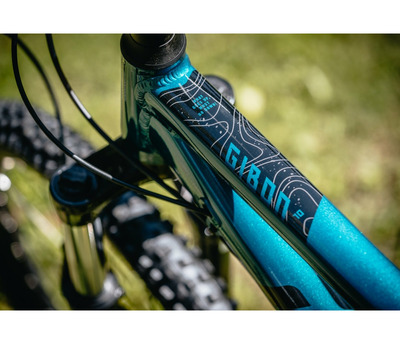

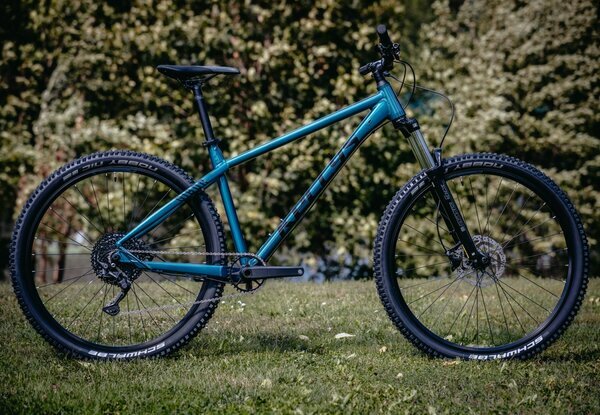

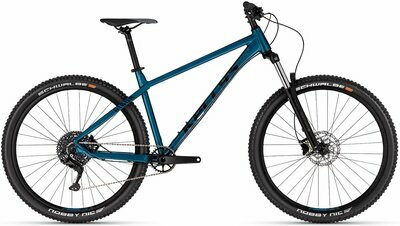

GIBON 10 29"
Rahmensatz

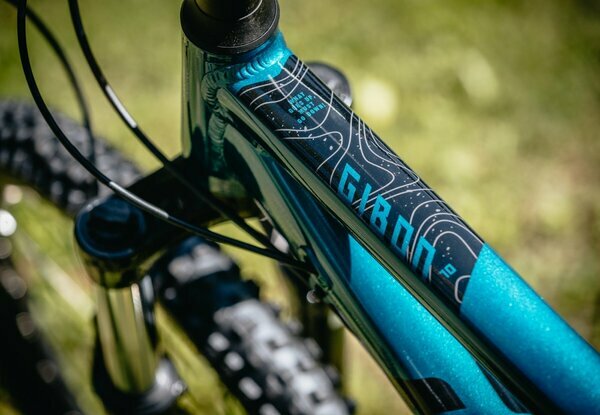

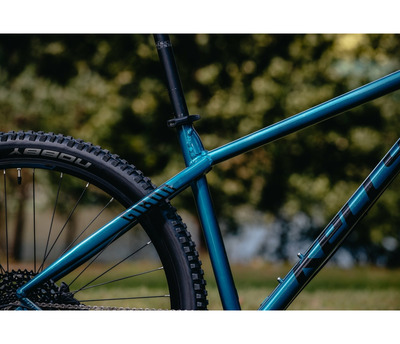

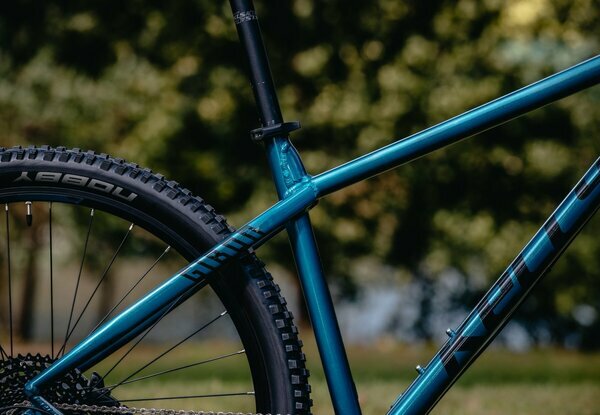

Rahmen KELLYS Dynamic Trail 29, tapered HT, internal routing, 12x148 mm Boost thru axle
Gabel SR SUNTOUR XCM34 DS (29) Boost, 130 mm, coil spring / 15 mm thru axle
Rahmengrössen M / L

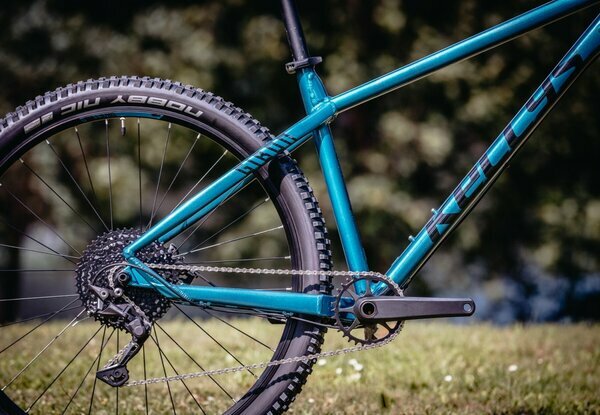

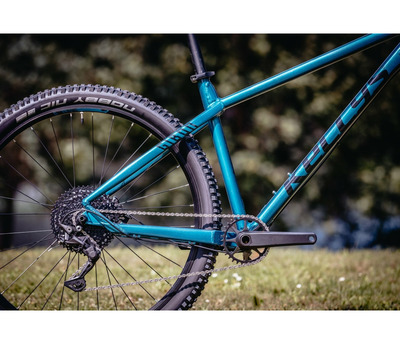

Drive
Kurbelgarnitur SHIMANO Cues U4000-1 (32T) - length 175 mm
Schaltwerk SHIMANO Cues U4000 (direct mount)
Schalthebel SHIMANO Cues SL-U4000-9 Rapidfire Plus
Gänge 9
Kassetenzahnkranz SHIMANO Linkglide CS-LG300-9 (11-46T)
Kette SHIMANO Linkglide CN-LG500 (110 links)
Innenlager cartridge (122 mm)
Pedale KLS Flat - plastic platform
Freins
Bremsen SHIMANO MT200 Hydraulic Disc
Bremshebel SHIMANO BL-MT200
Bremsscheiben 180 mm front / 180 mm rear
Räder
Naben SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Felgen KLS Draft Disc 622x21 (32 holes)
Speichen stainless steel black
Reifen SCHWALBE Nobby Nic Performance 60-622 (29x2.35) ADDIX
Steckachse SR SUNTOUR 15x110 mm front / NOVATEC 12x170 mm rear
Cockpit
Steuersatz 1.5 integrated
Vorbau KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
Lenker KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / width 760 mm
Griffe kraton
Sattelstütze KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
Sattel KLS Avenger
