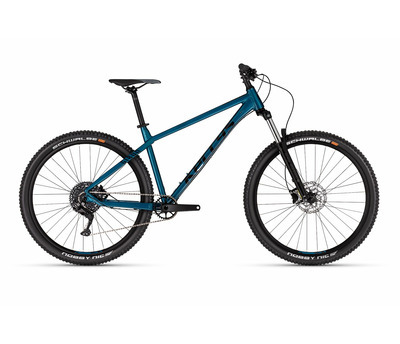

GIBON 10 29"
Rahmensatz
Rahmen KELLYS Dynamic Trail 29, tapered HT, internal routing, 12x148 mm Boost thru axle
Gabel SR SUNTOUR XCM34 (29) Boost, 130 mm, coil spring / 15 mm thru axle
Rahmengrössen M / L
Drive
Kurbelgarnitur SAMOX (32T) - length 175 mm
Schaltwerk SHIMANO Deore M5120 (direct mount)
Schalthebel SHIMANO Deore M4100-R Rapidfire Plus
Gänge 10
Kassetenzahnkranz SUNRACE MS2-10 (11-46T)
Kette KMC X10 EL (110 links)
Innenlager SAMOX cartridge
Pedale KLS Flat - plastic platform
Freins
Bremsen SHIMANO MT200 Hydraulic Disc
Bremshebel SHIMANO BL-MT200
Bremsscheiben 180 mm front / 180 mm rear
Räder
Naben SHIMANO MT400-B Disc Center Lock (32 holes)
Felgen KLS Draft Disc 622x21 (32 holes)
Speichen stainless steel black
Reifen SCHWALBE Nobby Nic Performance 60-622 (29x2.35) ADDIX
Steckachse SR SUNTOUR 15x110 mm front / NOVATEC 12x170 mm rear
Cockpit
Steuersatz 1.5 integrated
Vorbau KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / lenght 45 mm
Lenker KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / width 760 mm
Griffe kraton
Sattelstütze KLS Active - diam 30.9 mm / length 400 mm
Sattel KLS Avenger
