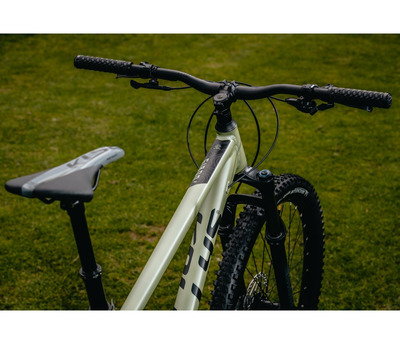

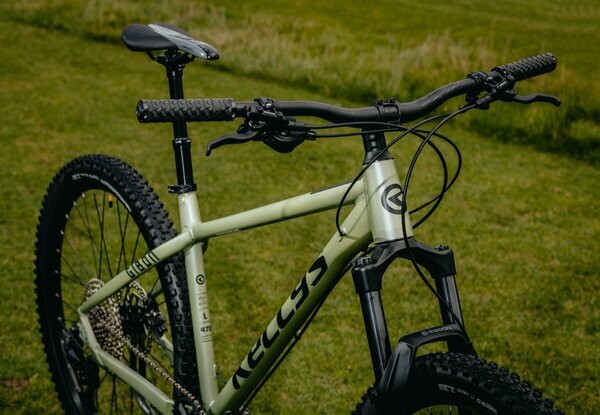

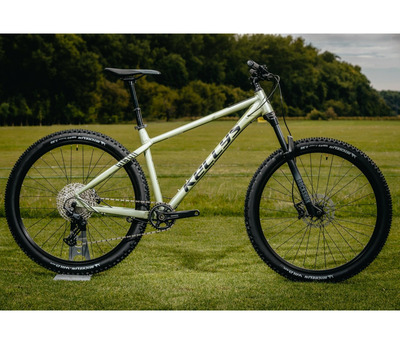

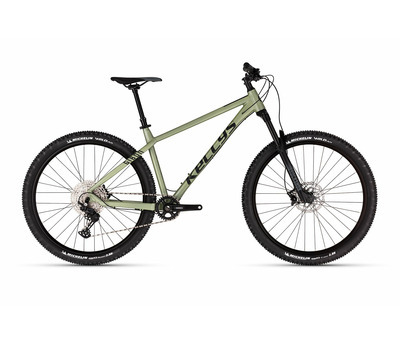

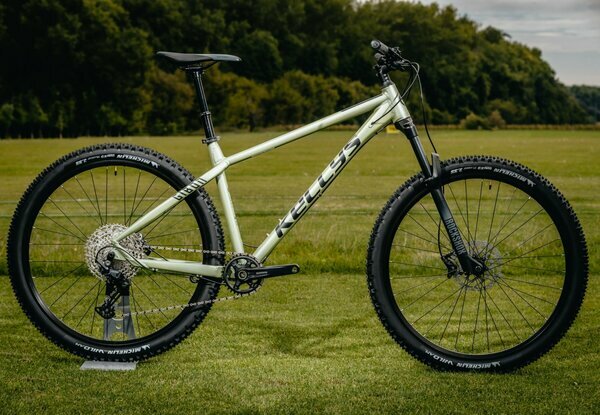

GIBON 30 29"
Rahmensatz

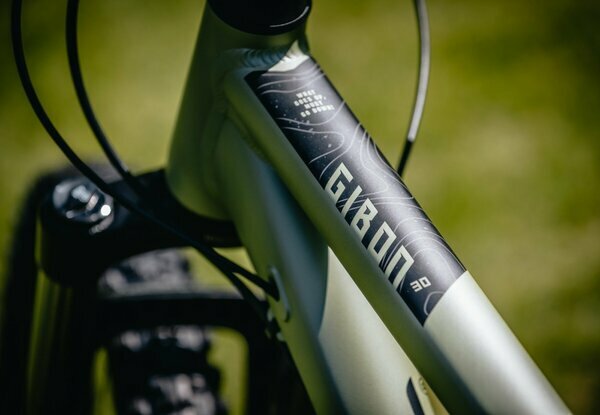

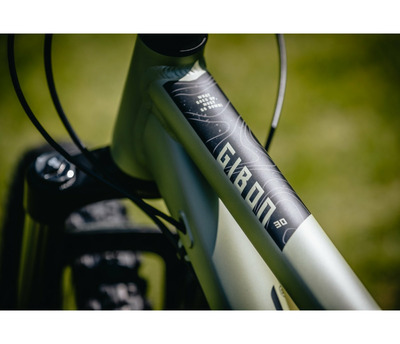

Rahmen KELLYS Dynamic Trail 29, tapered HT, internal routing, 12x148 mm Boost thru axle
Gabel ROCK SHOX Recon Silver RL (29) Boost, 140 mm, Solo Air / Motion Control / Maxle Stealth 15 mm thru axle
Rahmengrössen M / L

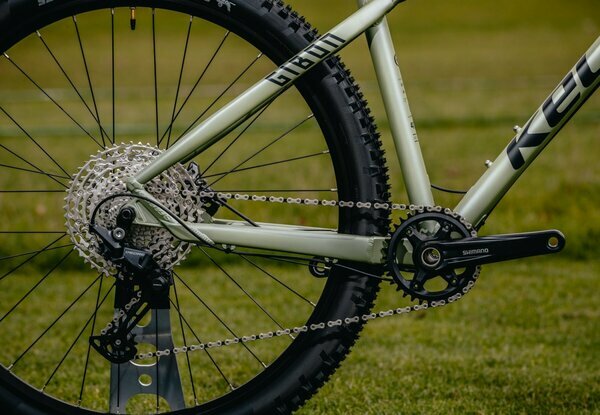

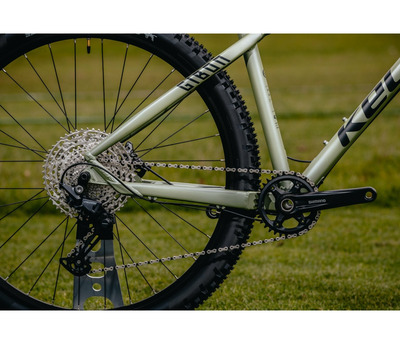

Drive
Kurbelgarnitur SHIMANO Deore (021) MT510-1 (32T) - length 175 mm
Schaltwerk SHIMANO Deore M6100 (direct mount)
Schalthebel SHIMANO Deore M6100-R Rapidfire Plus
Gänge 12
Kassetenzahnkranz SHIMANO CS-M6100-12 (10-51T)
Kette KMC X12 (114 links)
Innenlager SRAM DUB PressFit
Pedale KLS Flat - plastic platform
Freins
Bremsen SHIMANO Deore MT410 Hydraulic Disc
Bremshebel SHIMANO Deore BL-M4100
Bremsscheiben 180 mm front / 180 mm rear
Räder
Naben SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Felgen KLS Valor 3 Disc 622x30 (32 holes)
Speichen stainless steel black
Reifen MICHELIN Wild AM Competition Line 60-622 (29"x2.35) Tubeless Ready or KENDA Amrak 61-622 (29"x2.40)
Steckachse ROCK SHOX Maxle Stealth 15x110 mm front / NOVATEC 12x148 mm rear

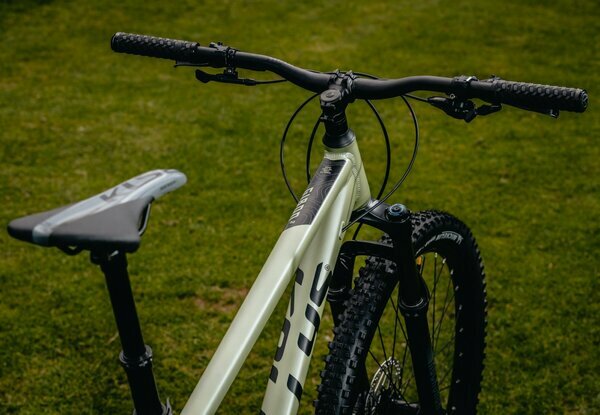

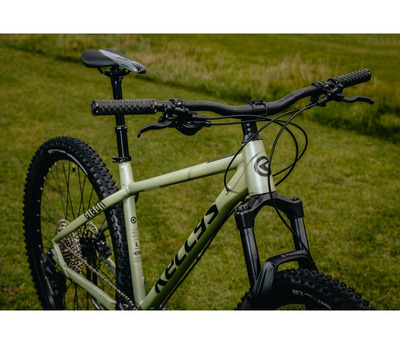

Cockpit
Steuersatz 1.5 integrated
Vorbau KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
Lenker KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / width 760 mm
Griffe KLS Poison
Sattelstütze KS Rage-i Remote Telescopic - diam 30.9 mm / length 442 mm, travel 150 mm
Sattel KLS Avenger
