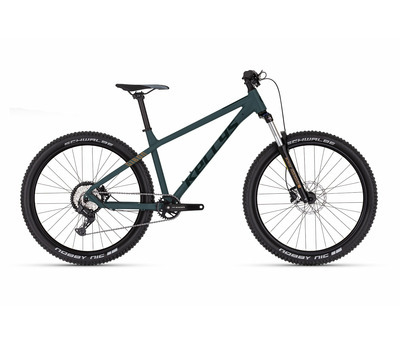

GIBON 05 EBONY GREEN 27.5"
GIBON 05 EBONY GREEN 27.5" 3314291

GIBON 05
EBONY GREEN 27.5"

Trail bike

Search for a dealer

Frame set

frame frame
KELLYS Dynamic Trail 27.5", 1.5" tapered HT, internal routing
fork fork
SR SUNTOUR XCM32 NLO DS (27.5") Boost, 120 mm, coil / Speed Lockout
frame size frame size
M

Drive

crankset crankset
SHIMANO Essa U2000-1 (32T) - length 175 mm
rear derailleur rear derailleur
microSHIFT AdventX M6205
shifters shifters
microSHIFT AdventX M9505 Xpress Shifter
speed speed
10
cassette sprocket cassette sprocket
microSHIFT CSH104 (11-48T)
chain chain
KMC Z10
b.b.parts b.b.parts
cartridge (122.5 mm)
pedals pedals
plastic platform

Brakes

brakes brakes
SHIMANO MT200 Hydraulic Disc
brake levers brake levers
SHIMANO BL-MT200
brake rotors brake rotors
180 mm front / 180 mm rear

Wheels

hubs hubs
KLS Firework Disc (32 holes)
rims rims
KLS Draft 23 Disc 584x23 (32 holes)
spokes spokes
stainless steel black
tyres tyres
SCHWALBE Nobby Nic Performance 60-584 (27.5"x2.35) ADDIX

Cockpit

head parts head parts
1.5 integrated
stem stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / 5° / length 40 mm
handlebar handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 760 mm
grips grips
kraton
seat post seat post
KLS Active - diam 30.9 mm / length 400 mm
saddle saddle
KLS Avenger

weight weight
14.80 kg (M)

The weight corresponds to the most common model specification in size M. The actual weight of your bike may vary.

Geometria GIBON 05 EBONY GREEN 27.5"

We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
