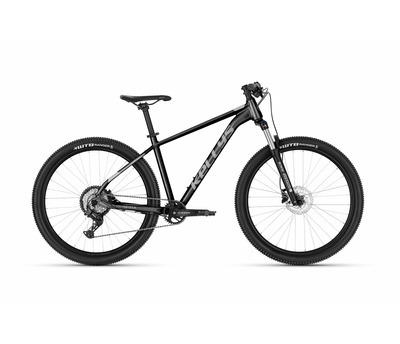

SPIDER X50 GRAPHITE GREY 27.5"
Frame set
frame KELLYS Alutec RRC 27.5" - Race Ready Concept
fork SR SUNTOUR XCM32 NLO DS (27.5"), 100 mm, coil / Speed Lockout
frame size S / M
Drive
crankset SHIMANO Essa U2000-1 (32T) - length 170 mm (S), 175 mm (M)
rear derailleur SHIMANO Essa U2000 (direct mount)
shifters SHIMANO SL-M315-8R Rapidfire Plus
speed 8
cassette sprocket SHIMANO CS-HG400-8 (11-45T)
chain KMC Z8 (108 links)
b.b.parts cartridge (122 mm)
pedals plastic
Brakes
brakes SHIMANO MT200 Hydraulic Disc
brake levers SHIMANO BL-MT200
brake rotors 160 mm front / 160 mm rear
Wheels
hubs SHIMANO TX505 Disc Center Lock (32 holes)
rims KLS Draft 23 Disc 584x23 (32 holes)
spokes steel
tyres KENDA Booster 56-584 (27.5" x 2.20)
Cockpit
head parts semi-integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 60 mm (S - M)
handlebar KLS Active FlatBar - diam 31.8 mm / width 680 mm (S), 720 mm (M)
grips KLS Advancer
seat post KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M)
saddle KLS Sentinel 2
