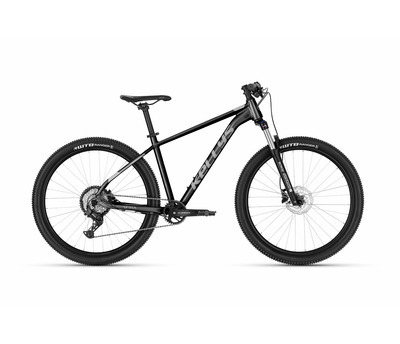

SPIDER X50 GRAPHITE GREY 26"
Frame set
frame KELLYS Alutec RRC 26" - Race Ready Concept
fork SR SUNTOUR XCM32 NLO DS (26"), 100 mm, coil / Speed Lockout
frame size XXS / XS
Drive
crankset SHIMANO Essa U2000-1 (32T) - length 170 mm (XXS - XS)
rear derailleur SHIMANO Essa U2000 (direct mount)
shifters SHIMANO SL-M315-8R Rapidfire Plus
speed 8
cassette sprocket SHIMANO CS-HG400-8 (11-45T)
chain KMC Z8 (108 links)
b.b.parts cartridge (122 mm)
pedals plastic
Brakes
brakes SHIMANO MT200 Hydraulic Disc
brake levers SHIMANO BL-MT200
brake rotors 160 mm front / 160 mm rear
Wheels
hubs SHIMANO TX505 Disc Center Lock (32 holes)
rims KLS Draft 23 Disc 559x23 (32 holes)
spokes steel
tyres WTB Nano Comp 52-559 (26"x2.10)
Cockpit
head parts semi-integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 60 mm (XXS - XS)
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 640 mm (XXS - XS)
grips KLS Advancer
seat post KLS Active - diam 30.9 mm / length 350 mm (XXS - XS)
saddle KLS Sentinel 2
