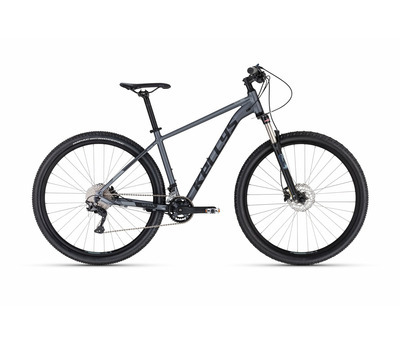

SPIDER 80 29"
Mountain bike
Frame set
frame KELLYS Alutec RRC 29 - Race Ready Concept
fork SR SUNTOUR XCR32 RLR Air (29), 100 mm, air / Remote Speed Lockout
frame size S / M / L
Drive
crankset SAMOX (36x26T) - length 170 mm (S), 175 mm (M - L)
rear derailleur SHIMANO Deore M4120 (direct mount)
front derailleur
SHIMANO Deore M6025 (34.9 mm)
shifters SHIMANO Deore SL-M5100-L / M4100-R Rapidfire Plus
speed 20
cassette sprocket SHIMANO CS-HG50-10 (11-36T)
chain KMC X10 EL (110 links)
b.b.parts cartridge (122.5 mm)
pedals alloy
Brakes
brakes SHIMANO MT200 Hydraulic Disc or KLS 1600 Hydraulic Disc
brake levers SHIMANO BL-MT200 or KLS 1600
brake rotors 160 mm front / 160 mm rear
Wheels
hubs KT Disc / SHIMANO TX505 Disc Center Lock or KT Disc Center Lock (32 holes)
rims KLS Draft Disc 622x21 (32 holes)
spokes stainless steel
tyres IMPAC Ridgepac 54-622 (29x2.10)
Cockpit
head parts semi-integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm (S - M), 90 mm (L)
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 660 mm (S), 680 mm (M - L)
grips KLS Advancer 2Density
seat post KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
saddle KLS Sentinel 2
