Frame set

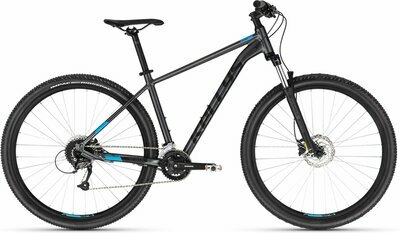

frame KELLYS Alutec RRC 29" - Race Ready Concept
fork SR SUNTOUR XCM32 NLO DS (29"), 100 mm, coil / Speed Lockout
frame size S / M / L / XL
Drive
crankset SHIMANO Alivio MT101-2 (36x22T) - length 170 mm (S), 175 mm (M - XL)
rear derailleur SHIMANO Altus M2000 (direct mount) alebo microSHIFT Marvo M46
front derailleur
SHIMANO Altus M2020 (34.9 mm)
shifters SHIMANO Altus SL-M2010-9 Rapidfire Plus
speed 18
cassette sprocket SHIMANO CS-HG200-9 alebo DTS-9 (11-34T)
chain KMC X9 (110 links)
b.b.parts cartridge (122.5 mm)
pedals alloy
Brakes
brakes SHIMANO MT200 Hydraulic Disc
brake levers SHIMANO BL-MT200
brake rotors 160 mm front / 160 mm rear
Wheels
hubs SHIMANO TX505 Disc Center Lock (32 holes)
rims KLS Draft Disc 622x21 (32 holes)
spokes steel
tyres IMPAC Ridgepac or WTB Nano 54-622 (29"x2.10)
Cockpit
head parts semi-integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm (S - M), 90 mm (L - XL)
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 660 mm (S), 680 mm (M - XL)
grips KLS Advancer 2Density
seat post KLS Active - diam 30.9mm / length 350 mm (S), 400 mm (M - XL)
saddle KLS Sentinel 2
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
