Frame set

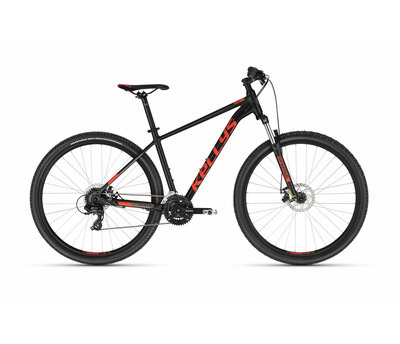

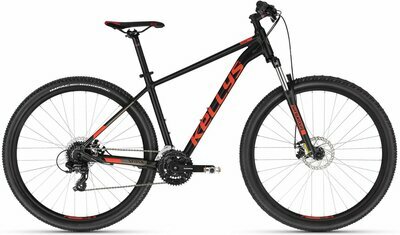

frame KELLYS Alutec RRC 29" - Race Ready Concept
fork SR SUNTOUR XCE28 DS (29"), 100 mm, coil spring
frame size S / M / L / XL
Drive
crankset SHIMANO TY301 (42x34x24T) - length 170 mm (S), 175 mm (M - XL)
rear derailleur SHIMANO TX800 (direct mount)
front derailleur
SHIMANO TY600 (34.9 mm)
shifters SHIMANO ST-EF510-8 EZ-fire Plus
speed 24
cassette sprocket SHIMANO CS-HG200-8 (12-32T)
chain KMC Z8 (110 links)
b.b.parts cartridge (122 mm)
pedals alloy
Brakes
brakes mechanical disc
brake levers SHIMANO ST-EF510 EZ-fire Plus
brake rotors 160 mm front / 160 mm rear
Wheels
hubs KLS Firework Disc (32 holes)
rims KLS Draft Disc 622x21 (32 holes)
spokes steel
tyres IMPAC Ridgepac or WTB Nano 54-622 (29"x2.10)
Cockpit
head parts semi-integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm (S - M), 90 mm (L - XL)
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 660 mm (S), 680 mm (M - XL)
grips KLS Advancer
seat post KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - XL)
saddle KLS Sentinel 2
