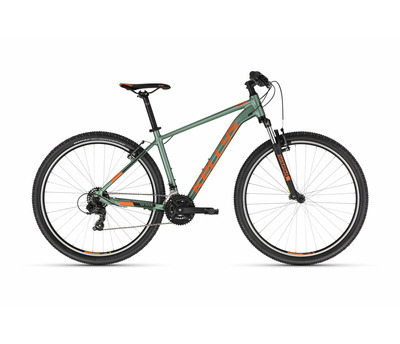

SPIDER 10 GREEN 29"
Frame set
frame KELLYS Alutec RRC 29 - Race Ready Concept
fork SR SUNTOUR XCE28 (29), 80 mm, coil spring
frame size M / L
Drive
crankset PROWHEEL (42x34x24T) - length 170 mm
rear derailleur SHIMANO TY300 (direct mount)
front derailleur
SHIMANO TY300 (34.9 mm)
shifters SHIMANO ST-EF41-7 EZ-fire Plus
speed 21
cassette sprocket SHIMANO CS-HG200-7 (12-32T)
chain KMC Z7 (110 links)
b.b.parts cartridge (122 mm)
pedals plastic
Brakes
brakes APSE V-brake
brake levers SHIMANO ST-EF41 EZ-fire Plus
Wheels
hubs alloy / SHIMANO TY500-7 (32 holes)
rims KLS Draft 622x21 (32 holes)
spokes steel
tyres IMPAC Ridgepac 54-622 (29x2.10)
Cockpit
head parts semi-integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm (M), 90 mm (L)
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width680 mm
grips KLS Advancer
seat post KLS Active - diam 30.9 mm / length 300 mm (M), 350 mm (L)
saddle KLS Sentinel 2
