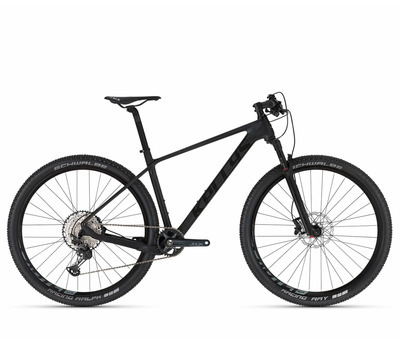

HACKER 50
29"

Carbon XC bike

Search for a dealer

Frame set

frame frame
KELLYS iCAD Carbon Pro 29", tapered HT, internal routing, 12x148 mm Boost thru axle
fork fork
ROCK SHOX Reba RL (29") Boost, 100 mm, Solo Air / Motion Control / OneLoc Remote Lockout / Maxle Stealth 15 mm thru axle
frame size frame size
M / L

Drive

crankset crankset
SHIMANO SLX M7100-1 Hollowtech II (34T) - length 175 mm
rear derailleur rear derailleur
SHIMANO Deore XT M8100 (direct mount)
shifters shifters
SHIMANO SLX SL-M7100-R Rapidfire Plus
speed speed
12
cassette sprocket cassette sprocket
SHIMANO CS-M7100-12 (10-51T)
chain chain
KMC X12
b.b.parts b.b.parts
SHIMANO Press-Fit BB-MT500-PA
pedals pedals
plastic

Brakes

brakes brakes
SHIMANO Deore M6000 Hydraulic Disc
brake levers brake levers
SHIMANO Deore BL-M6000
brake rotors brake rotors
180 mm front / 160 mm rear

Wheels

hubs hubs
SHIMANO MT400-B / MT510-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims rims
KLS Cartel Disc 622x21 (32 holes)
spokes spokes
SAPIM - stainless steel black
thru axle thru axle
ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear
front tyre front tyre
SCHWALBE Racing Ray Performance 57-622 (29"x2.25) folding
rear tyre rear tyre
SCHWALBE Racing Ralph Performance 57-622 (29"x2.25) folding

Cockpit

head parts head parts
FSA 1.5" semi-integrated
stem stem
KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / length 80 mm (M), 100 mm (L)
handlebar handlebar
KLS Advanced FlatBar - diam 31.8 mm / width 720 mm
grips grips
KLS Poison OneLockon
seat post seat post
KLS Advanced - diam 30.9 mm / length 400 mm
saddle saddle
fi´zi:k Antares R7 S-alloy rails

Veľkosť rámu HACKER 50 29"

Geometria HACKER 50 29"

We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
