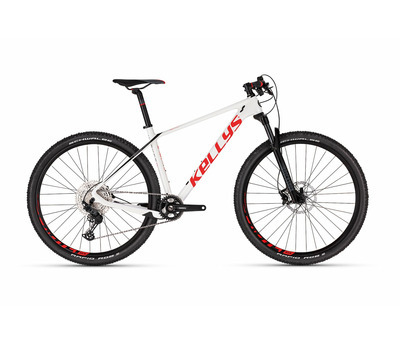

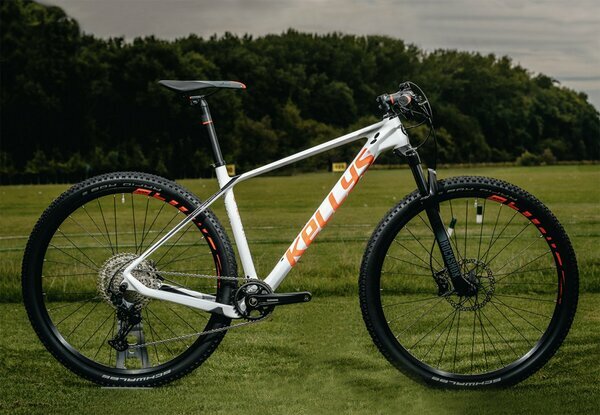

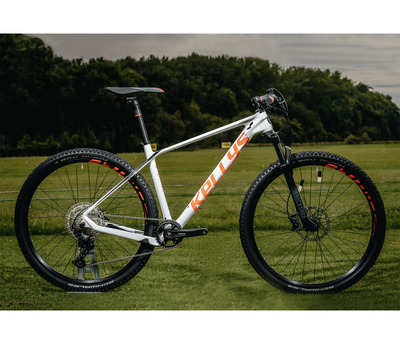

HACKER 30 29"
Carbon XC bike
Frame set

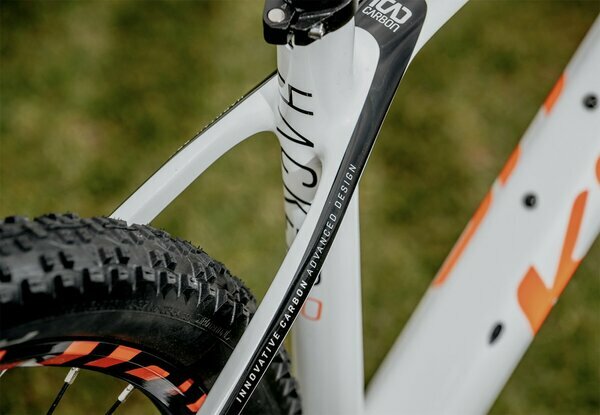

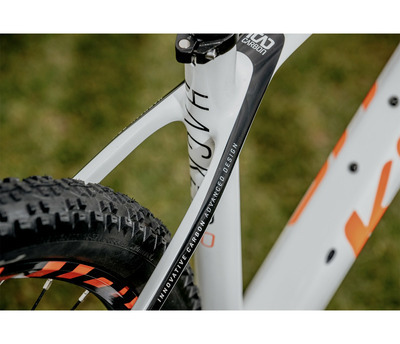

frame KELLYS iCAD Carbon Sport 29", tapered HT, internal routing, 12x148 mm Boost thru axle
fork ROCK SHOX Recon Silver RL (29") Boost, 100 mm, Solo Air / Motion Control / OneLoc Remote Lockout / Maxle Lite 15 mm thru axle
frame size S / M / L

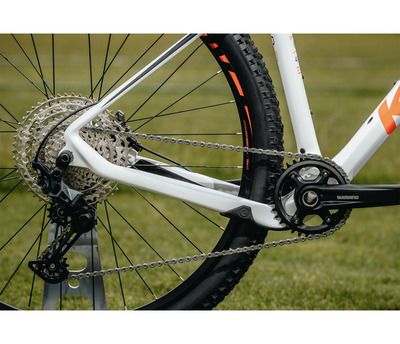

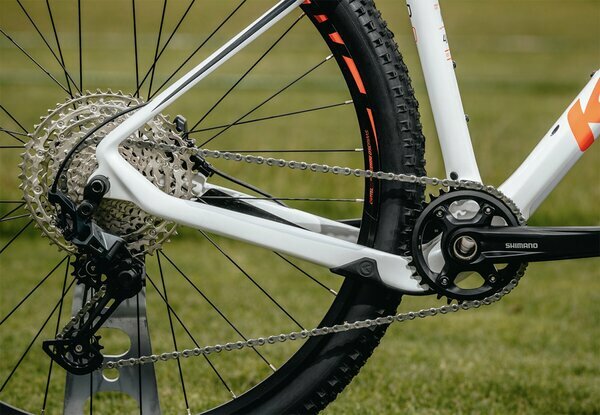

Drive
crankset SHIMANO MT610 (34T) - length 170 mm (S), 175 mm (M - L)
rear derailleur SHIMANO SLX M7100 (direct mount)
shifters SHIMANO Deore M6100-IR Rapidfire Plus (I-Spec EV)
speed 12
cassette sprocket SHIMANO CS-M6100-12 (10-51T)
chain SHIMANO CN-M6100 (114 links)
b.b.parts SHIMANO Press-Fit BB-MT500-PA
pedals plastic
Brakes
brakes SHIMANO Deore MT410 Hydraulic Disc
brake levers SHIMANO Deore BL-M4100
brake rotors 180 mm front / 160 mm rear
Wheels
hubs SHIMANO MT400-B / MT510-B Disc Center Lock (32 holes)
rims KLS Cartel Disc 622x21 (32 holes)
spokes SAPIM - stainless steel black
tyres SCHWALBE Rapid Rob 57-622 (29"x2.25)
thru axle ROCK SHOX Maxle Lite 15x110 mm front / Mr.control 12x177 mm rear

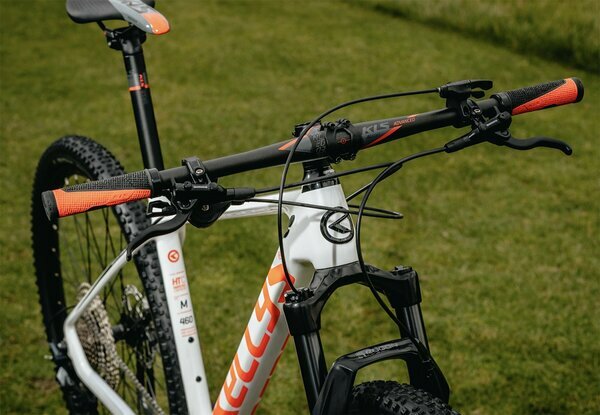

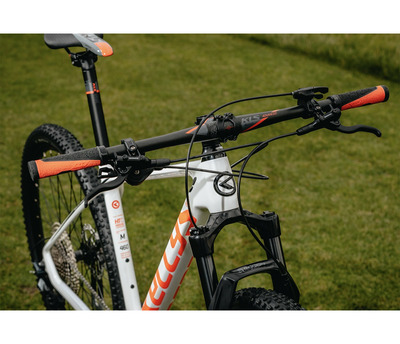

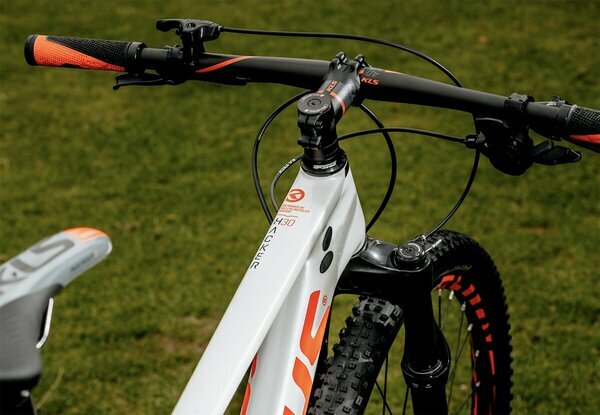

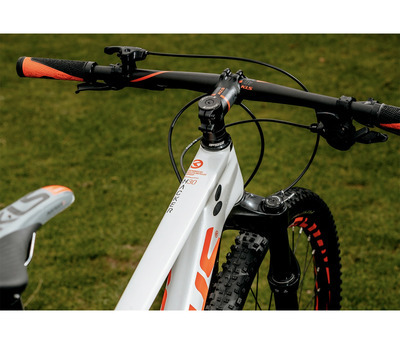

Cockpit
head parts FSA 1.5 integrated
stem KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / lenght 80 mm (S - M), 100 mm (L)
handlebar KLS Advanced FlatBar - diam 31.8 mm / width 720 mm
grips KLS Poison OneLockon
seat post KLS Advanced - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
saddle KLS Avenger
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
