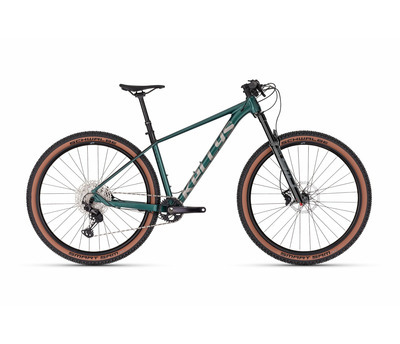

GATE X90 EMERALD GREEN 29"
Frame set
frame KELLYS Dynamic RRC 29", tapered HT, internal routing, 12x148 mm Boost thru axle
fork ROCK SHOX Sid 2P (29") Boost, 120 mm, DebonAir+ / Rush RL damper / OneLoc Remote Lockout / Maxle Stealth 15 mm thru axle
frame size S / M / L / XL
Drive
crankset SHIMANO Deore XT M8100-1 Hollowtech II (34T) - length 170 mm (S), 175 mm (M - XL)
rear derailleur SHIMANO Deore XT M8100 (direct mount)
shifters SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
speed 12
cassette sprocket SHIMANO CS-M6100-12 (10-51T)
chain KMC X12 (114 links)
b.b.parts SHIMANO SM-BB52
pedals plastic
Brakes
brakes SHIMANO Deore MT410 Hydraulic Disc
brake levers SHIMANO Deore BL-M4100
brake rotors 180 mm front / 160 mm rear
Wheels
hubs SHIMANO Deore TC-500-MS-B Disc Center Lock (28 holes)
rims KLS Segador 25 SL Disc 622x25 (28 holes)
spokes SAPIM - stainless steel black
tyres SCHWALBE Smart Sam Performance 57-622 (29"x2.25) ADDIX, Bronze Sidewall
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / 12x170 mm rear
Cockpit
head parts FSA 1.5 integrated
stem KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 5° / length 60 mm
handlebar KLS Advanced FlatBar - diam 31.8 mm / width 740 mm
grips KLS Poison OneLockon
seat post KS e20-i Remote Telescopic - diam 30.9 mm / length 418 mm, travel 125 mm
saddle KLS Avenger II
