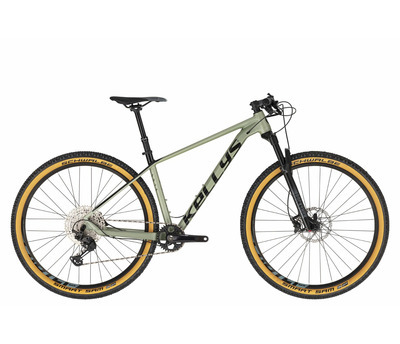

GATE 90 29"
XC bike
Frame set
frame KELLYS Dynamic RRC 29, tapered HT, internal routing, 12x148 mm Boost thru axle
fork ROCK SHOX Recon GOLD RL (29) Boost, 100 mm, DebonAir / Motion Control / OneLoc Remote Lockout / Maxle Lite 15 mm thru axle
frame size S / M / L
Drive
crankset SHIMANO Deore XT M8100-1 Hollowtech II (34T) - length 170 mm (S), 175 mm (M - L)
rear derailleur SHIMANO Deore XT M8100 (direct mount)
shifters SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
speed 12
cassette sprocket SHIMANO CS-M6100-12 (10-51T)
chain KMC X12
b.b.parts SRAM DUB PressFit
pedals plastic
Brakes
brakes SHIMANO Deore MT410 hydraulic disc
brake levers SHIMANO Deore BL-M4100
brake rotors 180 mm front / 160 mm rear
Wheels
hubs SHIMANO MT400-B / MT510-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Cartel Disc 622x21 (32 holes)
spokes SAPIM - stainless steel black
tyres SCHWALBE Smart Sam Performance 57-622 (29x2.25) ADDIX
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / NOVATEC 12x148 mm rear
Cockpit
head parts FSA 1.5 integrated
stem KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / lenght 80 mm (S - M), 100 mm (L)
handlebar KLS Advanced FlatBar - diam 31.8 mm / width 720 mm
grips KLS Poison OneLockon
seat post KS E20-I Remote Telescopic - diam 30.9 mm / length 485 mm, travel 125 mm
saddle fi´zi:k Taiga S-alloy rails
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
