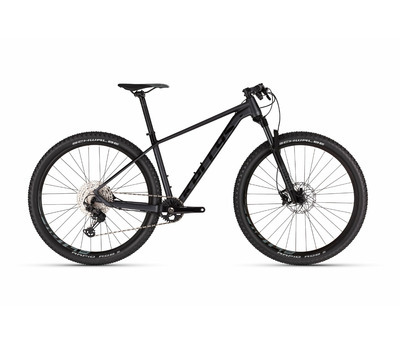

GATE 70 29"
Frame set
frame KELLYS Dynamic RRC 29, tapered HT, internal routing, 12x148 mm Boost thru axle
fork ROCK SHOX Recon GOLD RL (29) Boost, 100 mm, DebonAir / Motion Control / OneLoc Remote Lockout / Maxle Lite 15 mm thru axle
frame size M / L / XL
Drive
crankset SHIMANO Deore XT M8100-1 Hollowtech II (34T) - length 175 mm
rear derailleur SHIMANO Deore XT M8100 (direct mount)
shifters SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
speed 12
cassette sprocket SHIMANO CS-M6100-12 (10-51T)
chain KMC X12 (114 links)
b.b.parts SRAM DUB PressFit
pedals plastic
Brakes
brakes SHIMANO Deore MT410 Hydraulic Disc
brake levers SHIMANO Deore BL-M4100
brake rotors 180 mm front / 160 mm rear
Wheels
hubs SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Cartel Disc 622x21 (32 holes)
spokes stainless steel black
tyres SCHWALBE Rapid Rob 57-622 (29x2.25) K-Guard
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / NOVATEC 12x148 mm rear
Cockpit
head parts FSA 1.5 integrated
stem KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / length 80 mm (M), 100 mm (L - XL)
handlebar KLS Advanced FlatBar - diam 31.8 mm / width 720 mm
grips KLS Poison OneLockon
seat post KLS Active - diam 30.9 mm / length 400 mm
saddle KLS Avenger
