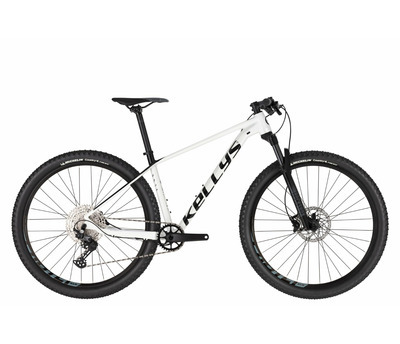

GATE 30 WHITE 29"
Frame set
frame KELLYS Dynamic RRC 29, tapered HT, internal routing, 12x148 mm Boost thru axle
fork ROCK SHOX Recon Silver RL (29) Boost, 100 mm, Solo Air / Motion Control / OneLoc Remote Lockout / Maxle Lite 15 mm thru axle
frame size S / M / L
Drive
crankset SAMOX (34T) - length 170 mm (S), 175 mm (M - L)
rear derailleur SHIMANO Deore M6100 (direct mount)
shifters SHIMANO Deore SL-M6100-IR Rapidfire Plus (I-Spec EV)
speed 12
cassette sprocket SHIMANO CS-M6100-12 (10-51T)
chain KMC X12 (114 links)
b.b.parts SAMOX cartridge
pedals plastic
Brakes
brakes SHIMANO Deore MT410 Hydraulic Disc
brake levers SHIMANO Deore BL-M4100
brake rotors 180 mm front / 160 mm rear
Wheels
hubs SHIMANO MT400-B / SHIMANO Deore MT410-B Disc Center Lock (32 holes)
rims KLS Cartel Disc 622x21 (32 holes)
spokes stainless steel black
tyres MICHELIN Country Race´r 54-622 (29x2.10)
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / NOVATEC 12x170 mm rear
Cockpit
head parts FSA 1.5 integrated
stem KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / lenght 80 mm (S - M), 100 mm (L)
handlebar KLS Advanced FlatBar - diam 31.8 mm / width 720 mm
grips KLS Advancer 2Density
seat post KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
saddle KLS Avenger
