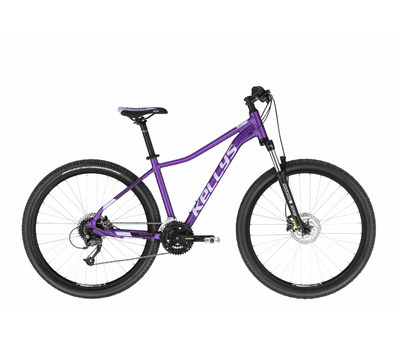

Frame set
frame KELLYS KLC 26 - Lady Sport Geometry
fork SR SUNTOUR XCM HLO DS (26), 100 mm, coil / Speed Lockout
frame size XS / S
Drive
crankset SHIMANO TY501 (42x34x24T) - length 170 mm
rear derailleur SHIMANO Altus M310 (direct mount)
front derailleur
SHIMANO TY600 (34.9 mm)
shifters SHIMANO SL-M315 Rapidfire Plus
speed 24
cassette sprocket SHIMANO CS-HG200-8 (12-32T)
chain KMC Z8 (110 links)
b.b.parts cartridge (122 mm)
pedals alloy
Brakes
brakes SHIMANO MT200 Hydraulic Disc or KLS 1600 Hydraulic Disc
brake levers SHIMANO BL-MT200
brake rotors 160 mm front / 160 mm rear
Wheels
hubs SHIMANO TX505 Disc Center Lock (32 holes)
rims KLS Draft Disc 559x21 (32 holes)
spokes steel
tyres IMPAC Ridgepac or WTB Nano 54-622 (29x2.10)
Cockpit
head parts semi-integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 620 mm (XS), 660 mm (S)
grips KLS Advancer
seat post KLS Active - diam 30.9 mm / length 350 mm
saddle KLS Ebony Women
