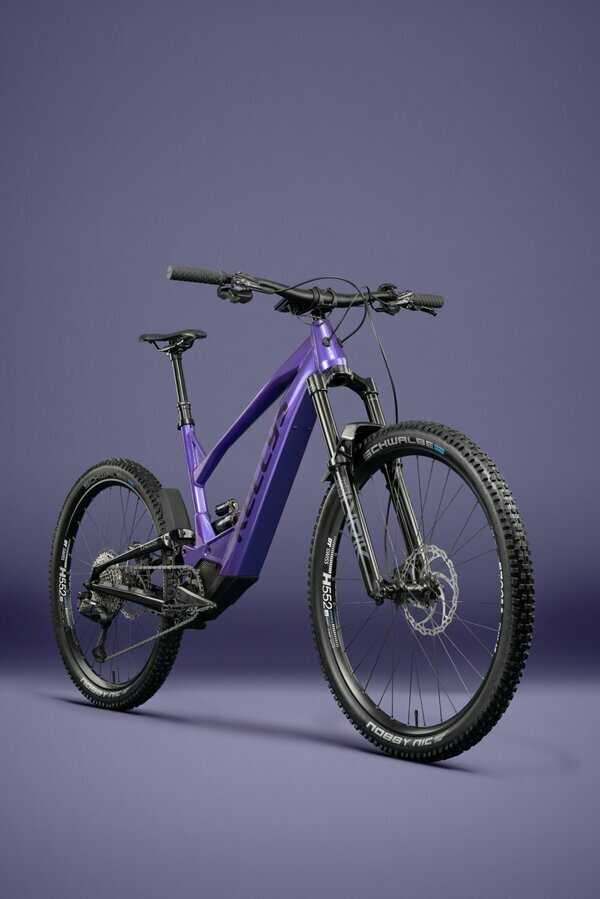

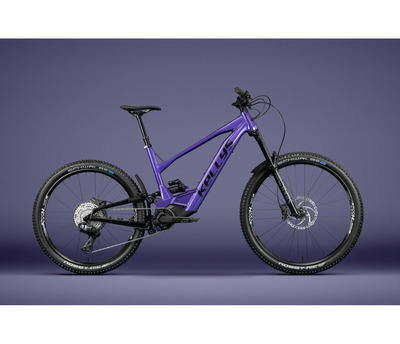

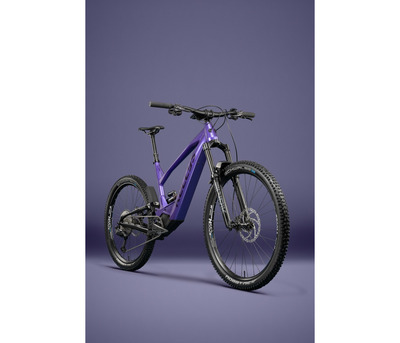

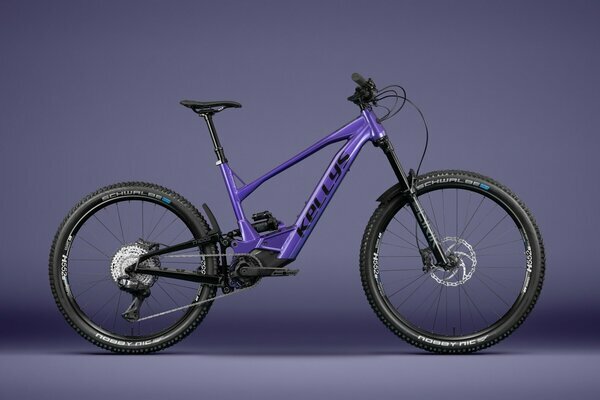

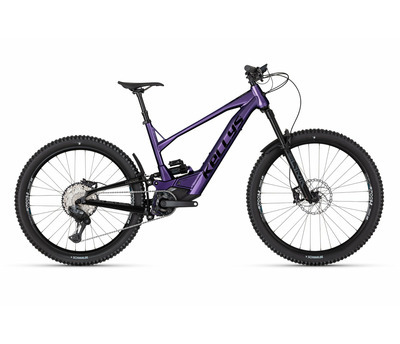

THEOS RS90 P ROYAL PURPLE 29/27.5" 900 Wh
NewFrame set

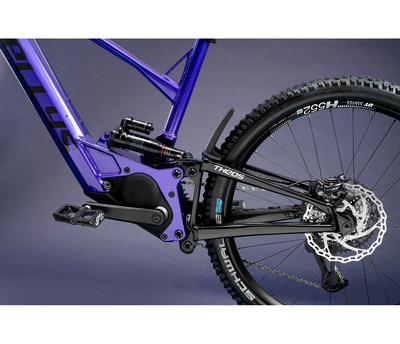

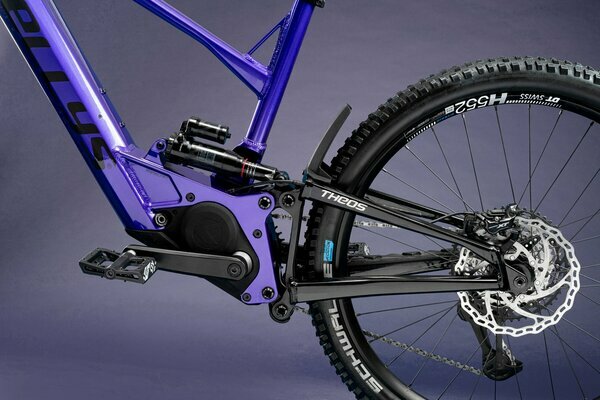

frame KELLYS THEOS RS-series - Superlight design, advanced robotic welded Al 6061-T6 / Designed & manufactured in EUROPE / Think Link® suspension system, 140 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29 / 27.5"+ wheelset, 12x148 mm Boost thru axle

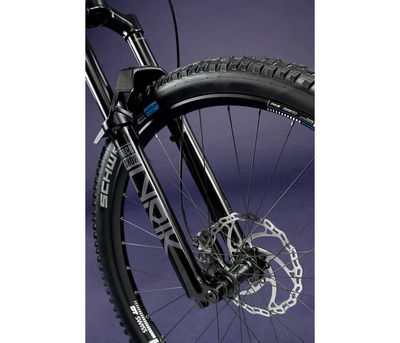

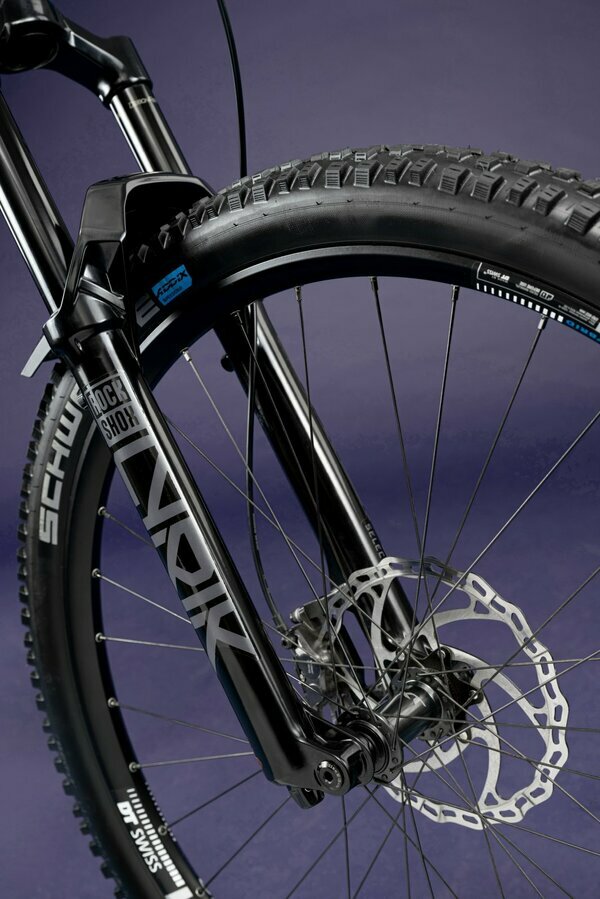

fork ROCK SHOX Lyric Select (29") Boost, 160 mm, DebonAir+ / Charger RC damper / Maxle Stealth 15 mm thru axle

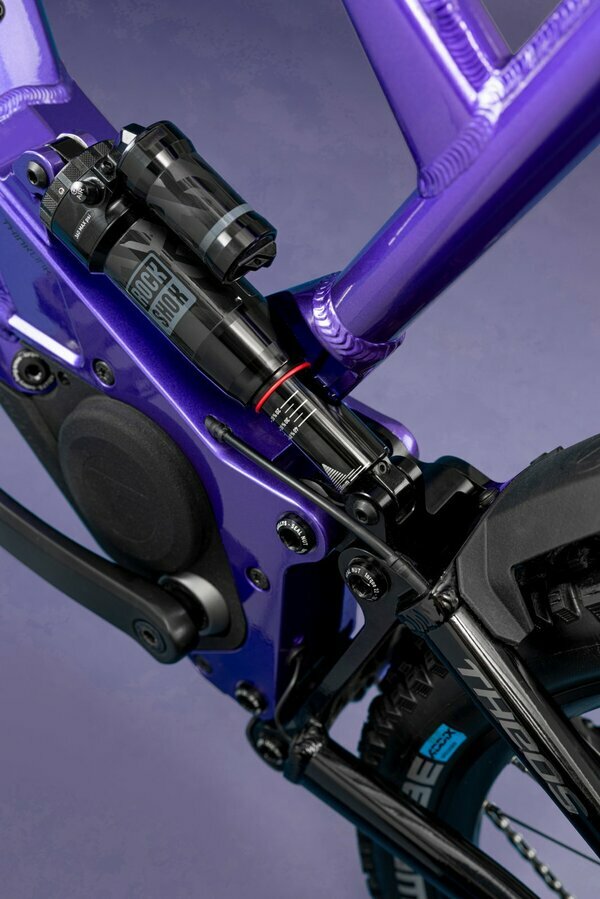

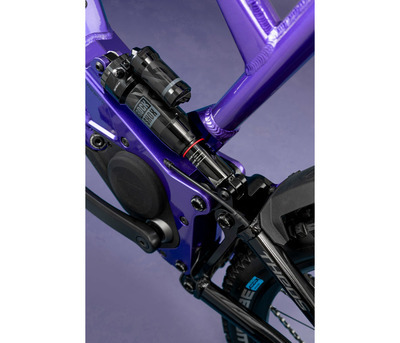

rear shock ROCK SHOX Super Deluxe, DebonAir+ / R Hydraulic Bottom Out (210x55 mm)
frame size M / L
Drive
motor PANASONIC GXM AMXXPRO - Compact, High Torque & Low weight drive unit, max torque 105 Nm, weight 2.56 kg
battery KELLYS K2 AMXXPRO CARBON 900 Wh - superhigh energy density 257 Wh/kg, weight 3.5 kg, capacity 25 Ah, co-developed by KELLYS-BMZ

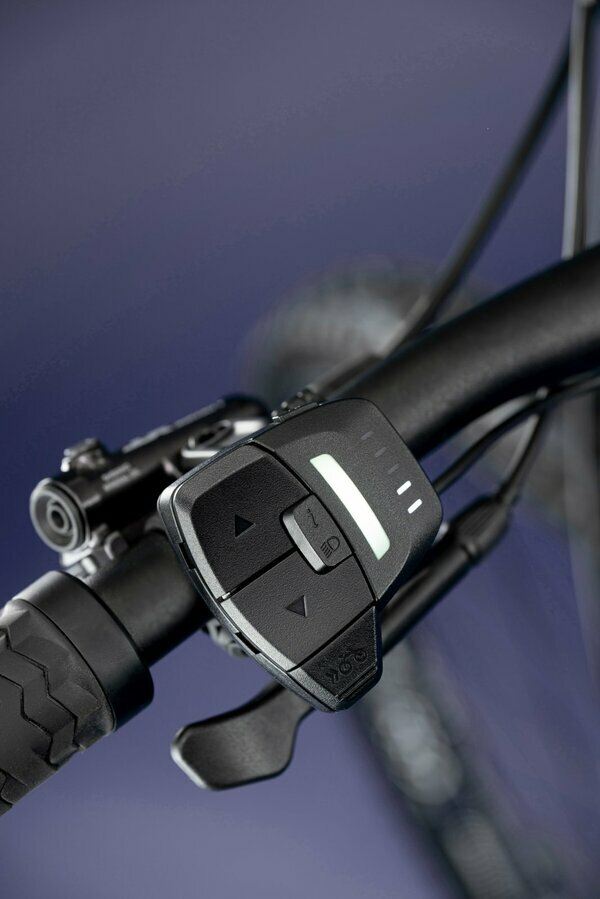

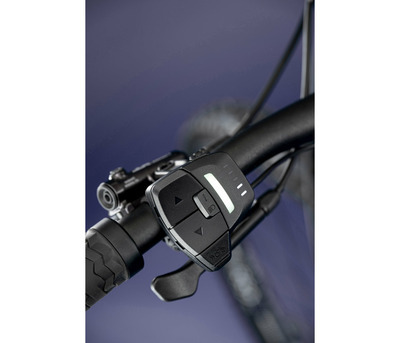

switch unit PANASONIC

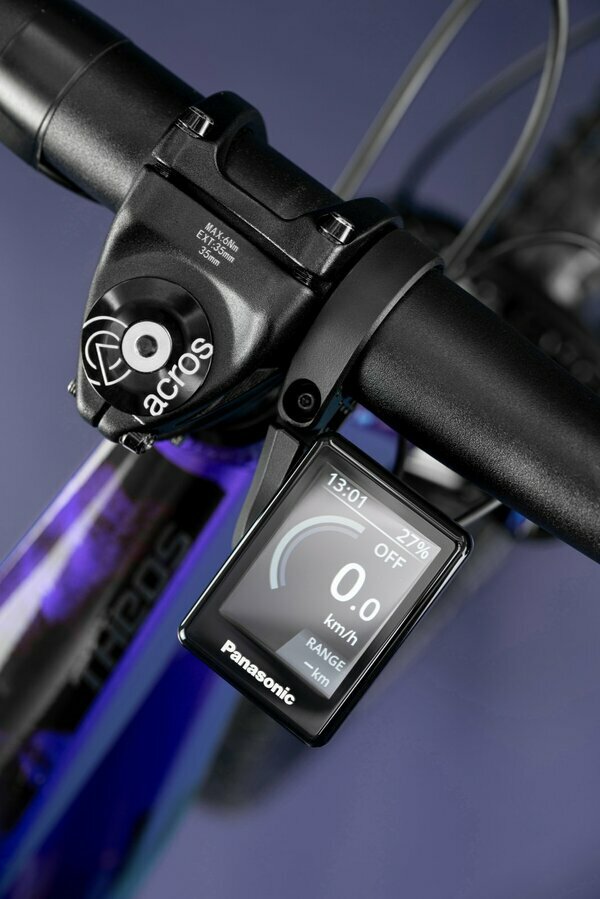

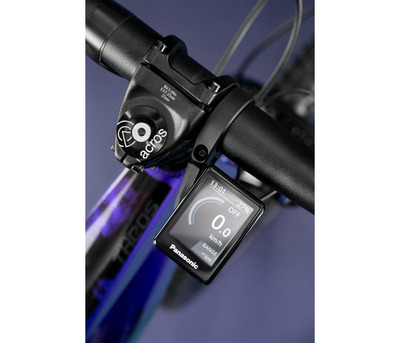

computer display PANASONIC GXM Center Display 501 - Bluetooth® 5.0 navigation, PANASONIC App conectivity
crankset MIRANDA Miranda (34T) - length 170 mm
rear derailleur SHIMANO Deore XT Di2 M8250 (direct mount)
shifters SHIMANO Deore XT Di2 SW-M8250-IR (I-Spec EV)
speed 12
cassette sprocket SHIMANO CS-M7100-12 (10-51T)
chain SHIMANO CN-M6100
pedals plastic
Brakes
brakes SHIMANO Deore XT M8120 Hydraulic Disc
brake levers SHIMANO Deore XT BL-M8100
brake rotors GALFER Fixed Disc Wave® DB004W Center Lock, 203 mm front / 203 mm rear
Wheels
hubs SHIMANO Deore XT M8210-B Disc Center Lock (32 holes)
rims DT SWISS H 552 Disc 622x30 front / DT SWISS H 552 584x30 rear (32 holes)
thru axle ROCK SHOX Maxle Stealth 15x110 mm front
rear tyre SCHWALBE Albert Evo Trail Pro 63-584 (27.5"x2.50) TLR, ADDIX Soft, folding
front tyre SCHWALBE Albert Evo Trail Pro 63-622 (29"x2.50) TLR, ADDIX Ultra Soft, folding
Cockpit
head parts ACROS 1.8" tapered semi-integrated
stem KLS Alm/En 50 - diam 28.6 mm / bar bore 35 mm / length 35 mm
handlebar KLS Alm/En 70 RiseBar - diam 35 mm / rise 20 mm / width 780 mm
grips KLS Poison OneLockon
seat post KS Rage-i Remote Telescopic - diam 30.9 mm / length 495 mm, travel 170 mm
saddle KLS Ascend
