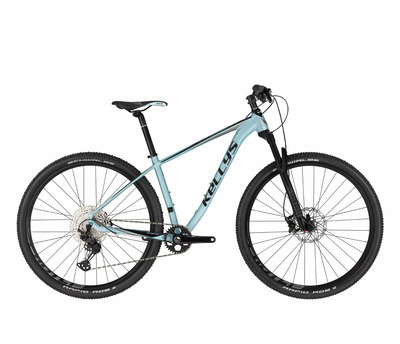

MYSTERY 90
Women's XC bike
Frame set
frame KELLYS Dynamic KLC Lite 29, LSG, tapered HT, internal routing, 12x148 mm Boost thru axle
fork ROCK SHOX Recon GOLD RL (29) Boost, 100 mm, DebonAir / Motion Control / OneLoc Remote Lockout / Maxle Lite 15 mm thru axle
frame size S / M / L
Drive
crankset SHIMANO Deore XT M8100-1 Hollowtech II (34T) - length 170 mm (S), 175 mm (M - L)
rear derailleur SHIMANO Deore XT M8100 (direct mount)
shifters SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
speed 12
cassette sprocket SHIMANO (021) CS-M6100-12 (10-51T)
chain KMC X12 (114 links)
b.b.parts SRAM DUB PressFit
pedals plastic
Brakes
brakes SHIMANO Deore (021) MT410 Hydraulic Disc
brake levers SHIMANO Deore (021) BL-M4100
brake rotors 180 mm front / 160 mm rear
Wheels
hubs SHIMANO MT400-B / MT510-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS MadMax Disc 622x18 (32 holes)
spokes stainless steel black
tyres SCHWALBE Rapid Rob 54-622 (29x2.10)
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / NOVATEC 12x148 mm rear
Cockpit
head parts FSA 1.5 integrated
stem KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / length 70 mm (S), 80 mm (M - L)
handlebar KLS Advanced RiseBar - diam 31.8 mm / rise 15 mm / width 640 mm (S - M), 660 mm (L)
grips KLS Token 3Density
seat post KLS Advanced - diam 30.9 mm / length 350 mm (S - M), 400 mm (L)
saddle KLS Diversa
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
