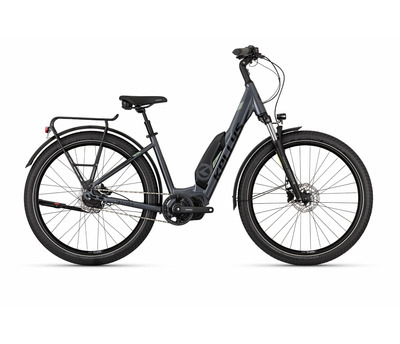

ESTIMA COMP 90 SH 630 Wh
ESTIMA COMP 90 SH 630 Wh 3299401

ESTIMA COMP 90
SH 630 Wh

City e-bike

New
Search for a dealer

Frame set

frame frame
KELLYS e-FRAME City Aluminium alloy monotube, semi-integrated battery, tapered HT, integrated kickstand mount
fork fork
SR SUNTOUR Mobie-A32 DS, 75 mm, coil spring
frame size frame size
S / M

Drive

motor motor
SHIMANO STEPS E6100, 60 Nm, 36 V
battery battery
SHIMANO BT-E8016, 630 Wh / capacity 17.5 Ah
switch unit switch unit
SHIMANO SW-E7000-L for assist
computer display computer display
SHIMANO SC-E6100
crankset crankset
SHIMANO E6100 (38T) - length 170 mm
shifters shifters
SHIMANO SW-E6010-R Di2 for shifting
speed speed
5
freewheel
for internal hub Nexus 24T
chain chain
SHIMANO CN-HG71
pedals pedals
plastic

Brakes

brakes brakes
SHIMANO MT200 Hydraulic Disc
brake levers brake levers
SHIMANO BL-MT200
brake rotors brake rotors
160 mm front / 160 mm rear

Wheels

hubs hubs
SHIMANO MT400 / SHIMANO Nexus C7050-5D Di2 5-speed Internal Geared Hub, Disc Center Lock (32 holes)
rims rims
KLS Valor 3 Disc 584x30 (32 holes)
spokes spokes
stainless steel black
tyres tyres
SCHWALBE Super Moto-X Performance 62-584 (27.5"x2.40) SnakeSkin, GreenGuard, ReflectiveLine
thru axle thru axle
SR SUNTOUR 15x100 mm front
fenders
alloy

Cockpit

head parts head parts
1.5" semi-integrated
stem stem
PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 85 mm
handlebar handlebar
KALLOY RiseBar - diam 31.8 mm / width 640 mm
grips grips
KLS Wave 2Density ergonomic
seat post seat post
KALLOY suspension - diam 30.9 mm / length 300 mm (S), 350 mm (M)
saddle saddle
SELLE ROYAL Essenza Relaxed

front light
AXA Compactline 35
rear light
TRELOCK Duo Flat
accessories
alloy carrier, adjustable kickstand, bell
weight weight
26.50 kg (M)

The weight corresponds to the most common model specification in size M. The actual weight of your bike may vary.

Geometria ESTIMA COMP 90 SH 630 Wh

We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
