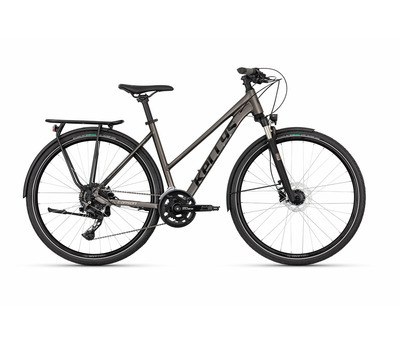

CARSON 90
GRAPHITE GREY
Trekking bike
NewFrame set
frame
KELLYS Tour Profile Mid-Step frame - Aluminium alloy / 1.5" tapered HT, internal routing, integrated kickstand mount
fork
ROCK SHOX Paragon Gold RL (29"), 65 mm, Solo Air / Motion Control / 9mm QR axle
frame size
M / L
Drive
crankset
175 mm (M - XL)
rear derailleur
SHIMANO Cues U6020-10 (direct mount)
front derailleur
SHIMANO Cues U4010-L (34.9 mm)
shifters
SHIMANO Cues SL-U6000-10R Rapidfire Plus
speed
20
cassette sprocket
SHIMANO Linkglide CS-LG300-10 (11-39T)
chain
SHIMANO Linkglide CN-LG500
b.b.parts
SHIMANO BB-UR400
pedals
plastic platform
Brakes
brakes
SHIMANO MT200 Hydraulic Disc
brake levers
SHIMANO BL-MT200
brake rotors
160 mm front / 160 mm rear
Wheels
hubs
SHIMANO Dynamo 3D37 / SHIMANO QC300 Disc Center Lock (32 holes)
rims
KLS Draft 23 Disc 622x23 (32 holes)
spokes
stainless steel
tyres
SCHWALBE Road Cruiser 47-622 (28"x1.75) K-Guard, Green Compound, ReflectiveLine
fenders
plast
Cockpit
head parts
1.5" semi-integrated
stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 60 mm (M), 70 mm (L - XL)
handlebar
alloy RiseBar - diam 31.8 mm / width 640 mm
grips
KLS Wave 2Density ergonomic
seat post
KLS Active - diam 30.9 mm / length 400 mm (M -XL)
saddle
KLS
front light
AXA Compactline 35 Steady
rear light
AXA Slim Steady
accessories
alloy carrier, chainguard, kickstand, bell
weight
15.80 kg (M)
The weight corresponds to the most common model specification in size M. The actual weight of your bike may vary.
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
