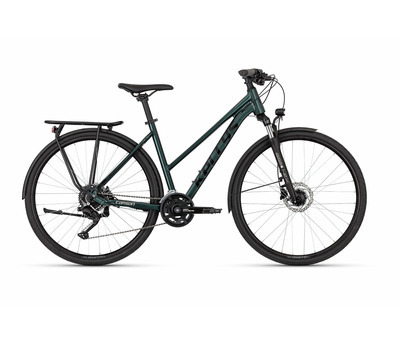

CARSON 50
EMERALD GREEN
Trekking bike
NewFrame set
frame
KELLYS Tour Profile Mid-Step frame - Aluminium alloy / 1.5" tapered HT, internal routing, integrated kickstand mount
fork
SR SUNTOUR NEX DS, 63 mm, coil spring
frame size
M / L
Drive
crankset
SHIMANO Cues U4010-2 (46x30T) - length 170 mm (S), 175 mm (M - XL)
rear derailleur
SHIMANO Cues U3020 (direct mount)
front derailleur
SHIMANO Cues U4010-L (34.9 mm)
shifters
SHIMANO Cues SL-U4010-9R Rapidfire Plus
speed
18
cassette sprocket
SHIMANO Linkglide CS-LG300-9 (11-36T)
chain
SHIMANO Linkglide CN-LG500
b.b.parts
cartridge (120 mm)
pedals
plastic platform
Brakes
brakes
SHIMANO MT200 Hydraulic Disc
brake levers
SHIMANO BL-MT200
brake rotors
160 mm front / 160 mm rear
Wheels
hubs
SHIMANO Dynamo 3D37 / SHIMANO QC300 Disc Center Lock (32 holes)
rims
KLS Draft 23 Disc 622x23 (32 holes)
spokes
steel
tyres
INNOVA 44-622 (700x42C)
fenders
RPZ
Cockpit
head parts
1.5" semi-integrated
stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 60 mm S - M), 70 mm (L - XL)
handlebar
alloy RiseBar - diam 31.8 mm / width 640 mm
grips
KLS Wave 2Density ergonomic
seat post
KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - XL)
saddle
KLS
front light
BÜCHEL Shiny 40 (40 Lux)
rear light
AXA Slim Steady
accessories
alloy carrier, chainguard, kickstand, bell
weight
16.10 kg (M)
The weight corresponds to the most common model specification in size M. The actual weight of your bike may vary.
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
