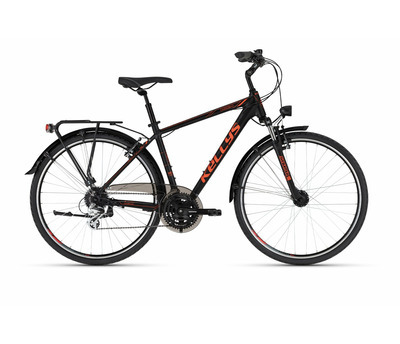

CARSON 40
front light
BÜCHEL Urban Halogen
rear light
BÜCHEL Champs Elysees LED Standlight
accessories
alloy carrier, kickstand, bell
Frame set
frame KELLYS Tour Profile - internal routing, integrated kickstand mount
fork SR SUNTOUR M3010, 50 mm, coil spring (threaded steerer)
frame size S / M / L / XL
Drive
crankset SHIMANO TY301 (48x38x28T) - length 170 mm (S), 175 mm (M - XL)
rear derailleur SHIMANO Altus M310 (direct mount)
front derailleur
SHIMANO TY710 (34.9 mm)
shifters SHIMANO ST-EF500-8 EZ-fire Plus
speed 24
freewheel
SHIMANO CS-HG200-8 (12-32T)
chain KMC Z8 (114 links)
b.b.parts cartridge (120 mm)
pedals plastic
Brakes
brakes APSE V-brake
brake levers SHIMANO ST-EF500-8 EZ-fire Plus
Wheels
hubs SHIMANO Dynamo Nexus C3000 / alloy (32 holes)
rims KLS Draft 622x21 (32 holes / eyelets)
spokes steel
tyres INNOVA 42-622 (700x42C)
fenders
RPZ
Cockpit
head parts semi-integrated (threaded)
stem KALLOY adjustable - diam 25.4 mm / bar bore 25.4 mm / length 90 mm (S), 100 mm (M - XL)
handlebar steel RiseBar - diam 25.4 mm / rise 35 mm / width 630 mm
grips KLS Wave 2Density ergonomic
seat post KALLOY suspension - diam 30.9 mm / length 300 mm (S), 350 mm (M - XL)
saddle KLS CrossLine
