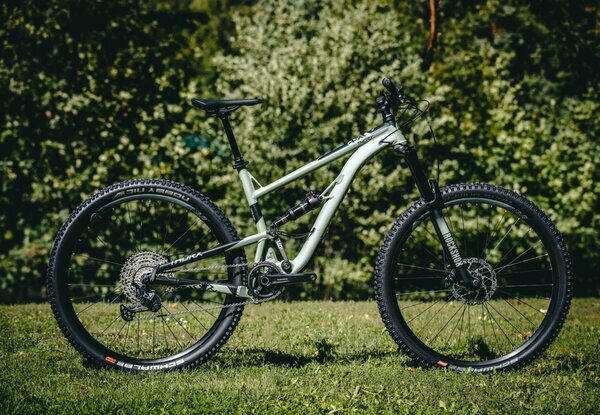

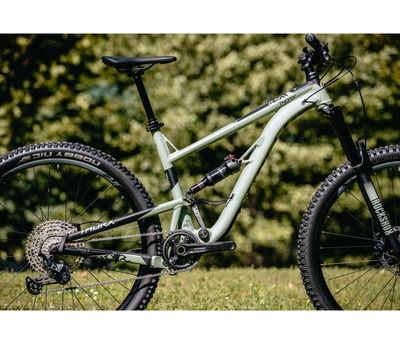

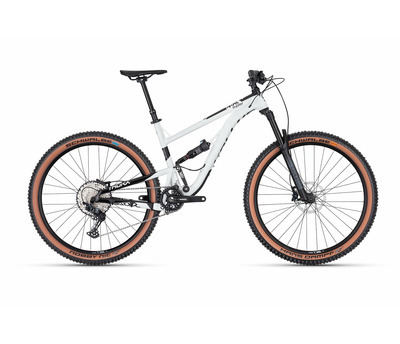

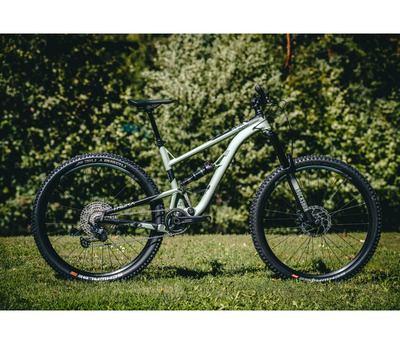

THORX 30 29"
Full-suspension trail bike
Frame set

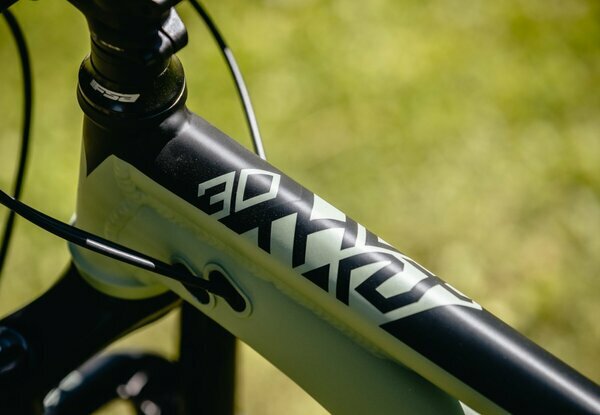

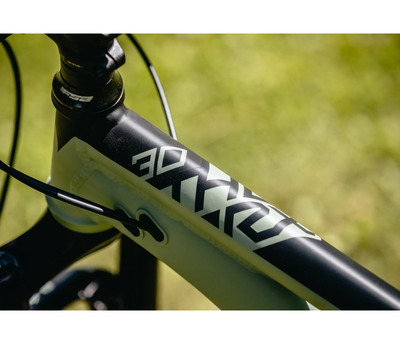

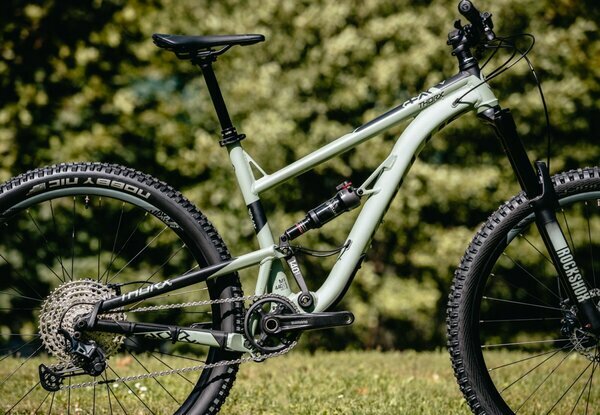

frame KELLYS Allmountain 29 / Think Link® suspension system, 140 mm rear travel, tapered HT, internal routing, 12x148 mm Boost thru axle
fork ROCK SHOX 35 GOLD RL (29) Boost, 150 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle

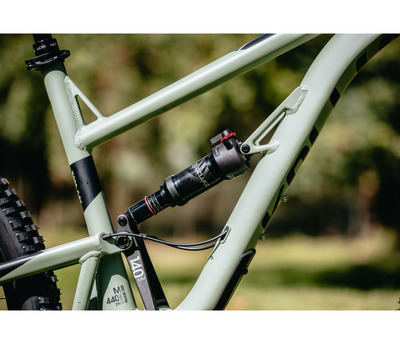

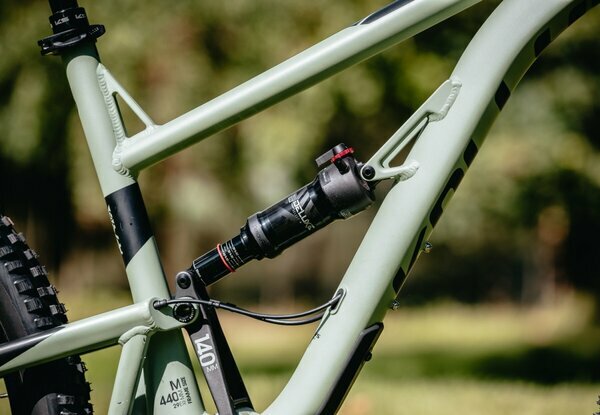

rear shock ROCK SHOX Deluxe Select+ RT, DebonAir / Open-Threshold (210x55 mm)
frame size M / L
Drive
crankset SHIMANO Deore MT510-1 (34T) - length 175 mm
rear derailleur SHIMANO SLX M7100 (direct mount)
front derailleur
chain guide MOZARTT Piano, ISCG 05
shifters SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
speed 12
cassette sprocket SHIMANO CS-M6100-12 (10-51T)
chain SHIMANO CN-M6100 (114 links)
b.b.parts SHIMANO Press-Fit BB71-41A
pedals KLS Master
Brakes
brakes SHIMANO SLX M7100 Hydraulic Disc
brake levers SHIMANO SLX BL-M7100
brake rotors 180 mm front / 180 mm rear
Wheels
hubs SHIMANO Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Valor 2 Disc 622x27 (32 holes)
spokes stainless steel black
tyres SCHWALBE Hans Dampf Evo Super Trail 60-622 (29x2.35) Tubeless Easy, ADDIX Soft, folding, front / SCHWALBE Nobby Nic Evo Super Trail 60-622 (29x2.35) Tubeless Easy, ADDIX Soft, folding, rear
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear

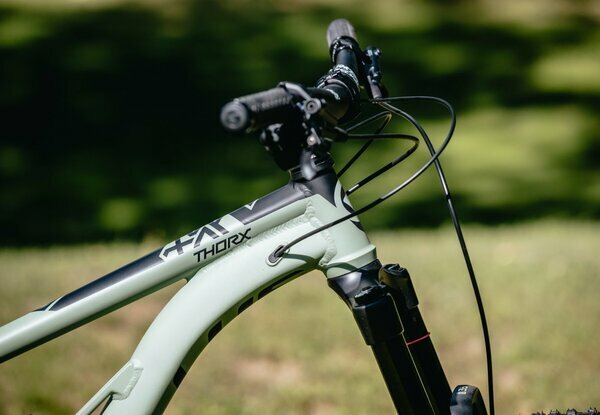

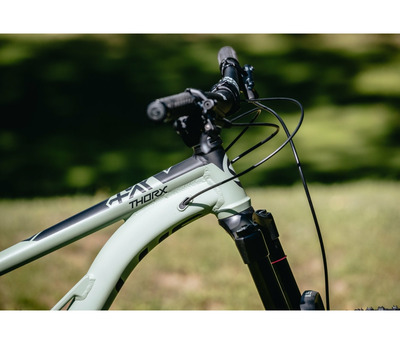

Cockpit
head parts FSA 1.5 integrated
stem RACE FACE Ride 35 - diam 28.6 mm / bar bore 35 mm / 6° / length 50 mm
handlebar RACE FACE Ride 35 RiseBar - diam 35 mm / rise 20 mm / width 760 mm
grips KLS Poison
seat post KS e20-i Remote Telescopic - diam 30.9 mm / length 474 mm, travel 150 mm
saddle fi’zi:k Taiga, S-alloy rails
