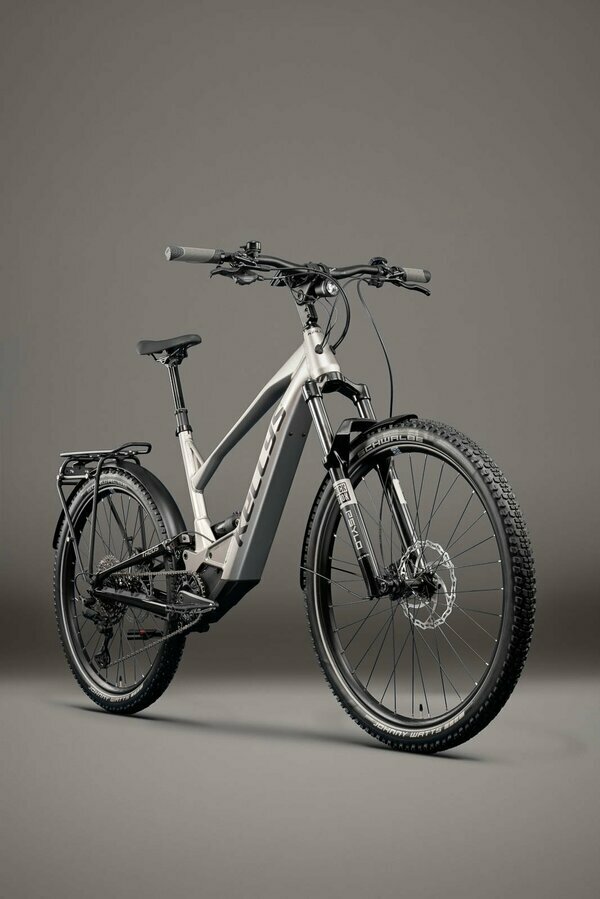

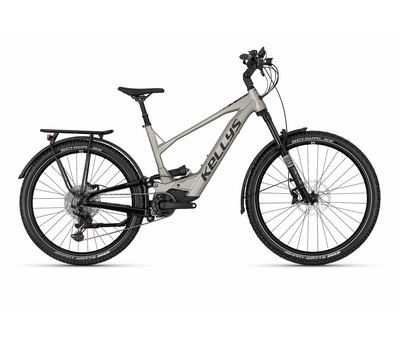

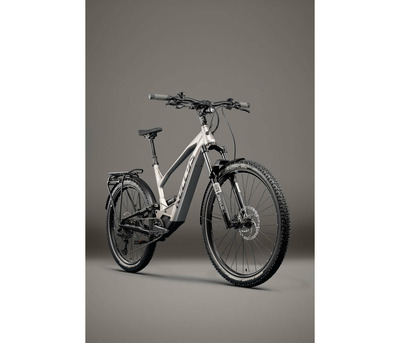

THEOS RSX70 P TITANIUM 29/27.5" 820 Wh
NewFrame set

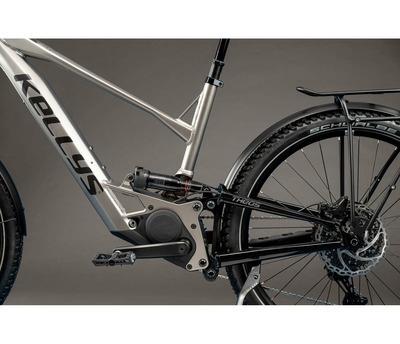

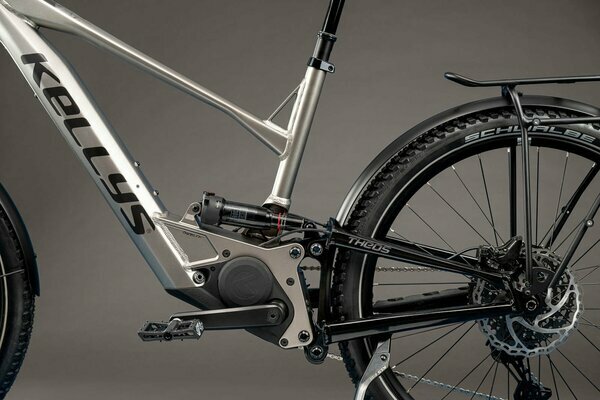

frame KELLYS THEOS RSX-series - Superlight design, advanced robotic welded Al 6061-T6 / Designed & manufactured in EUROPE / Think Link® suspension system, 120 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29 / 27.5"+ wheelset, 12x148 mm Boost thru axle
fork ROCK SHOX Psylo Silver RC (29") Boost, 140 mm, Solo Air / Motion Control / Maxle Stealth 15 mm thru axle

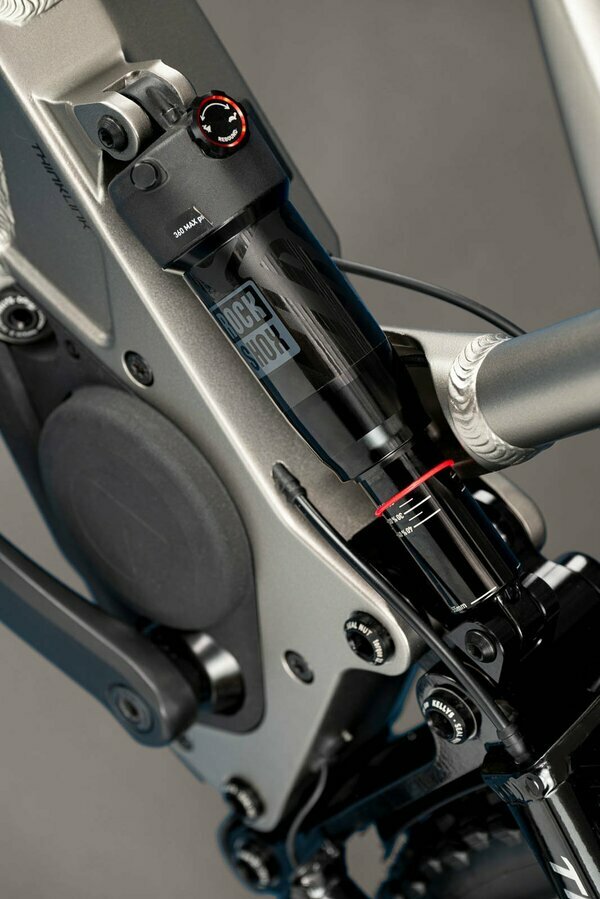

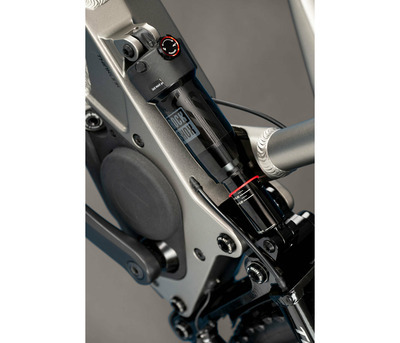

rear shock ROCK SHOX Deluxe Select, DebonAir+ / R damper (210x55 mm)
frame size M / L
Drive
motor PANASONIC GXM AMXXPRO - Compact, High Torque & Low weight drive unit, max torque 105 Nm, weight 2.56 kg
battery KELLYS K2 AMXXPRO CARBON 820 Wh - superhigh energy density 236 Wh/kg, weight 3.48 kg, capacity 23 Ah, co-developed by KELLYS-BMZ

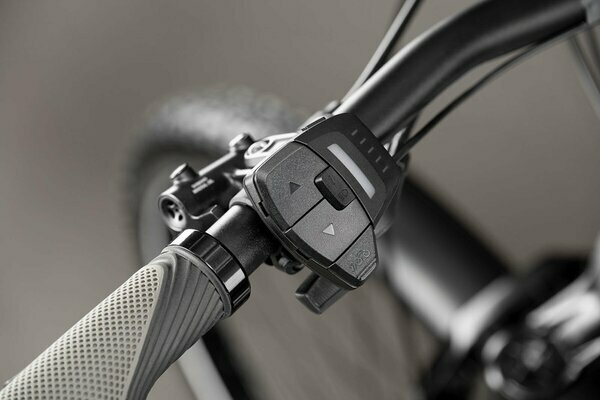

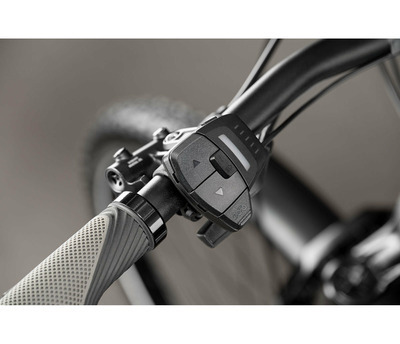

switch unit PANASONIC

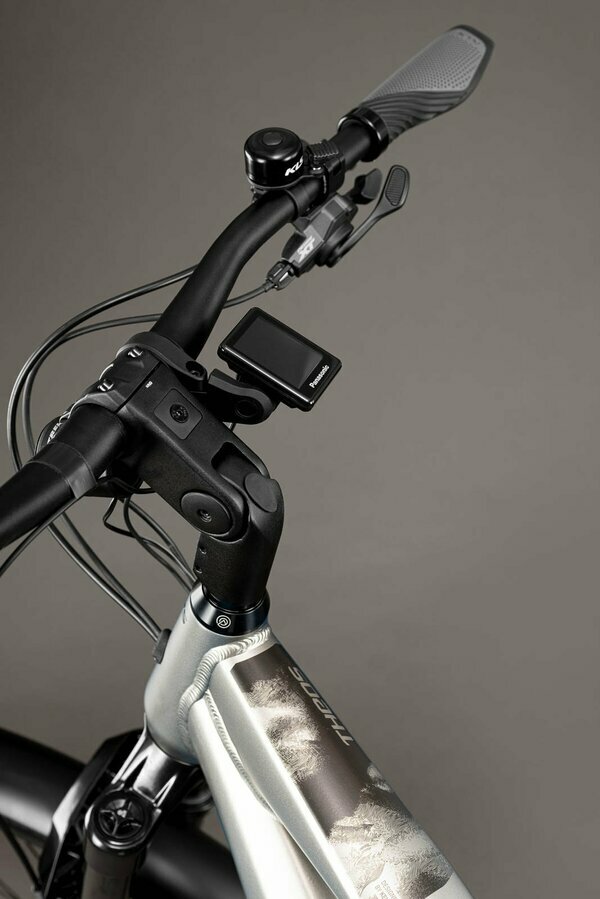

computer display PANASONIC GXM Center Display 501 - Bluetooth® 5.0 navigation, PANASONIC App conectivity
crankset MIRANDA Miranda (34T) - length 170 mm

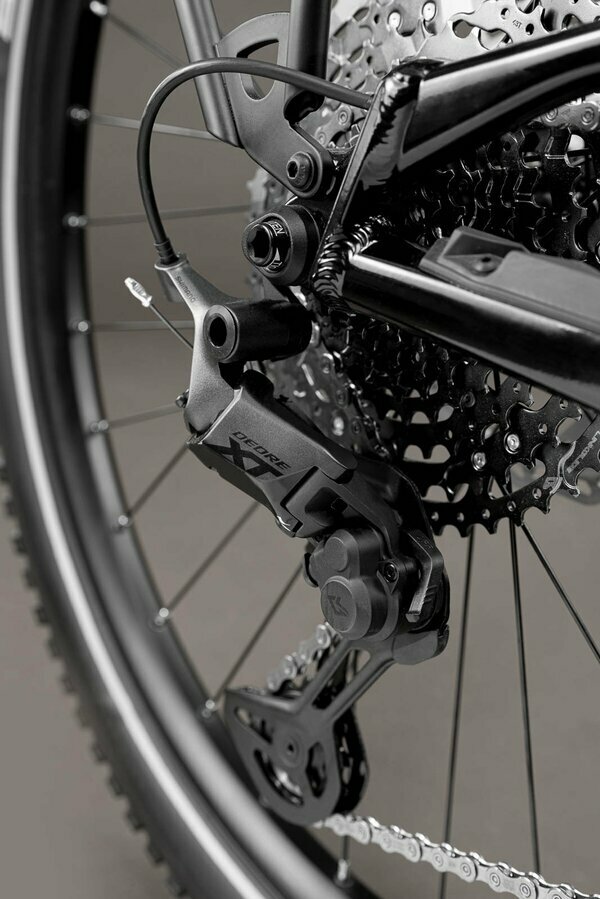

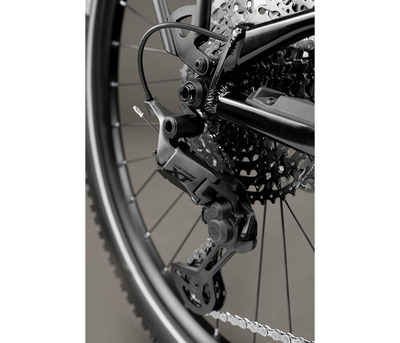

rear derailleur SHIMANO Deore XT Linkglide M8130 (direct mount)
shifters SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
speed 11
cassette sprocket SHIMANO Linkglide CS-LG400-11 (11-50T)
chain SHIMANO Linkglide CN-LG500
pedals plastic
Brakes
brakes SHIMANO MT420 hydraulic disc
brake levers SHIMANO BL-M4100
brake rotors GALFER Fixed Disc Wave® DB034W Center Lock, 203 mm front / 203 mm rear
Wheels
hubs SHIMANO TC500-15-B / TC500-HM-B Disc Center Lock (32 holes)
rims KLS ASESINO 30 Disc 622x30 / 584x30 (32 holes)
spokes stainless steel black
thru axle predná ROCK SHOX Maxle Stealth 15x110 mm
fenders
aluminium alloy
rear tyre SCHWALBE Johny Watts Performance 60-584 (27.5"x2.35) Race Guard, ADDIX, folding
front tyre SCHWALBE Johny Watts Performance 60-622 (29"x2.35) Race Guard, ADDIX, folding

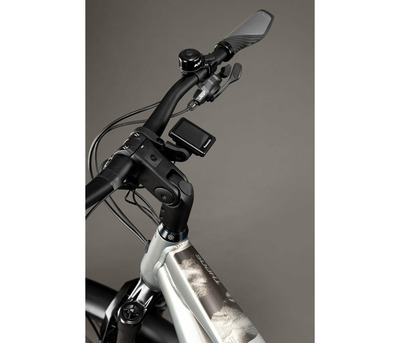

Cockpit
head parts ACROS 1.8" tapered semi-integrated
stem SATORI FASTBACK a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 50 mm
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 760 mm
grips KLS Wave LockOn 2Density ergonomic

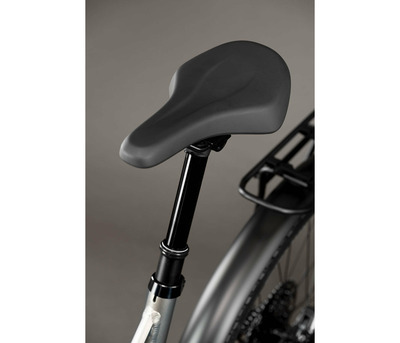

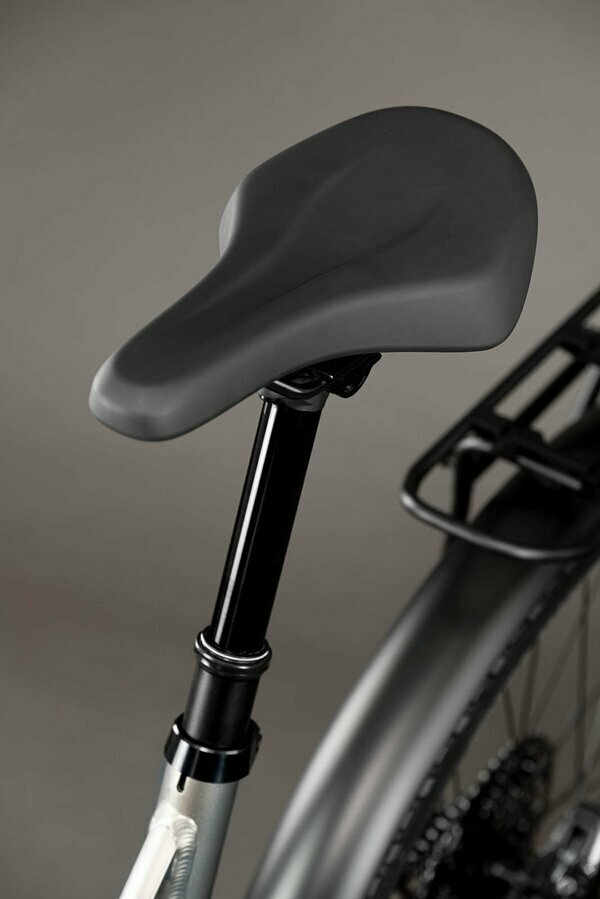

seat post LIMOTEC D1 Remote Telescopic - diam 30.9 mm / length 445 mm, travel 170 mm
saddle SELLE ROYAL SRX+
front light
TRELOCK BIKE-i Airflow 100

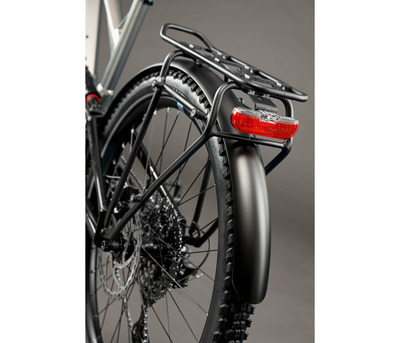

rear light
TRELOCK Duo Flat
accessories

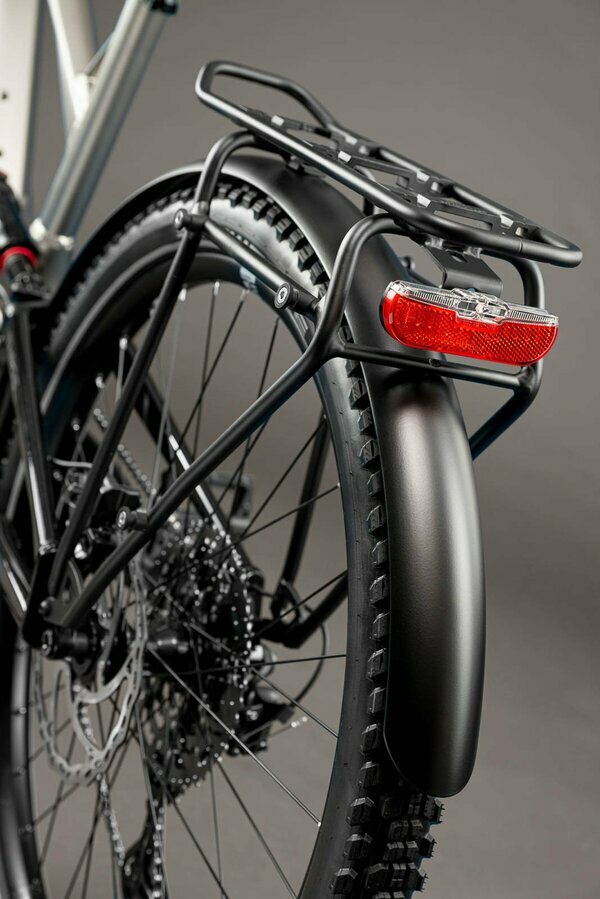

alloy carrier, chainglider, adjustable kickstand, bell
